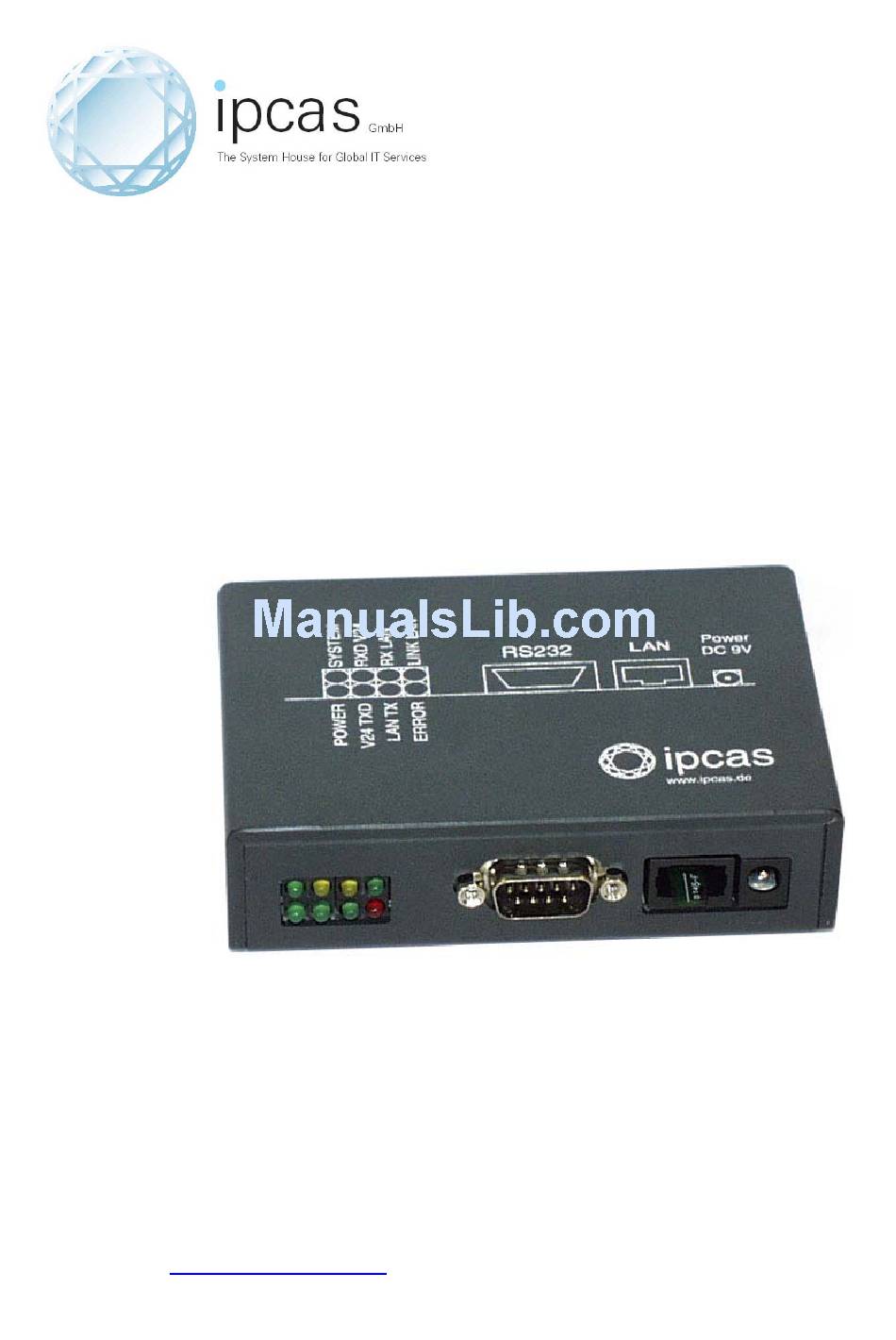

  • Page 1 User Guide ipcas GmbH Wetterkreuz 17 91058 Erlangen Germany Phone: +49 9131 7677 0 Fax:: +49 9131 7677 78 Internet: http://www.ipcas.de Email: info@ipcas.de...

  • Page 2: Important Information

    / insurance company. Note ! IpEther232 is a Class A device. This device can cause interferences to radio communications in residential areas; in such cases the operator may be ordered to carry out and pay for appropriate measures.

  • Page 3: Important Safety Information

    Use a dry cloth only. Do not use any liquid or aerosol cleaning agent. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 3 of 44...
  • Page 4 CAUTION - Current: This points out a possible source of danger. Follow all safety instructions to avoid injury through electrocution. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 4 of 44...

  • Page 5: Table Of Contents

    Contents Page Chapter 1: The Device..............6 1.1 Usage..........................6 1.2 Sockets.......................... 8 Chapter2: Commissioning the ipEther232.Modem ....9 2.1 Commissioning......................9 2.2 Set the IP Address....................... 9 2.3 Configuration.......................11 2.4 ipEtherModem.inf (Driver File)................14 2.6 Serial Configuration ....................17 2.6.1 Configure Password Protection (Serial Devices only)........18 Chapter 3: Control Commands..........19...

  • Page 6: Chapter 1: The Device

    Chapter 1: The Device 1.1 Usage ipEther232.Modem enables you to use serial interfaces via a TCP/IP network. . This allows you to control devices without a network interface over long distances. In addition to the serial interface, the Ethernet modem also has a network interface.
  • Page 7 RS232/485 data via the netw ork. The Ethernet modem not only provides added value to your product, it also adds to the value of your existing equipment for the next generation. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 7 of 44...

  • Page 8: Sockets

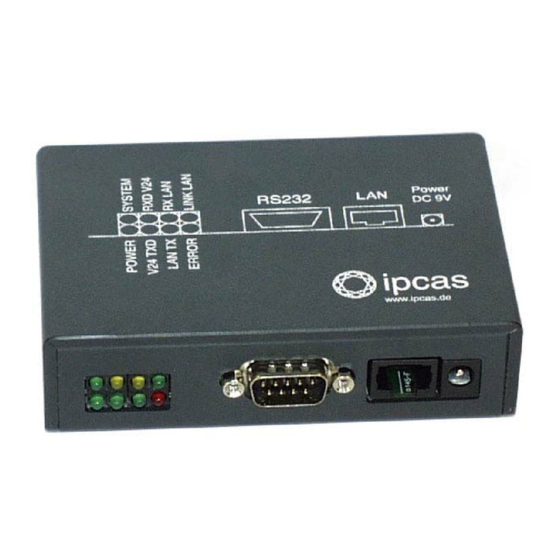

    1.2 Sockets ipEther232.Modem has three sockets: · Ethernet (10BaseT) for a 10/100 Mbit network · RS232 SUB-D 9 · 9V DC power supply A diagram of all connectors and their designation is displayed on the housing. RS232 Ethernet 9V DC...

  • Page 9: Chapter2: Commissioning The Ipether232.Modem

    The IP address can be obtained from the network administrator. It must comply with your network and cannot be assigned twice. In order to set the IP address in your ipEther232, the device must be connected to its own network segment. If need be, connect the device via a "cross over"...
  • Page 10 The device is in use at the moment. The parameters cannot be changed. · “access denied“ Access wa s denied because password authentication has failed. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 10 of 44...

  • Page 11: Configuration

    As mentioned above, the configuration program recognizes all devices in its own network segment. Double-click on an entry to open the detailed five-part dialog. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 11 of 44...
  • Page 12 TCP/IP: This tells you the device ID, i.e. the ipEther232.Modem serial number and this is where the network settings are configured. Modem settings: Here you can define the modem behavior. "Connect to IP": Enter the IP address of the "communication partner" where a connection is to be set up automatically (Leased line).
  • Page 13 The range of “Header length” is from 2 to 14 bytes. Firmw are: This tells you the firmware release. You can update to the most current version. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 13 of 44...

  • Page 14: Ipethermodem.inf (Driver File)

    2.4 ipEtherModem.inf (Driver File) Follow these instructions to install the modem driver for ipEther232.Modem under Window s operating systems: Click on "Control Panel" in the Explorer and then on "Modems" to start the modem installation. Check this option for modem installation.
  • Page 15 Select "Browse"... and enter the location of the .inf driver. Click on "Next" Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 15 of 44...
  • Page 16 Enter the ipEther232.Modem interface. After the successful installation you can adjust the modem to your particular requirements with "Properties" and "Dialing parameter" Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 16 of 44...

  • Page 17: Serial Configuration

    Connect the mains power supply to the device. The "power" light and the flashing "system“ LED indicate that ipEther232 is operational. The ipEther232 is connected to the PC or a serial terminal via a serial 1:1 cable. (Basic settings: baud rate=9600, databits=8, parity=none, stopbits=1) If the terminal tool, e.g.

  • Page 18: Configure Password Protection (Serial Devices Only)

    à AT&W If the master passw ord has been forgotten, the device must be sent in. If the settings are not saved, all changes are lost, once the ipEther232.Modem is disconnected from the power supply. Quit the passw ord configuration mode: Enter ATP to exit the configuration mode.

  • Page 19: Chapter 3: Control Commands

    PC-98 specifications and makes it a mandatory requirement for the PC-99 specifications. With ipEther232.Modem you have purchased a state-of-the-art "Ethernet modem" equipped with the AT command set. A terminal program enables you to enter the AT commands (e.g. "Hyper Terminal": This tool is part of the MS Windows package.

  • Page 20: Quick Reference For At Commands And Registers

    Controls the effect of DTR AT&D Controls modem responses ATE, ATQ, ATV, AT&D Controls serial speed Password protection ATP, ATZ S81, S82, S83 Callback S110 – S119 Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 20 of 44...

  • Page 21: Chapter 4: Definition Of At Commands And Registers

    Note: By entering +++ you can switch to command mode during a modem connection, where AT commands can be executed. This does not break off the connection. The ATO command terminates the command mode. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 21 of 44...
  • Page 22 (special characters are allowed). à ATZ=master password (change master password (default:“000000“)) à ATZ1=password ... ATZ9=password à ATZ1? returns the defined password Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 22 of 44...
  • Page 23 Valid IP addresses AT&V Read out and display current configuration. AT&W Store current configuration in flash. à AT&W0 store configuration à AT&W1 store configuration Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 23 of 44...

  • Page 24: Register Chart

    Valid IP address 0.0.0.0 xxx.xxx.xxx.xxx S118 * Valid IP address 0.0.0.0 xxx.xxx.xxx.xxx S119 * Valid IP address 0.0.0.0 xxx.xxx.xxx.xxx * Registers are not issued with AT&V Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 24 of 44...
  • Page 25 In the S3 register, you can define the Return character. S4 Linefeed Character Range 0..127 decimal Default 10 (Linefeed) Store in permanent memory AT&W The S4 register defines the linefeed character. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 25 of 44...

  • Page 26: S30 Inactive Timer

    Range 7..8 Default Store in permanent memory AT&W In the S33 register, you can set the number of data bits. 7=7 Bits 8=8 Bits Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 26 of 44...

  • Page 27: S34 Stopbits

    If the time span between two received characters (bytes) is greater than the defined Character Timeout, all bytes received so far are sent to the Ethernet. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 27 of 44...

  • Page 28: S37 Bit Options

    It includes “Start character”, “Length” byte, “User Data” and “Check sequence”. The user must select the desired Format and include values for “Fixed frame length” and “Header length” parameters. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 28 of 44...

  • Page 29: S40 Fixed Frame Length

    S83 Incorrect passw ord entries Range 1 Byte Default All incorrect password entries are counted in register 83 (in the RAM only). Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 29 of 44...
  • Page 30 Mask. The Subnet Mask only needs to be entered if the IpEther232.Modem is to connect to another subnetwork. In this case enter the Subnet Mask for the subnetwork where the ipEther is located (e.g. 255.255.255.0). Please note: The IP address also defines the network class.

  • Page 31: Result Code

    NO DIALTONE No Ethernet connection BUSY Dialed line busy ACCESS DENIED Call rejected due to failed password authentication Password Password OK Wrong Password Wrong Password Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 31 of 44...

  • Page 32: Chapter 5: Technical Details

    7 or 8 data bits can be used. The parities "none", "even", "odd", "1" and "0" are supported. 7-bit data does not support the parity "none". Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 32 of 44...

  • Page 33: Specifications

    Optional: 18V - 72V AC / DC w ith polarity protection. 80 mA max. Driver Setup & configuration file for Window s NT4 / 2000 / XP Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 33 of 44...

  • Page 34: Pin Assignment

    RX- (Receive Data) Ethernet connector Name Description RJ 45 Transceive Data+ Transceive Data- Receive Data+ Not used Not used Receive Data- Not used Not used Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 34 of 44...

  • Page 35: Pin Assignment Ipether232.Modem Oem

    5.2.1 Pin Assignment ipEther232.Modem OEM ipEther V2.1 Pin assignment for interfaces: Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 35 of 44...
  • Page 36 RTS / RX- TXD / TX- 10 n/c JP6: Supply voltage input (OEM) Vin+ (8 – 14 VDC) JP7: 5V Supply voltage input (OEM) Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 36 of 44...

  • Page 37: Power Supply Units

    (18-36 V AC / DC or 18-72 V AC / DC with polarity protection) Remove all 4 jumpers (JP6 & JP7) and mount power supply unit with spacer and fastening screw. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 37 of 44...

  • Page 38: Rs232.Modem Module

    This manual refers to the ipEther232.Modem together with the module shown here. No optional settings. 5.2.4 RS232 Module The ipEther232 manual refers to ipEther together with the displayed module, they are mentioned here to complete the list. No optional settings.

  • Page 39: Rs485 Module

    5.2.5 RS485 Module Together with this module, the ipEther232 user guide refers to ipEther with an RS485 interface, they are mentioned here to complete the list. The transmitter of RS485 can either be used in continuous operation, e.g. for point-to-point connections, or it can be triggered by software. This option is enabled by jumpers.

  • Page 40: Measurements

    100,0 Subjec t to modific ations General Tolerances Scale: 1 : 1 5.3 Measurements Date Name Mod.. 15.03.02 P. Felbi nger ipEther232 (OEM V1) Appr.. 1.009 Page Creat. by Created by: Modification Date Name Orig. Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01...
  • Page 41 Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 41 of 44...
  • Page 42 Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 42 of 44...

  • Page 43: Declaration Of Eec Compliance

    Council Guidelines on Harmonizing the Statutory Regulations of the M ember States for Electromagnetic Compatibility (89/336/EEC). Any modifications to ipEther232 not authorized by this company invalidates this declaration. This product was tested and evaluated for electromagnetic compatibility in accordance with the following standards:...

  • Page 44: Glossary

    User Datagram Protocol Contact ipcas GmbH Wetterkreuz 17 Telef ax +49 9131 7677 78 D-91058 Erlangen Internet http://www.ipcas.de Telef on +49 9131 7677 0 E-Mail info@ipcas.de Subject to modific ations Last Update 22.1 0.03 ipcas GmbH ipEther232.Modem V6.01 Page 44 of 44...
