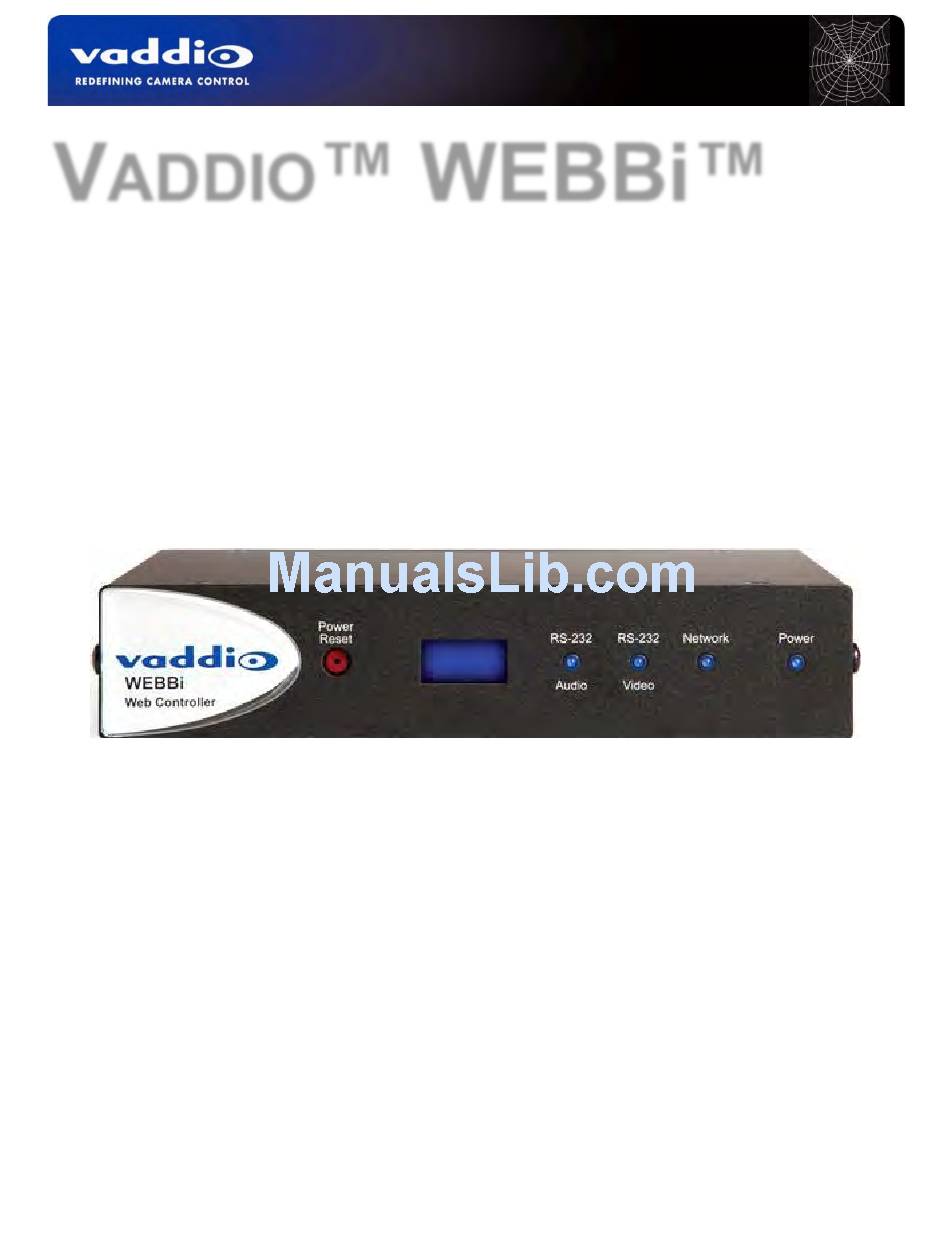

- Page 1 ™ WEBBi™ ADDIO Web based Room Control System for Vaddio EasyUSB™ Tools Part Numbers: 999-8700-000: WEBBi Web Controller (North America) 999-8700-001: WEBBi Web Controller (International) © 2012 Vaddio - All Rights Reserved. Vaddio WEBBi - Document Number 342-0445 Rev A...
- Page 2 WEBBi - Web Controller Inside Front Cover - Blank Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 2 of 24...
-
Page 3: Table Of Contents
WEBBi - Web Controller Table of Contents Overview ..........................................4 Unpacking ..........................................5 WEBBi - Part Number 999-8700-000 for North America ............................ 5 WEBBi - Part Number 999-8700-001 for International ............................5 Equipment Descriptions and Call-outs ..................................6 Diagram: WEBBi Front Panel..................................6 ... -
Page 4: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. Do not connect Ethernet or Power over Ethernet (POE) cables directly to the RJ-45 ports on the device as damage may result. -
Page 5: Unpacking
(one long and one short). The rack ears are mounted in the sides of the WEBBi enclosure using the existing screws included on the device. Rack Kit Part Number 998-6000-004 Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 5 of 24... -
Page 6: Equipment Descriptions And Call-Outs
Vaddio HD-USB PTZ Camera or AutoPresenter. 5) USB: For future use. 6) Network: 10/100 Ethernet port for connection to the Local Area Network. 7) IR Port: For future use. Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 6 of 24... -
Page 7: Connecting The Webbi
Connecting the WEBBi WEBBi System Connection Diagrams The WEBBi control system is for use with Vaddio A/V equipment providing a plug & play connection scheme using standard RJ-45 connectors and CAT-5 cable for the physical connection between devices. Supported devices include the EasyUSB Mixer/Amp, ClearVIEW HD-USB PTZ Camera, and AutoPresenter products. The applications below depict common applications that can be supported with the WEBBi control system. -
Page 8: Webbi With Autopresenter
WEBBi USB 2.0 Audio with UAC Drivers Ethernet Ethernet PC with UC Client and WEBBi control web Page USB 2.0 - Video with UVC Drivers Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 8 of 24... -
Page 9: Installation Instructions
WEBBi will default to a static IP address of 169.254.1.1. Once connected with the Network crossover cable, the installer can use this static IP address in the browser to navigate to the web pages**. Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 9 of 24... -
Page 10: System Configuration And Programming
Today there is a limited amount of UI’s available, but more will be added in future releases. The combinations will be covered later in the manual. Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 10 of 24... -
Page 11: User Button Label Page
AutoPresenter product. Most labels are a maximum of 10 characters, but the Room labels can have a maximum of 32 letters. Diagram: Example User Button Label Page with AutoPresenter Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 11 of 24... -
Page 12: Networking Page
The Networking page is used to configure the WEBBi IP address. It supports either DHCP or Static IP addresses along with a Host name. . Diagram: Networking Page Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 12 of 24... -
Page 13: Security
The admin account will always require a password entry for login to the administrator pages on the WEBBi. The WEBBi ships with a factory default password of….. ‘password’. Factory Default Admin Password: password Diagram: Security Page Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 13 of 24... -
Page 14: Diagnostics
The internal logging function is setup as a revolving FIFO with estimated internal storage capabilities for up to one week. The administrator has the ability to refresh the log or download the Log to a local PC for further analysis by Vaddio Programmers. Diagram: Diagnostics Page ... -
Page 15: System
Step 1: Place all dip switches to the off position (down). Warning: Current settings will be erased. Step 2: Press Reset on the front panel of the WEBBi. Device will reboot to factory settings. Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 15 of 24... -
Page 16: User Operations
Room User Interface (UI) The WEBBi web server includes a graphical user interface page intended for end-user operations of the Vaddio EasyUSB Tools product family. The UI page includes all audio and video controls needed by the user during a meeting or conference call. -
Page 17: Diagram: Ui Web Page For Easyusb And Autopresenter
Host PC. The loudspeaker volume can be modified with the second set of Up/Down buttons. The Volume change applies to the EasyUSB Mixer/Amp loudspeakers and Line Outputs. Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 17 of 24... -
Page 18: Camera Controls
STEP 2: Press ‘Store’ button. A pop-up will be presented. Select the desired preset to store the current camera position. Pop-up will disappear upon selection. STEP 3: Operation complete. Camera will go to stored position when “Preset 4” button is pressed. Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 18 of 24... -
Page 19: Autopresenter Controls
Video Input Select allows the user to switch between up to 5 additional video source inputs connected to the AutoPresenter. If the selected Video Input source is a Vaddio PTZ camera, the PTZ controls will be switched to that source allowing camera controls from the Room UI. -
Page 20: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 21: Technical Specifications
9433 Science Center Drive New Hope, MN 55428 Email: support@vaddio.com Website: www.vaddio.com Toll Free: +1 (800) 572-2011 Phone: +1 (763) 971-4400 Fax: +1 (763) 971-4464 Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 21 of 24... - Page 22 Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance...
-
Page 23: Appendix 1- Connectors Pin Outs
Unused Video Control Port (RS-232) on WEBBi Baud Rate: 9600 kbps Pin # Video Control Port (RS-232) Unused Unused Unused Unused Unused Vaddio WEBBi - Web Controller - Document Number 342-0445 Rev B Page 23 of 24... - Page 24 ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ClearVIEW, WEBBi, EZCamera, EasyTalk, EasyMic, EasyUSB, AutoPresenter and PowerRite are trademarks of Vaddio.
