19" LCD Color Monitor

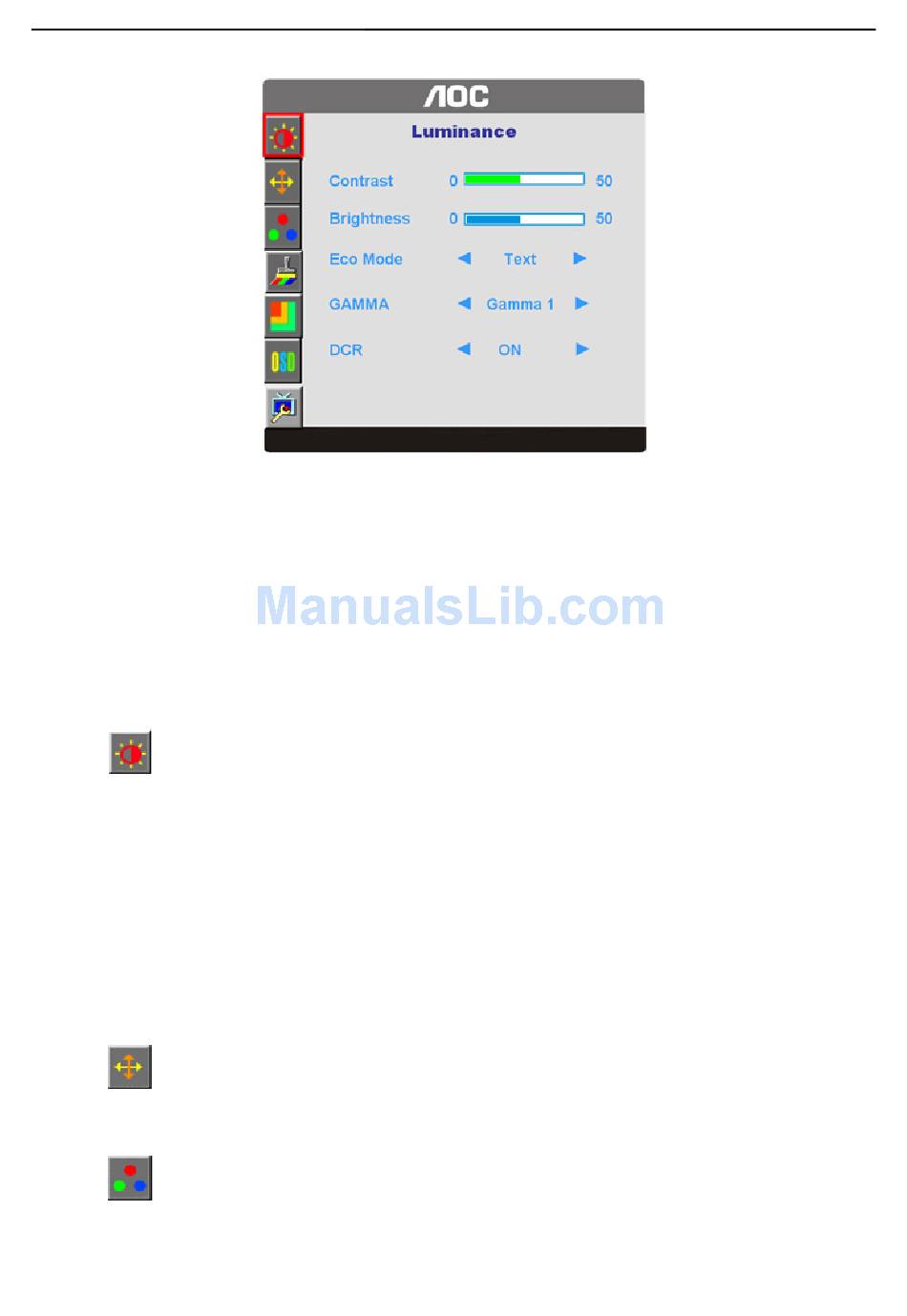

3.3 OSD Menu

OSD Function Introduction
Luminance
Brightness
Contrast
Eco mode
Gamma
DCR
Image Setup
Clock
Focus
H.Position
V.Position
Color Temp.
Warm
Normal
Cool
Adjust Range Description
0-100 Backlight Adjustment
0-100 Contrast from Digital-register
Standard Mode
Standard
Text Mode
Text
Internet Internet Mode
Game Game Mode
Movie Mode
Movie
Sports Sports Mode
Adjust to Gamma 1
Gamma1
Adjust to Gamma 2
Gamma2
Gamma3 Adjust to Gamma 3
Off Disable dynamic contrast ratio
Enable dynamic contrast ratio
On
0-100 Adjust picture Clock to reduce Vertical-Line noise.
0-100 Adjust Picture Phase to reduce Horizontal-Line noise
0-100 Adjust the horizonal position of the picture.
0-100 Adjust the vertical position of the picture
Recall Warm Color Temperature from EEPROM.
Recall Normal Color Temperature from EEPROM.
Recall Cool Color Temperature from EEPROM.
7
AOC 917Sw
