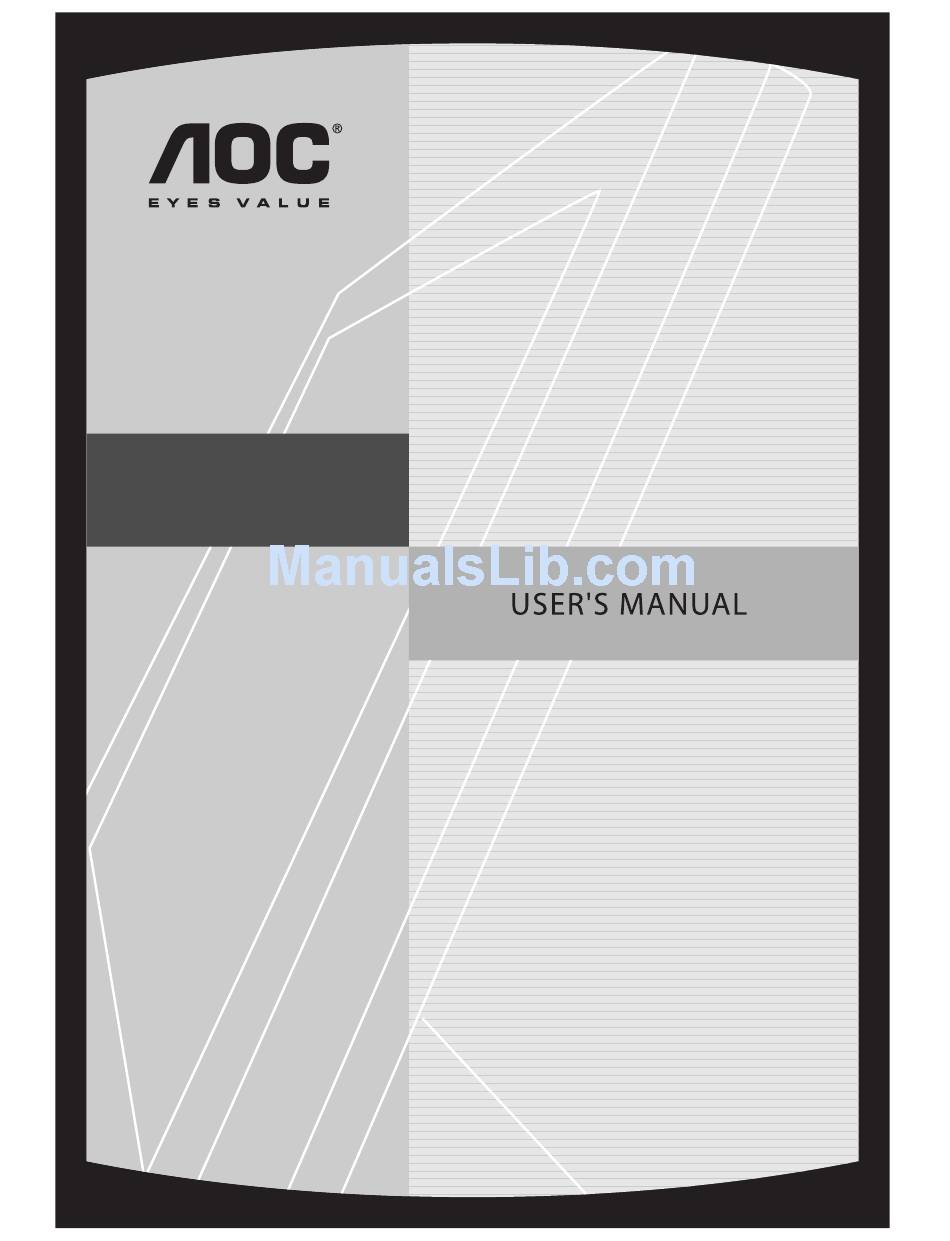

  • Page 1 912Sw-1...

  • Page 2: Operation Instructions

    Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Content Safety Precautions................1 First Setup ..................2 Quick Installation................2-3 Front View of the Product ..............4 Rear View of the Product ..............4 Using On Screen Display (OSD) Functions ........5-7 Supporting Timing Modes ..............8 Technical Information.................9 Care and Maintenance...............10 Troubleshooting .................10...

  • Page 4: Safety Precautions

    Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy.

  • Page 5: First Setup

    First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories : Power cable. D-Sub cable (15 pin). User guide. Quick Start Guide. Warranty Documents. Quick Installation Installing & Removing the Base Install Remove...

  • Page 6: Connecting The Monitor

    Connecting the Monitor 1. Connect Power cord Connect the power cord to a properly grounded AC outlet, then to the monitor. 2. Connect Analog video cable (D-Sub cable) Make sure both monitor and computer are powered OFF. Connect the video cable ( D-Sub cable) to the computer, then to the monitor.

  • Page 7: Front View Of The Product

    Front View of the Product ➊ ➋ ➌ ➍ ➎ ➏ ➊ ➍ OSD TURN ON/OFF CONFIRM SELECTION ➋ ➎ SCROLL DOWN/DECREASE POWER ON/OFF ➌ ➏ SCROLL UP/INCREASE LED INDICATOR Rear View of the Product ➐ ➑ ➐ POWER INPUT ➑...

  • Page 8: Using On Screen Display (Osd) Functions

    Using On Screen Display (OSD) Functions Display main menu. Exit from OSD menu. Auto adjust the image when not in main menu. Confirm the selection. Select the desired item when in OSD menu. When not in OSD menu, it is to immediately activate Contrast/ Brightness.
  • Page 9 Short Cuts Function from the button(s) Auto Adjust : To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen. Contrast : To adjust the foreground white level of screen image. : increase contrast, : decrease contrast.
  • Page 10 Sharpness : To adjust the clarity of a non-WXGA (1440x900) signal with button. Setup Menu : To set up Language Select, Resolution Notice, OSD Position, OSD Time Out. Language Select : To allow users to choose from available languages. Resolution Notice : Resolution Notice is to remind you set the best quality for the image.

  • Page 11: Supporting Timing Modes

    Supporting Timing Modes 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA 800 x 600 @ 75Hz 832 x 624 @ 75Hz...

  • Page 12: Technical Information

    Technical Information Technical Specification LCD Panel 19.05” TFT Power Management Energy Star compliant VESA DPMS compatible < 2 W Displayable Resolution WXGA 1440 x 900 max. Vertical Frequency 75Hz max. Pixel Dimension 0.285 x 0.285 mm LCD Display Color 16.2M Tilt 0°~20°...

  • Page 13: Care And Maintenance

    Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place any heavy things on top of your monitor. Make certain your monitor is installed in a clean and moisture-free area.
  • Page 14 Wrong or abnormal colors If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection. Connect the monitor to another computer.
