Chapter 4 Replacement Procedures

4.10 Touch Pad

Removing the touch pad
The following describes the procedure for removing the touch pad (See Figure 4-10-1 to 4-
10-3).
1. Peel off the glass tape and disconnect the touch pad cable, touch pad board cable
from the connector on the touch pad.
2. Remove the following screws securing the Touch pad plate.
 M2-0.4x2 SUPER THIN HEAD screw
 M2.0x3.0 SUPER THIN HEAD screw
3. Remove the touch pad board and touch pad plate and touch pad lock.
4. Peel off and remove the touch pad from the Top cover assembly.
Satellite L640/L645, Satellite Pro L640/Pro L645 Maintenance Manual (960-Q08)

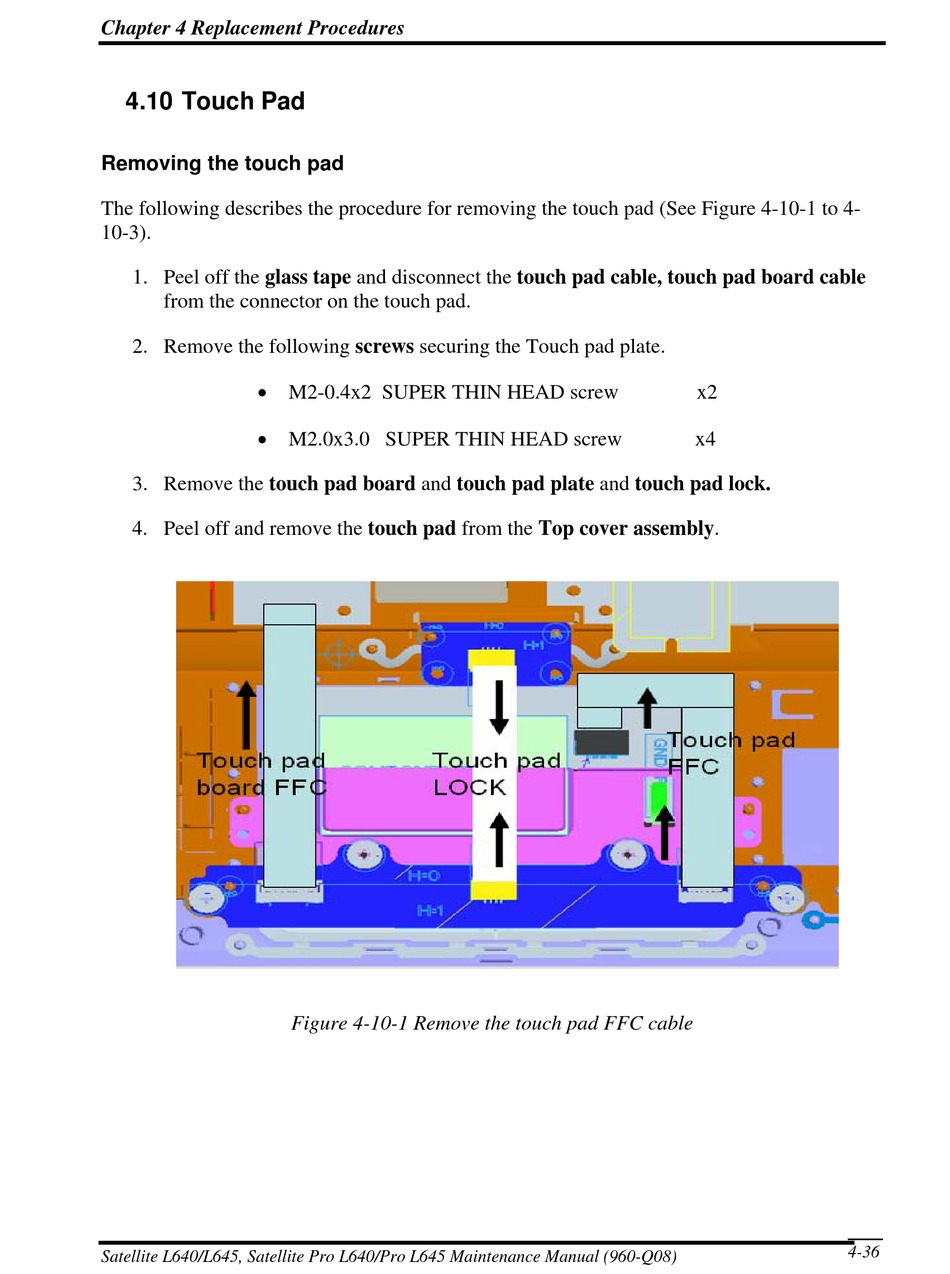

Figure 4-10-1 Remove the touch pad FFC cable
x2
x4
4-36
