800, 1600, 2000 Watt
Inverter Generator Operator's Manual
www.honeywellgenerators.com or 1-855-GEN-INFO

Advertisement

   Also See for Honeywell 800 Watt

   Related Manuals for Honeywell 800 Watt

   Summary of Contents for Honeywell 800 Watt

  • Page 1

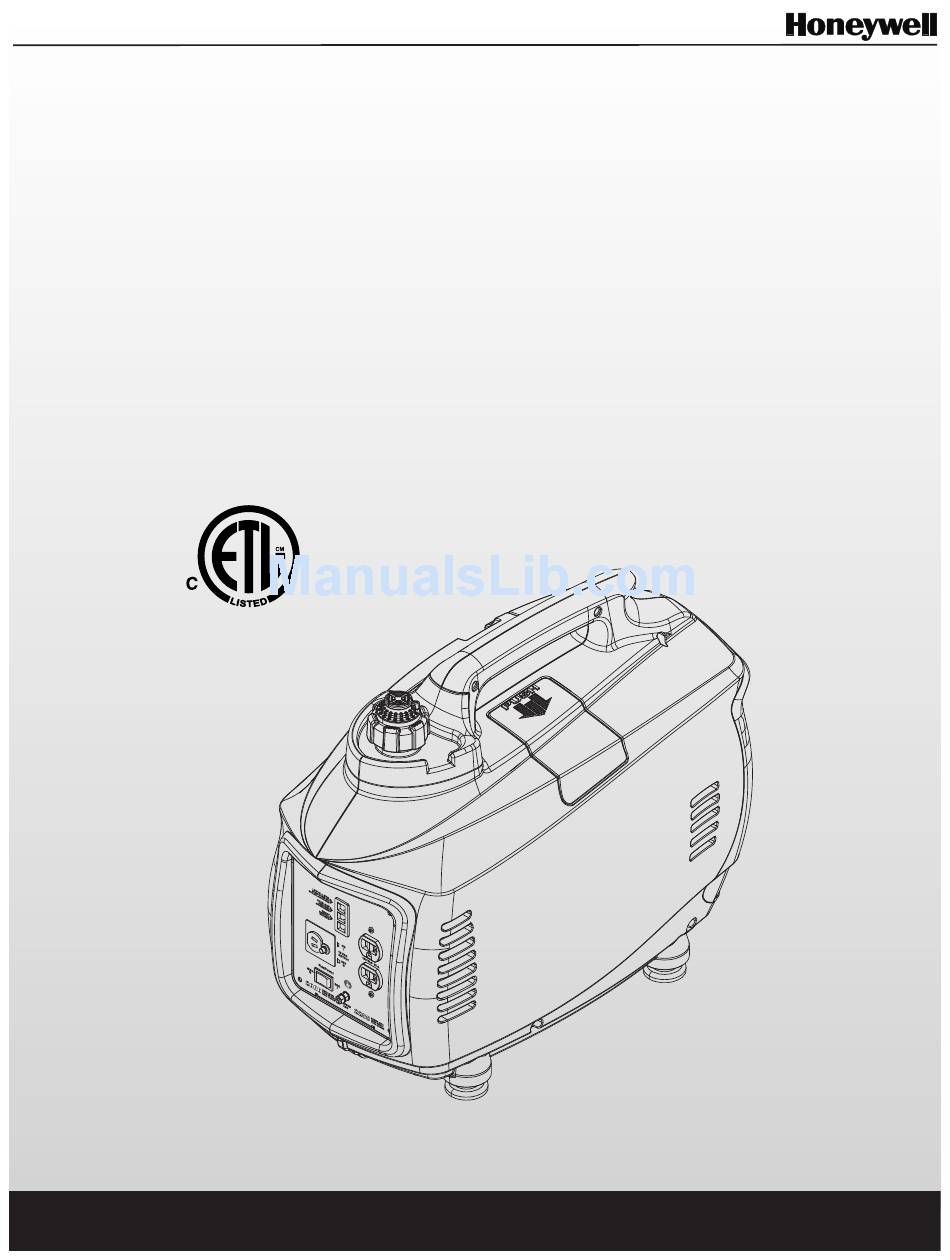

    800, 1600, 2000 Watt Inverter Generator Operator's Manual www.honeywellgenerators.com or 1-855-GEN-INFO...

  • Page 2: Table Of Contents

    General Information ..............4 • Spark Plug Wrench • Screwdriver Specifications ................4 • Battery Charge Cable (1600 and 2000 only) 800 Watt ................4 1600 Watt ................4 2000 Watt ................4 Emissions Information ............4 Unit Identification ..............5 Control Panel..............5 Operation .................6 Pre-Use Check ................6 Starting the Generator ...............7...

  • Page 3: Introduction

    Safety Rules INTRODUCTION This model is a compact, high performance, air-cooled, engine Indicates a hazardous situation or action which, driven generator designed to supply electrical power to operate if not avoided, could result in minor or moderate electrical loads where no utility power is available or in place of injury.

  • Page 4

    Safety Rules SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe operation be copied and posted near the unit's installation site. Safety should be stressed to all operators and potential operators of this equipment. ELECTRICAL HAZARDS • Never use the generator or any of its parts as a step.

  • Page 5: Standards Index

    Safety Rules • Do not operate the generator if connected electrical devices MODEL NO: overheat, if electrical output is lost, if engine or generator sparks or if flames or smoke are observed while unit is running. SERIAL NO: • Keep a fire extinguisher near the generator at all times. Figure 1 - Generator ID Plate STANDARDS INDEX In the absence of pertinent standards, codes, regulations and laws,...

  • Page 6: General Information

    Engine Type ......Single Cylinder, 4-Stroke 800 WATT Engine Size ........127cc Starter Type .

  • Page 7: Unit Identification

    13. Starter Rope: Pull rope for starting engine. (floating ground). 21. 120 VAC Receptacles: Two (2) receptacles for connecting Figure 2 - Unit Identification electrical devices. NOTE: Do not exceed the rated output of the generator. Figure 3 - 800 Watt Control Panel...

  • Page 8: Operation

    Operation Figure 3 - 1,600 & 2,000 Watt Control Panel The manufacturer recommends installing a battery operated carbon monoxide alarm indoors, according to the manufacturers instructions. NEVER use in the home, or in partly enclosed areas such as garages, campers or trailers. ONLY use outdoors and far from open windows, doors, vents.

  • Page 9: Starting The Generator

    Operation STARTING THE GENERATOR Figure 6 - Adjust Choke Once the fuel and oil levels have been checked and it has been verified there are no electrical devices connected, the generator may be started. Turn the EcoMode Switch OFF (O). 1.

  • Page 10: Using The Ecomode Switch

    Operation  Hand Drill........250 to 1100 Storage batteries give off explosive hydrogen gas while recharging.

  • Page 11: Low Oil Level Shutdown

    Operation LOW OIL LEVEL SHUTDOWN Figure 8 - Fuel Tank Cap This generator is equipped with a low oil level shut down. If the oil level in the engine crankcase drops below a pre-determined level, FUEL the engine will stop automatically and the “LOW OIL LEVEL” LED TANK will light up.

  • Page 12: To Add Engine Oil To The Crankcase

    Maintenance TO ADD ENGINE OIL TO THE CRANKCASE Check the cleanliness of the generator frequently and clean when dust, dirt, oil, moisture or other foreign substances are visible on 1. Place the unit on a firm, level surface. its exterior surface. 2.

  • Page 13: Engine Maintenance

    Maintenance ENGINE MAINTENANCE NOTE: Change the oil only when the fuel tank is low Only work on a generator that has cooled completely. or nearly empty. Tipping the generator with a full fuel tank may cause fuel leakage. Inspect the oil level and air filter condition each time you are going 2.

  • Page 14: Changing The Spark Plug

    Maintenance CHANGING THE SPARK PLUG If the generator is going to be stored for more than six (6) months, the generator should be prepared as follows: Replace the spark plug each year, regardless of how many hours 1. Remove all gasoline from the fuel tank. the generator has been run.

  • Page 15: Troubleshooting

    Troubleshooting TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTIVE ACTION Engine won't start. 1. No fuel in tank. 1. Add fuel to tank. 2. Fuel valve turned off. 2. Turn fuel valve on. 3. Defective spark plug. 3. Replace spark plug. 4. Plugged fuel filter. 4.

  • Page 16: Notes

    Notes...

  • Page 17

    Notes...

  • Page 18: Warranty

    Warranty FEDERAL EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS The United States Environmental Protection Agency (EPA) and Generac Power Systems, Inc. (Generac) are pleased to explain the Emission Control System warranty on your new 2008 and later equipment. New equipment that use small spark-ignited engines must be designed, built, and equipped to meet stringent anti-smog standards for the federal government.

  • Page 19: Emission Control System Warranty

    Warranty EMISSION CONTROL SYSTEM WARRANTY Emission Control System Warranty (ECS warranty) for equipment using small spark-ignited engines: (a) Applicability: This warranty shall apply to equipment that uses small off-road engines. The ECS Warranty period shall begin on the date the new equipment is purchased by/delivered to its original, end-use purchaser/owner and shall continue for 24 consecutive months thereafter.

  • Page 20

    HONEYWELL PORTABLE INVERTER GENERATORS For a period of two (2) years from the date of original sale, Generac Power Systems, Inc. (Generac) warrants its Honeywell portable inverter generators will be free from defects in materials and workmanship for the items and period set forth below. Generac will, at its option, repair or replace any part which, upon examination, inspection and testing by Generac or a Generac/Honeywell Authorized Warranty Service Dealer, is found to be defective.
