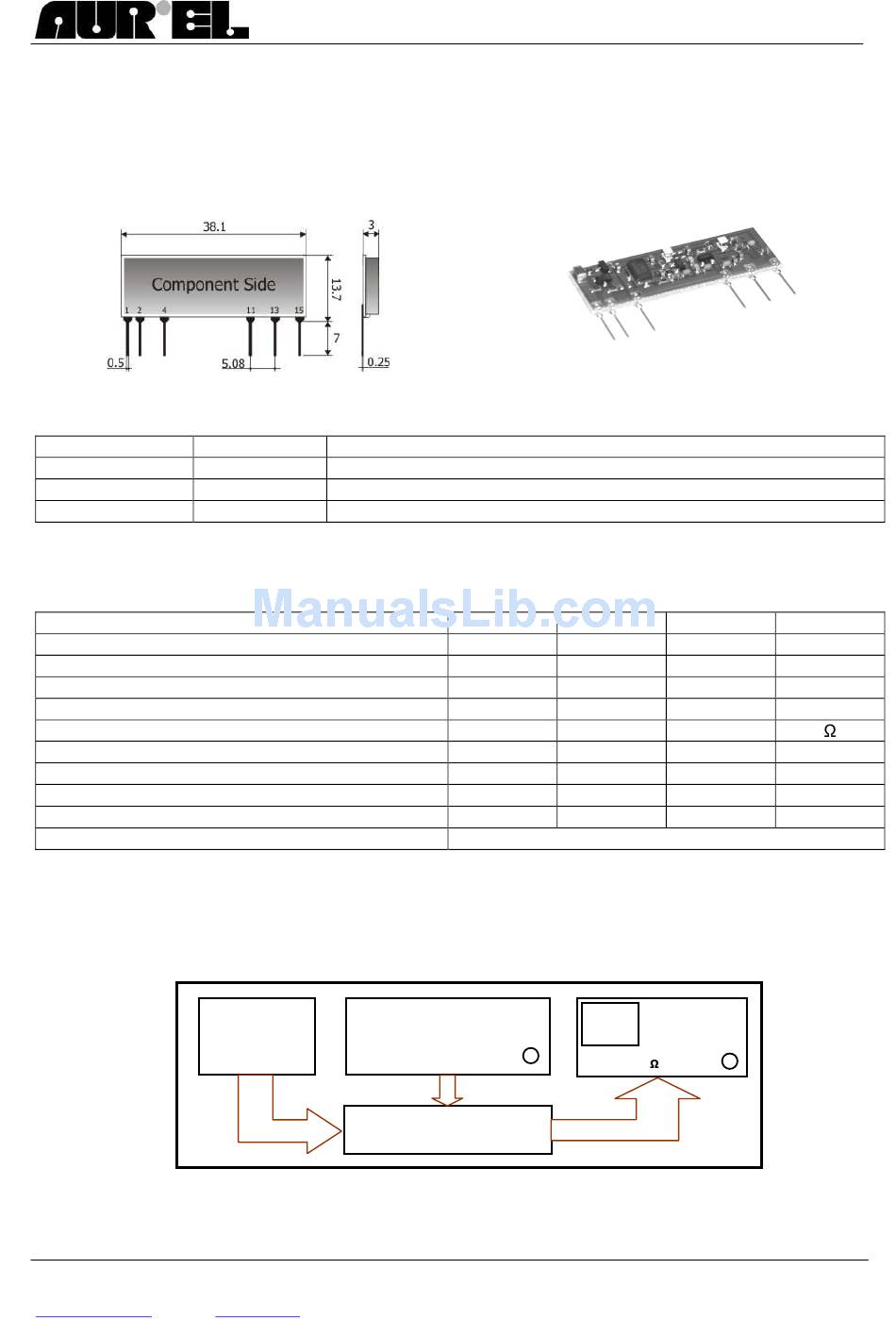

AUREL TX-8LAVSA05 Instruction Manual

TX-8LAVSA05 Transmitter
SAW Transmitter module with external antenna, for applications with ON-OFF modulation, with the digital
data of an RF carrier centred on 868.3 MHz. The power supply voltage ranges from 2.7 to 5V, typical 3V.
Pin-out
Connections
Pin 1-4-13 Ground
Pin 2 Input Mod.
Pin 11 RF Output
Pin 15 +V
Technical features [ETS 300 220]
Description
Working frequency centre
Voltage supply (Vs)
Absorbed Current
RF output power (E.R.P.)
Output impedance pin 11
Modulation Frequency
Input logic level
Operating temperature
Working temperature [ETS 300 220]
Dimensions
The technical features have been obtained by applying the following testing system:
Fig.1
Technical features are subject to change without notice. AUR°EL S.p.A does not feel responsible for any damage caused by the device's misuse.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +390546941124 – Fax: +390546941660
http://www.aurel.it - email:
Connected to external ground plane [see Fig. 2]
Data Input [0 to Vs]
RF Output with 50 Ohm typical impedance
Connection to the positive pole of supply [+2.7 to 5V]
Square wave generator:
+3V dc
3 KHz frequency
Power
supplier
aurel@aurel.it
Min
2.7
20
+4
0
-20
-20
0÷ ÷ ÷ ÷ 5V Out Level
Pin 2
TX-8LAVSA05
Pin 11
TX-8LAVSA05
Instruction Manual
1
Typical Max
868.3
3 5
25 50
+5 +7
50
3
Vs
+80
+55
38.1 x 13.7 x 3 mm
Spectrum
analyzer
RF 50 Input
50 Ω Ω Ω Ω coaxial
cable
connection
Rev. B, 05-03-2010
