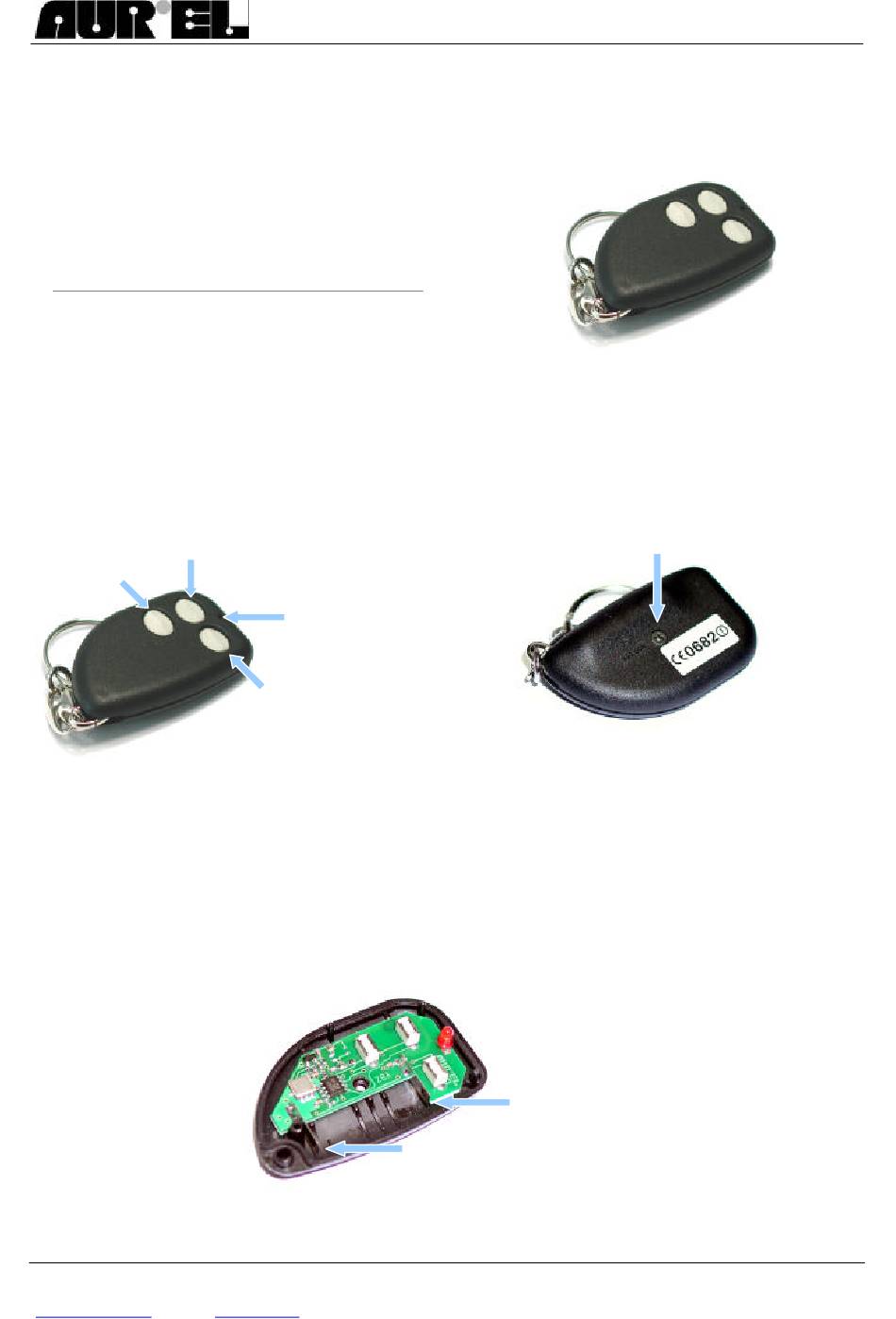

AUREL TX2-HCS-433 User Manual

RF SAW Transmitter with
Small dimension hand-held RF transmitter with HCS301 rolling code encoder.

Available models

TX1-HCS-433: 1 p/button pocket transmitter
TX2-HCS-433: 2 p/buttons pocket transmitter
TX3-HCS-433: 3 p/buttons pocket transmitter
Key ring: optional

How to use

By pressing and releasing one of the available push buttons (according to model) a code transmission shall
take place, through the related channel.
Ch 1
p/button
Ch 3
p/button
Mod. TX3-HCS-433

Battery replacement

When the LED light emission is feeble, the battery has to be replaced. Remove then the screw at the back
of the radio transmitter and carefully open the plastic shell; discard the old battery and fit the new one
(mod. V23A, 12 V) paying attention not to invert the polarity. Set back the transmitter cover with care in
order not to damage the integrated circuit.
Do not waste the old battery in the ambient but place it in the specially provided containers in order to
facilitate its disposal.
Variazioni senza preavviso delle presenti informazioni non implicano responsabilità da parte AUREL. L'acquirente assume ogni responsabilità derivante dall'uso del prodotto.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +390546941124 – Fa x: +390546941660
http://www.aurel.it - email:
TX1-HCS-433 TX2-HCS-433 TX3-HCS-433
Data transmission
led
Ch 2
p/button
aurel@aurel.it
Encoder
HCS301
Positive pole [+]
Negative pole [-]
User Manual
Back shell
tightening screw
TX back view
Rev. A, 16-01-2001
Pag 1 of 3
