Instruction Manual TX1-HCS-433 TX2-HCS-433 TX3-HCS-433
Transmitters RF SAW (1–3 channels) with Encoder HCS301

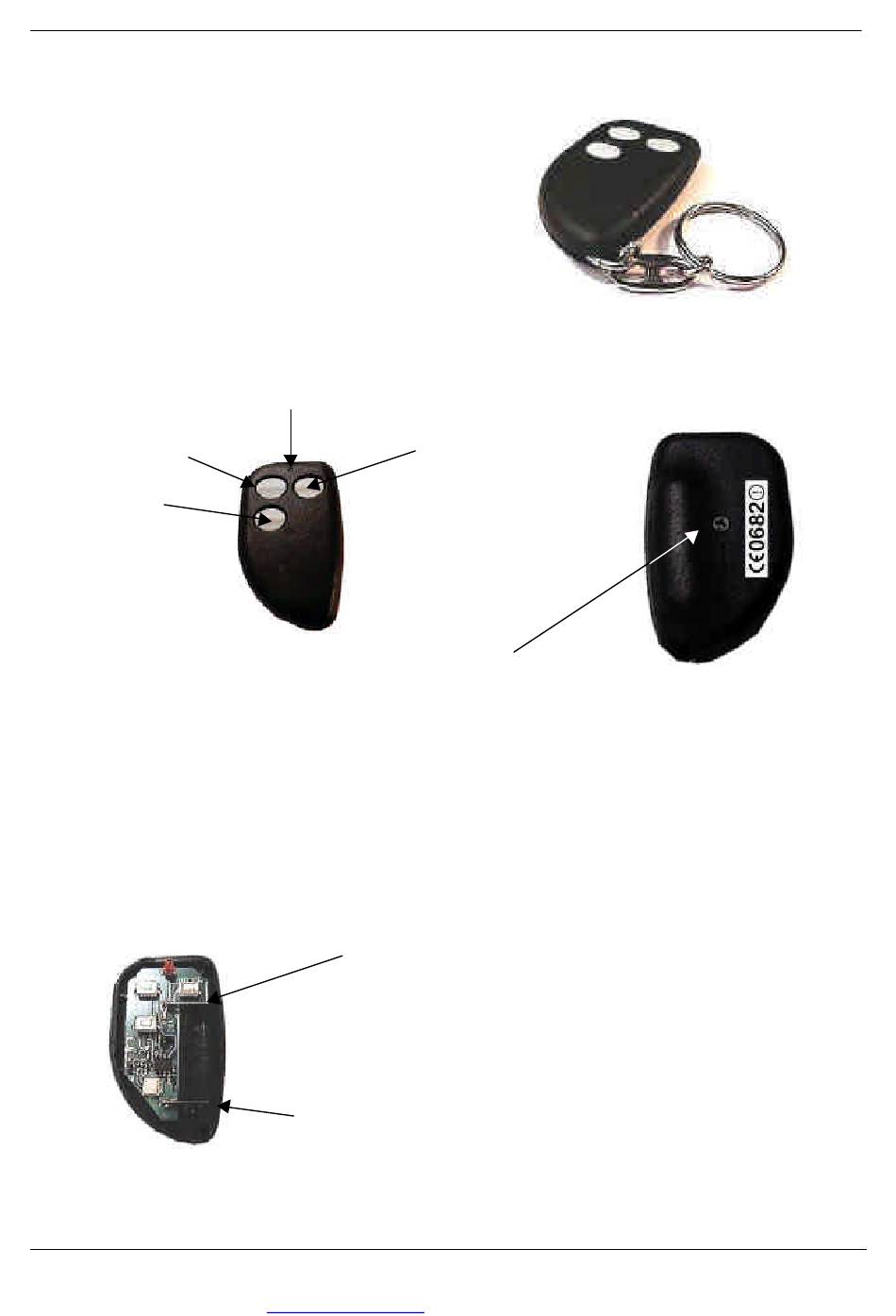

Available models

TX1-HCS-433: 1 p/button pocket transmitter

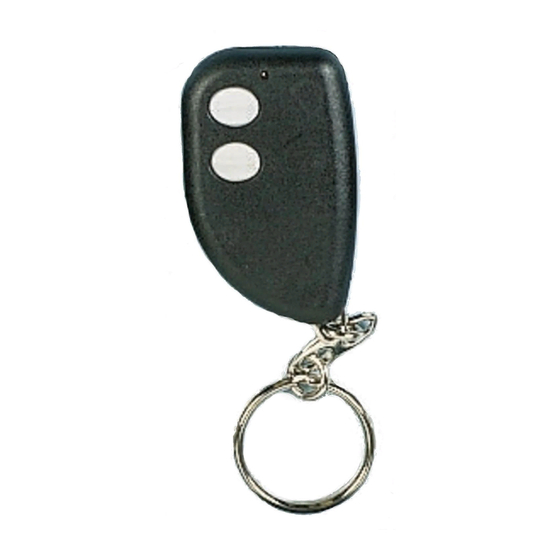

TX2-HCS-433: 2 p/buttons pocket transmitter
TX3-HCS-433: 3 p/buttons pocket transmitter
The key ring is optional

How to use

By pressing and releasing one of the available push buttons (according to model) a code transmission shall
take place, through the related channel.
Data transmission led
Channel 1 p/button
Channel 3 p/button

Battery replacement

When the LED light emission is feeble, the battery has to be replaced. Remove then the screw at the back
of the radio transmitter and carefully open the plastic shell; discard the old battery and fit the new one
(mod. V23A, 12 V) paying attention not to invert the polarity. Set back the transmitter cover with care in
order not to damage the integrated circuit.
Do not waste the old battery in the ambient but place it in the specially provided containers in order to
facilitate its disposal.
TX-123-HCS_uk.pdf
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) - ITALY
Channel 2 p/button
TX3-HCS-433 Model
Positive pole (+)
Negative pole (-)
Tel.: +390546941124 – Fax: +390546941660
http://www.aurel.it
Back shell tightening
screw
- email: aurel@aurel.it
Transmitter back view
