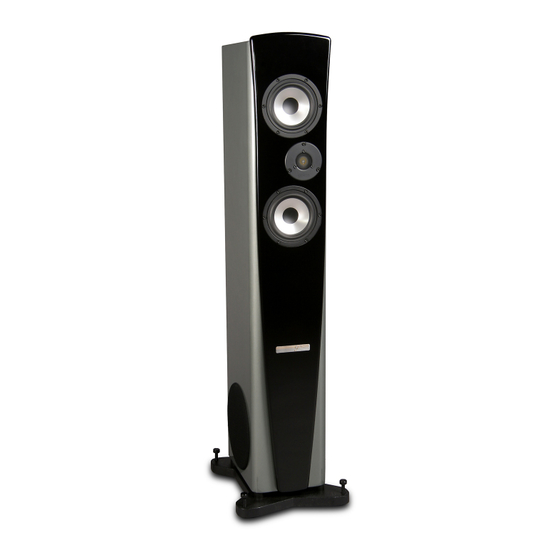

Genesis G7 Owners Manual And Set-Up Manual

7.2floor-standing loudspeaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Seven

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genesis G7

Summary of Contents for Genesis G7

  • Page 1 Seven...

  • Page 2: Read This First

    All this results in a very heavy object for its size. We always recommend a minimum of two people to unpack, move around, and set up the Genesis 7.2f. Your speakers will come wrapped in a fabric “sock” inside a double- corrugated cardboard carton.

  • Page 3: Table Of Contents

     Owners Manual and Set-up Guide: Genesis 7.2 floor-standing loudspeaker Contents A QUICK START SET-UP GUIDE NPACKING LACEMENT ONNECTIONS DJUSTMENTS SETTING UP AS STEREO PAIR OSITIONING OUDSPEAKER ONTROLS 2.2.1 T WEETER ONTROL 2.2.2 B 2.2.3 T WEETER EFEAT...
  • Page 4 G7.2f that you now own is an evolutionary improvement over its predecessor. The G7.2f is designed to be as flexible as possible. It can be used as a pair of audiophile stereo loudspeakers or, in a multi-channel system. It features the world’s first solid titanium cone mid-woofer from the G7.1f improved for the G7.2f with even lower moving-...

  • Page 5: Quick Start Set-Up Guide

     1 A Quick Start Set-up Guide Now that you have your new Genesis 7f loudspeaker, we realize that you can’t wait to hook it up and start playing! However, please read this quick set-up guide (even if your dealer is setting it up for you) before you proceed.

  • Page 6: C Onnections

    absolute fidelity  You will want to sit eight to twelve feet (2.5 to 3.5 metres) away from the speakers. When sitting further away, you should place the speakers slightly further apart. When sitting nearer the speakers, move the speakers closer together or toe them in by a tiny bit – 1 to 3 degrees and no more.
  • Page 7 absolute fidelity  If you play a lot of commercially mixed pop or rock recordings, you may also find that a lot of these have a rising response in the bass because they are not expected to be played on audiophile loudspeakers with a flat frequency response.

  • Page 8: Setting Up As Stereo Pair

    absolute fidelity  2 Setting up as Stereo Pair 2.1 Positioning Used as a stereo pair, the G7f should be placed at least 18 inches (0.45m) into the room as measured from the front wall (the wall you look at as you are seated listening to the speakers), to the back of the speaker.

  • Page 9: T Weeter D Efeat

    8-inch woofer needs in order to give a snappy and dynamic response. We do this in order to give the speaker the speed and dynamics that is the hallmark of the “Genesis sound”. Just like a sports car with 800 horsepower, if indiscriminately used, having so much power also means that you could do damage to yourself and your neighbors.

  • Page 10: Imaging And

    Your Genesis loudspeakers should sound great straight out of the box. If you don’t like the sound, several hundred hours of breaking-in will not...
  • Page 11 absolute fidelity  Conversely, if the image is too small, move the speakers apart. The speakers should be no more than twelve feet apart. Repeat this process until you have it right. The wider apart you have the speakers, relative to your seating position, the more you will have to toe the speakers in.

  • Page 12: R Oom T Reatment

    A Genesis loudspeaker system correctly set up, can and should provide a soundstage that is wall-to-wall, with pinpoint focus; the speakers disappearing completely on a recording containing such information.

  • Page 13: M Astering The R Efinements Of The System

    absolute fidelity  By these terms, we mean the amount of reflection of sound. A typical wall of glass, brick, cement or drywall material is a reflective surface. A heavily curtained or sound-proofed wall would be considered a "dead wall" or a non-reflective wall. A normal thin curtain across a window causes only a small amount of absorption.
  • Page 14 Genesis website. If you have any questions, feel free to contact us at Genesis. Our website is the first place you can look to for more information, but you are welcome to either send us an email, or just give us a call!

  • Page 15: Setting Up: Multi-Channel

    3.3 The Center Channel The Genesis 7.2c (convertible) plus either the ServoSub™ 4/8 would be the perfect partnering center channel to the G7f as the center channel will then have the same driver complement and the same “voice”.

  • Page 16: The Technology Used

    What a lot of people don’t realize is that the room is as big (if not bigger), a part of their music system as are the loudspeakers. At Genesis, we strive to get the loudspeakers and the room to work well together and hence, design loudspeakers that interact with the room and have enough of adjustment to make them work with most rooms in the world.
  • Page 17 Typical non- servo woofer systems have distortion levels that exceed 10% at even moderate levels. The Genesis servo bass system reduces this distortion to below one percent at almost any output level within its operating range.

  • Page 18: T He T Ransducers

    0.0005 inch thick. The entire radiating structure is a 3mm-wide ring that has less mass than the air in front of it! The latest version of the Genesis ring-ribbon tweeter will accurately reproduce frequencies beyond 40 kHz with a true point-source dispersion pattern.

  • Page 19: A Luminium - Cone W Oofer

    Hence, indiscriminately damping music as well as cone ringing and distortion. Without damping, Genesis loudspeakers are able to play softly, and yet convey all the richness of the music, without losing any detail when you want to listen quietly in the dead of the night when the rest of the family are asleep.

  • Page 20: Crossover

    Each crossover is designed by computer modelling plus years of knowledge and experience. The inductors are custom designed and made for Genesis with OFC copper windings. The capacitors used are also custom made for Genesis, using high-quality polypropylene-film and tin-foil.

  • Page 21: V Ibration - Free C Abinet

    absolute fidelity  vibrations do not affect the imaging and soundstage of the loudspeaker. The spikes rigidly couple the suspension system to the floor. If you have hardwood floors and do not want to make holes in the wood, use a copper penny (instead of expensive “spike cups”) under the spike.
  • Page 22  System and the Silent Running Voltage Supply technologies developed for the Genesis Reference Amplifiers to deliver quick, clean power to the servo-control preamplifier and Class D bass power amplifier. One side benefit of this powered woofer system is that almost any sized amplifier can be used to drive the G7f.

  • Page 23: Specifications

     HF Transducers: Two Genesis 1” Ring-Ribbon Tweeters (front & rear)  Mid/LF Transducers: Two Genesis 5.5” titanium Cone  Servo-Subwoofer Transducer: One Genesis 8” aluminium cone  Controls: Front Tweeter Level Rear Tweeter Defeat Bass Gain  Built-in Bass Amplification: 180W Class D ...
  • Page 24 The Genesis Loudspeaker Setup Procedure Introduction This paper describes the procedure used to set up Genesis (or any other) loudspeakers in a living room. It describes a repeatable and replicable procedure that can be used by anyone – not just a “Golden Ear’ed” expert. Certain pieces of music are suggested for the various steps, but these are only suggestions –...
  • Page 25 On the Genesis loudspeakers, also set all the controls to 12 o’clock (pointing straight up) position. On the models with the external servo-bass amplifiers, start with the recommended settings in the Owner’s Manual.
  • Page 26 3-dimensionality with height, width and depth. In the first few seconds of this track, there is a shaker that starts off mid-height and stage left (out to the left side of the Page 3 Copyright Genesis Advanced Technologies, 2009...
  • Page 27 180deg twist clockwise. Because the suspension spikes on Genesis loudspeakers use a #3/8-16 screw thread, a 180deg twist raises it by 1/32 of an inch (about 0.8mm). Hence, you may need to make several adjustments.
  • Page 28 Step 1 again. With some non-Genesis loudspeakers, it may not be possible to achieve this depth relationship of bass and high-frequency instruments. This is due to the bass being out of phase with the mids and highs.
  • Page 29 With many Genesis loudspeakers, the midrange dynamics and forwardness of the loudspeaker can be adjusted with the midrange control. If the piece sounds laid back and boring, raise the midrange level control.
  • Page 30 Don’t Crash the Ambulance, Shangri-La, Mark Knopfler The mid-bass/woofer crossover point defines the amount of “punch” you will get from rock music. If you feel a hollowness between the vocals and bass guitar/drums, raise Page 7 Copyright Genesis Advanced Technologies, 2009...
  • Page 31 Move the subwoofer forwards and backwards in 5mm (1/5 inch) increments until the cymbals and high-hat sounds right. This track can be used to fine-tune positioning of the full-range Genesis loudspeakers in the room if necessary. There is considerable effort in doing this, as any change made here will completely obliterate the image, soundstage, and tonality.
  • Page 32 With Genesis loudspeakers that have an amplified bass section (often with up to 500W of power), such music can often cause the woofers to bottom out and distort. This is one such track.
