~ÄëçäìíÉ=ÑáÇÉäáíó

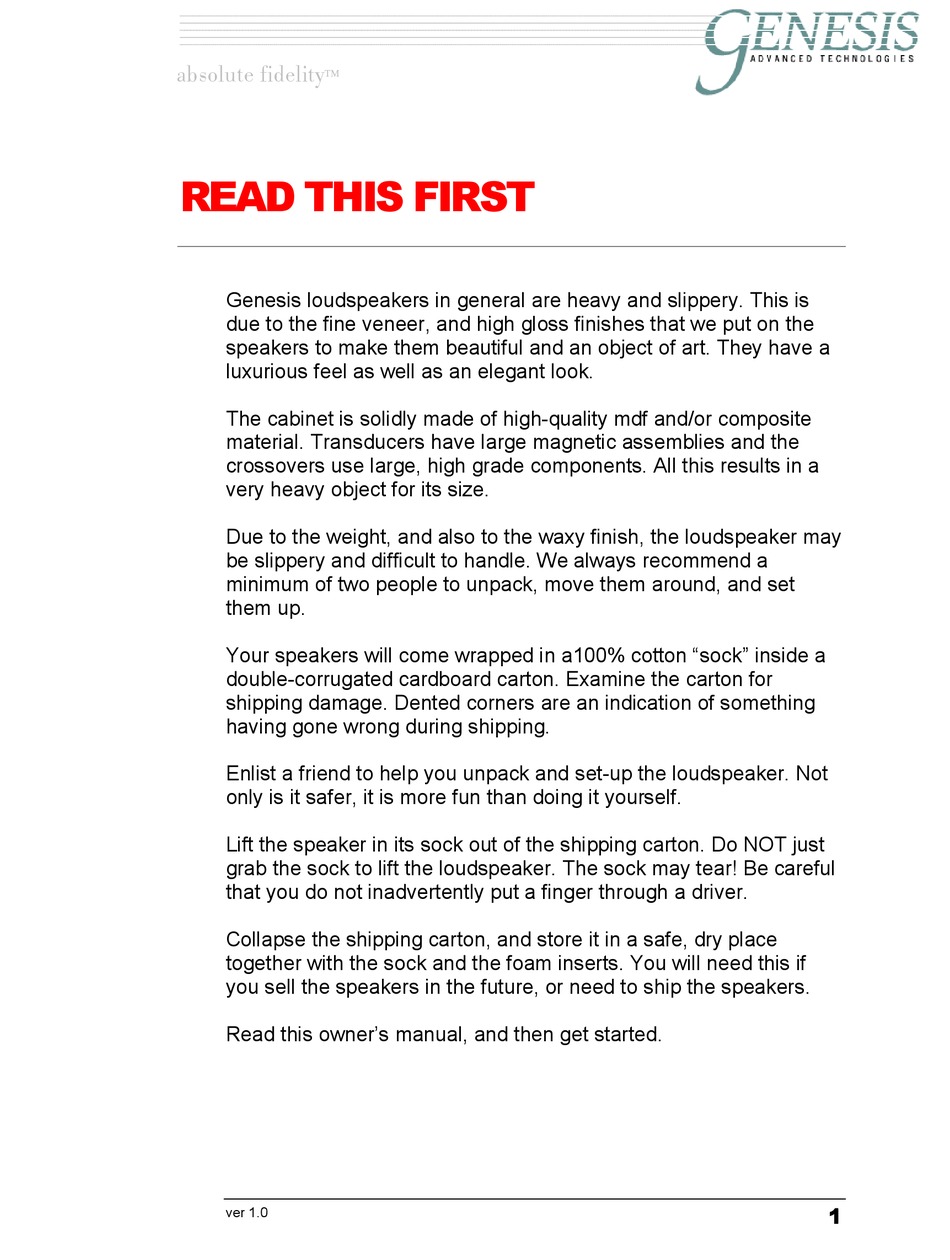

READ THIS FIRST

Genesis loudspeakers in general are heavy and slippery. This is
due to the fine veneer, and high gloss finishes that we put on the
speakers to make them beautiful and an object of art. They have a
luxurious feel as well as an elegant look.
The cabinet is solidly made of high-quality mdf and/or composite
material. Transducers have large magnetic assemblies and the
crossovers use large, high grade components. All this results in a
very heavy object for its size.
Due to the weight, and also to the waxy finish, the loudspeaker may
be slippery and difficult to handle. We always recommend a
minimum of two people to unpack, move them around, and set
them up.
Your speakers will come wrapped in a100% cotton "sock" inside a
double-corrugated cardboard carton. Examine the carton for
shipping damage. Dented corners are an indication of something
having gone wrong during shipping.
Enlist a friend to help you unpack and set-up the loudspeaker. Not
only is it safer, it is more fun than doing it yourself.
Lift the speaker in its sock out of the shipping carton. Do NOT just
grab the sock to lift the loudspeaker. The sock may tear! Be careful
that you do not inadvertently put a finger through a driver.
Collapse the shipping carton, and store it in a safe, dry place
together with the sock and the foam inserts. You will need this if
you sell the speakers in the future, or need to ship the speakers.
Read this owner's manual, and then get started.
1 1 1 1
ver 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7.1 Petite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genesis 7.1 Petite

Summary of Contents for Genesis 7.1 Petite

  • Page 1: Read This First

     READ THIS FIRST Genesis loudspeakers in general are heavy and slippery. This is due to the fine veneer, and high gloss finishes that we put on the speakers to make them beautiful and an object of art. They have a luxurious feel as well as an elegant look.

  • Page 2: Table Of Contents

    ~ÄëçäìíÉ=ÑáÇÉäáíó  Owners Manual and Set-up Guide: Genesis 7.1 Petite Loudspeaker Contents A QUICK START SET-UP GUIDE NPACKING LACEMENT ONNECTIONS DJUSTMENTS SETTING UP AS STEREO PAIR OSITIONING OUDSPEAKER ONTROLS 2.2.1 T WEETER ONTROL 2.2.2 B ONTOUR 2.2.3 T WEETER EFEAT...
  • Page 3 & tricks, and support for our owners. Please write the serial number and purchase details of your Genesis 7.1c here for future reference. Purchased at: _________________ Date: __________ 3 3 3 3...

  • Page 4: A Quick Start Set-Up Guide

     1 A Quick Start Set-up Guide Now that you have your new Genesis 7.1 Petite (G7.1p), we realize that you can’t wait to hook it up and start playing! However, please read this quick set-up guide (even if your dealer is setting it up for you) before you proceed.

  • Page 5: A Djustments

     The high-level thru-put binding posts are for connecting to a subwoofer. We recommend the Genesis ServoSub™ 4/8 as the perfect complement to this speaker. The correct cable for connecting a loudspeaker to a ServoSub is an interconnect cable, and not a loudspeaker cable.

  • Page 6: Setting Up As Stereo Pair

    ~ÄëçäìíÉ=ÑáÇÉäáíó  2 Setting up as Stereo Pair 2.1 Positioning Used as a stereo pair, the G7.1p should be placed vertically at least 18 inches (0.45m) into the room as measured from the front wall (the wall you look at as you are seated listening to the speakers), to the back of the speaker.

  • Page 7: B Ass C Ontour

    2.2.2 Bass Contour The bass contour knob is unique to Genesis. It is a purely passive control that lets you tune the bass performance of the G7.1p into your system, and your room. As you rotate the knob clockwise, it will give you...
  • Page 8 ~ÄëçäìíÉ=ÑáÇÉäáíó  make an adjustment to the tweeter all at once. Make each of these changes separately and note the difference - by listening with each adjustment - then make the next change. 2.5 Imaging and Soundstage We suggest that you start with a single vocal with simple instrumental accompaniment because the sound of the human voice is more easily recognizable than many instruments and is a less complex sound to deal with.
  • Page 9 A Genesis loudspeaker system correctly set up, can and should provide a soundstage that is wall-to-wall, with pinpoint focus; the speakers disappearing completely on a recording containing such information.

  • Page 10: R Oom T Reatment

    How the front wall (the wall you face while listening), is treated or not treated is important. Generally speaking, the Genesis loudspeakers prefer a live (hard reflective) front wall to a dead (soft absorbent) front wall.

  • Page 11: M Astering The R Efinements Of The System

    Keep at it, and remember to enjoy your music as you work on perfecting your set-up! If you have any questions, feel free to contact us at Genesis. Our website is the first place you can look to for more information, but you are welcome to either send us an email, or just give us a call! ver 1.0...

  • Page 12: Setting Up: Multi-Channel

    Use a good quality stand that is solidly built and as rigid as possible. The Genesis ServoSub™ 4/8 is a unique subwoofer that complements the G7.1p to turn it into a full-range absolute fidelity™ system, and also makes a perfect stand for the G7.1p.

  • Page 13: The Technology Used

    What a lot of people don’t realize is that the room is as big (if not bigger), a part of their music system as are the loudspeakers. At Genesis, we strive to get the loudspeakers and the room to work well together and hence, design loudspeakers that interact with the room and have enough of adjustment to make them work with most rooms in the world.

  • Page 14: Crossover

    G7.1p to sound lifelike and effortless. The stiffness of the titanium cone also allows Genesis to use this as a woofer – hence, mid-woofer. It retains its low distortion, even on long throw application needed in delivering the lower frequencies.
  • Page 15 It would actually have been cheaper and easier to make the cabinet of solid wood, but that would have been a compromise. Genesis designed a unique tongue and groove joint in order to improve the structural rigidity and vibration behaviour of the cabinet.

  • Page 16: Specifications

    45/200 watts per side Min/Max Power (Solid State): 60/400 watts per side Input Impedance: 6 ohms (Nominal) HF Transducers: Two Genesis 1” Circular Ribbon Tweeters (front & rear) Mid/LF Transducers: One Genesis 6” Titanium Cone Controls: Front Tweeter level, Rear...
