~ÄëçäìíÉ=ÑáÇÉäáíó
Owners Manual and Set-up Guide:

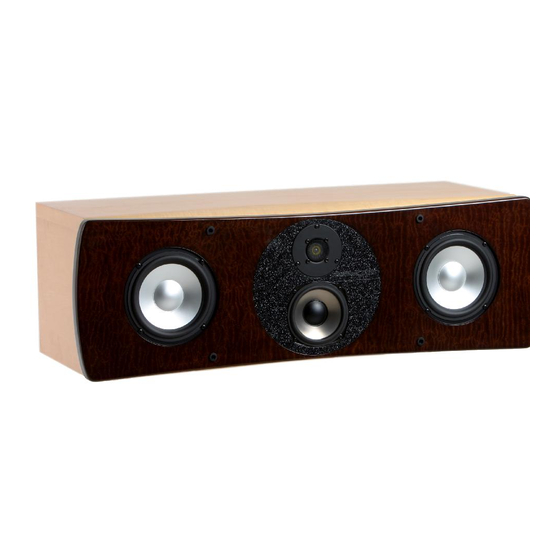

Genesis 6.1 Center Channel Loudspeaker
Contents
1
1.1
1.2
1.3
1.4
2
2.1
2.2
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
4
4.1
4.2
ver 1.0
2.2.1
4
4
4
5
5
6
6
6
6
7
8
8
8
8
9
9
10
10
11
12
13
14
14
14
14
1 1 1 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Genesis G6.1c
Summary of Contents for Genesis G6.1c
-
Page 1: Table Of Contents
~ÄëçäìíÉ=ÑáÇÉäáíó Owners Manual and Set-up Guide: Genesis 6.1 Center Channel Loudspeaker Contents A QUICK START SET-UP GUIDE NPACKING LACEMENT ONNECTIONS DJUSTMENTS SETTING UP: MULTI-CHANNEL OSITIONING FOR OUDSPEAKER 2.2.1 2.2.2 T SETTING UP AS STEREO PAIR OSITIONING OUDSPEAKER 3.2.1 T 3.2.2 T UNING THE SYSTEM MAGING AND... -
Page 2: Specifications
~ÄëçäìíÉ=ÑáÇÉäáíó 4.2.2 T ITANIUM 4.2.3 A LUMINUM ROSSOVER IBRATION SPECIFICATIONS ver 1.0 IDRANGE CONE OOFERS FREE ABINET 2 2 2 2... - Page 3 While the G6.1c is designed as a center channel speaker in a multi- channel music or home theater system, it is also designed to be as flexible as possible.
-
Page 4: Quick Start Set-Up Guide
1.2 Placement Used as a center channel, the G6.1c can be placed below or above your screen. If you have a perforated, sonically transparent projector screen, you may place it behind the screen. In all cases, do not point the tweeter directly at the ears of the listeners. -
Page 5: Connections
Don’t be too worried by the knobs on the back of the G6.1c. Just set both knobs to the 12 o’clock position. That is a good place to start. The G6.1c will sound great, straight out of the box, set-up like this. As you play your system for the next hundred hours or so, the speaker will settle in and break in. -
Page 6: Setting Up: Multi-Channel
2 Setting up: Multi-channel 2.1 Positioning for Center Channel A good starting position is for the G6.1c to be placed horizontally about 20 inches from the floor, and angled upwards by 3 to 5 degrees. This is assuming that the speaker doesn’t block the screen in this position. -
Page 7: Tweeter Defeat
2.2.2 Tweeter Defeat The G6.1c should be placed at least 12 inches (30cm) away from the wall behind the speaker. If this is not possible, turn the rear-firing tweeter off to configure your loudspeaker as a monopole. This is perfectly acceptable and will not compromise the performance for multi-channel surround movies. -
Page 8: Setting Up As Stereo Pair
3 Setting up as Stereo Pair 3.1 Positioning Used as a stereo pair, the G6.1c should be placed vertically 18 inches (0.45m) into the room as measured from the front wall (the wall you look at as you are seated listening to the speakers), to the back of the speaker. -
Page 9: Tweeter Defeat
Music is the best way to begin your set-up procedure. We suggest that video sources be used only after you have set-up the system to properly reproduce music. There is no “perfect” setting for the G6.1c loudspeaker. Every listening room is different, and we recommend that you take the time to carefully tune the system for the environment in which it is placed. -
Page 10: One Change At A Time
~ÄëçäìíÉ=ÑáÇÉäáíó position, they may not sound perfect, but your Genesis loudspeakers will sound great straight out of the box. 3.4 One Change at a Time One rule of thumb you should always keep in mind: Make one change at a time! Do not, for instance, change position of the speakers and make an adjustment to the amplifier all at once. -
Page 11: Defining The Soundstage
~ÄëçäìíÉ=ÑáÇÉäáíó Find the best compromise for your room, your tastes and your space requirements. If you are not getting proper focus on the voice, you may angle the left and right speaker up to about 15 to 20 degrees (toe-in) towards your listening position until you have a properly defined center image. -
Page 12: Room Treatment
~ÄëçäìíÉ=ÑáÇÉäáíó A Genesis loudspeaker system correctly set up, can and should provide a soundstage that is wall-to-wall, with pinpoint focus; the speakers disappearing completely on a recording containing such information. 3.7 Room Treatment No room is perfect. To optimize your sonic presentation it may be helpful to treat your room. -
Page 13: Mastering The Refinements Of The System
~ÄëçäìíÉ=ÑáÇÉäáíó furniture can help break up this point of first reflection. Rear wall. In many cases it will be unnecessary to do anything with the wall behind your listening position. However, you may want to experiment with diffusers or absorbers behind you for best sound. Absorption behind the listener is usually beneficial. -
Page 14: The Technology Used
The G6.1c uses the wall behind the speaker to give more depth to the soundstage and “air” to the speaker without detail robbing room reflections from the sidewalls. -
Page 15: A Luminum - Cone W Oofers
The G6.1c uses two of these tweeters per channel. One is front-firing and the other rear-firing; wired to the crossover out of phase to the front tweeter, creating a dipole. -
Page 16: V Ibration - Free C Abinet
~ÄëçäìíÉ=ÑáÇÉäáíó of using several smaller capacitors in parallel instead of a single big one, transparency and musicality were improved. 4.4 Vibration-free Cabinet The cabinet was designed for aesthetics, but with an obsession to sonic quality, vibration control, structural strength and rigidity. In some parts of the cabinet where vibration would have been the greatest, two inches (52mm) of multi-layer bonded MDF was used to provide damping, structural integrity and a rigid platform for the drivers to... -
Page 17: Specifications
~ÄëçäìíÉ=ÑáÇÉäáíó 5 Specifications Frequency Response: Sensitivity: Min/Max Power (Tube): Min/Max Power (Solid State): Input Impedance: HF Transducers: Midrange Transducers: LF Transducers: Controls: Inputs: Throughputs: Dimensions: Weight: Finishes: ver 1.0 48Hz to 36kHz, ± 3dB 89 dB, 1 watt 1 meter 75/500 watts per side 100/1000 watts per side 4 ohms (Nominal)
