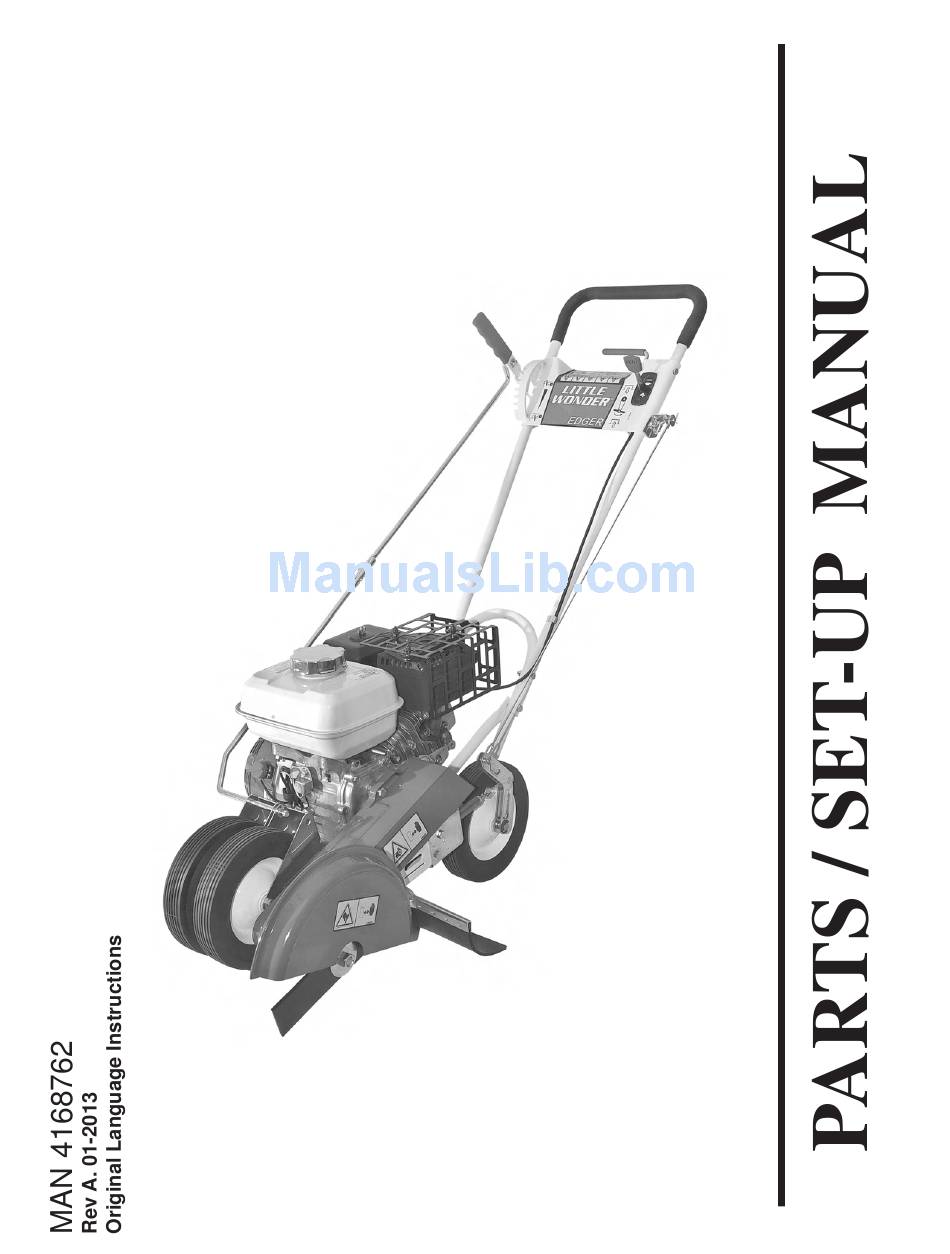

  • Page 1 LITTLE WONDER PRO EDGER 6232-00-59 Set-Up and Parts Manual for LITTLE WONDER Pro Edger...
  • Page 2 CALIFORNIA Proposition 65 Warning WARNING Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
  • Page 3: Table Of Contents

    Your safe use of this Little Wonder product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation.
  • Page 4: Safety

    SAFETY PRO EDGER This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against, Signal word definitions rejects and disclaims any modifications, add-on accessories or product alterations that are not...
  • Page 5 SAFETY PRO EDGER MAINTENANCE SAFETY When refueling or checking fuel level: IN GENERAL - Stop the engine and allow to cool; • Maintain machine according to manufacturer’s - Do not smoke; schedule and instructions for maximum safety and - Refuel outdoors only; best results.
  • Page 6 SAFETY PRO EDGER WARNING LABELS Warning labels are an important part of the safety system incorporated in this machine. Replace labels if damaged or illegible. Key #C P/N 4168758 4168758 Key #B P/N 4168759 4168759 Key #A P/N 4168356 LITTLE WONDER ®...
  • Page 7: Set Up Instructions

    SET-UP INSTRUCTIONS PRO EDGER ASSEMBLY INSTRUCTIONS Your Little Wonder Pro Edger requires a minimal amount Position the enclosed Blade Guard (P/N 129B- of assembly prior to use. Use Figures 1 & 3 in parts sec- W.17) over the blade. tion for assembly.
  • Page 8: Controls

    CONTROLS PRO EDGER CONTROLS FUEL VALVE (F) BLADE HEIGHT ADJUSTMENT LEVER (A) Move to the “OFF” position to shut off the fuel Rotate the lever away from the operator to raise the whenever transporting the machine by trailer or blade. truck or during storage.
  • Page 9: Parts Section

    PRO EDGER PARTS SECTION...
  • Page 10: Handle Assy

    HANDLE ASSEMBLY PRO EDGER FIGURE 1...
  • Page 11 HANDLE ASSEMBLY PRO EDGER FIGURE 1 ITEM PART NO. DESCRIPTION 144-1 HEX HD CAP SCREW 1/4-20X1 1/4 WASHER - 3/8 ID 146B THROTTLE CLIP COTTER PIN 167A SPEED NUT DRAW ROD THROTTLE ADJUST ASSEMBLY 1 HEX HEAD CAP SCREW 1/4-20 X 5/8 1 8-18 GRIP RING 10 227...
  • Page 12: Blade / Drive Assy

    BLADE / DRIVE ASSEMBLY PRO EDGER FIGURE 2...
  • Page 13 BLADE / DRIVE ASSEMBLY PRO EDGER FIGURE 2 ITEM PART NO. DESCRIPTION 162B HEX HEAD SCREW 1/4-20 X 1/2 SET SCREW 5/16-18 X 3/8 BEARING 129D LOCK WASHER 5/16 131A CUTTER HEAD SHAFT BLADE WASHER WOODRUFF KEY #606 TENSION PIN 1/4 X 1 1/4 100-C DECK BRACKET 10 220...
  • Page 14 MAIN FRAME ASSEMBLY PRO EDGER FIGURE 3...
  • Page 15 MAIN FRAME ASSEMBLY PRO EDGER FIGURE 3 ITEM PART NO. DESCRIPTION 114B FLANGE NUT 5/16-18 129C HEX HD SCRW 5/16-18 X 3/4 8 WASHER - 3/8 ID 4163308 FORMED ROD .19 X 2.28 MUD FLAP WASHER 1/2 ID COTTER PIN HANDLE SUPPORT - RH RETAINING RING LINK BELT SLACKENER...
  • Page 16: Warranty

    (1) year from the date of purchase, under the following terms and conditions. LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in ma- terial or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
