Summary of Contents for Little Wonder BedShaper

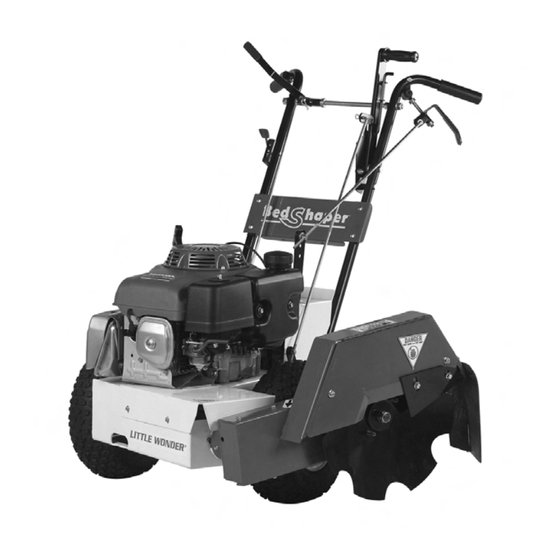

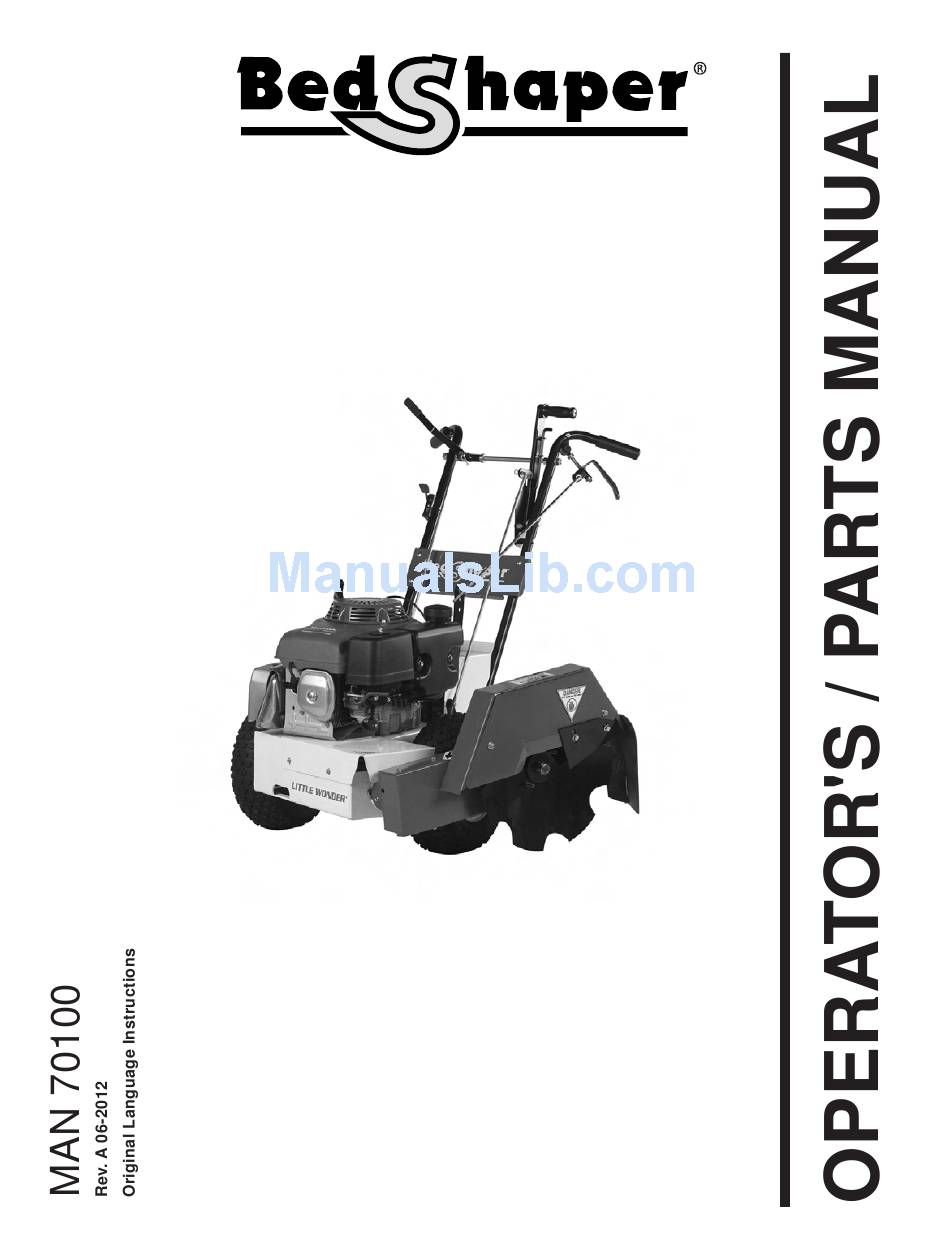

- Page 1 Little Wonder ® MODELS: 904-00-01 13HP Honda Walk Behind Edger Owners Manual and Safety Instructions for Walk Behind Edger...
- Page 2 CALIFORNIA Proposition 65 Warning WARNING Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
-
Page 3: Table Of Contents
Your safe use of this Little Wonder product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best protection, study the manual thoroughly. -
Page 4: Safety
Little Wonder Engineering of hazard seriousness. These words appear in this Department. Any Little Wonder product that is altered, manual and on the safety labels attached to Little modified or changed in any manner not specifically Wonder machines. - Page 5 SAFETY LITTLE WONDER BEDSHAPER MACHINE PREPARATION SITE PREPARATION AND CIRCUMSTANCES Operator preparation and training – Evaluate the terrain to determine how to safely Read the Operation & Safety perform the job. Only use accessories and Manual attachments approved by the manufacturer.
- Page 6 SAFETY LITTLE WONDER BEDSHAPER OPERATING SAFELY INTERRUPTING OPERATION IN GENERAL Before leaving the operator's position: – Use extra care when loading or unloading the - Disengage the blade engagement lever. machine into a trailer or truck. - Release the operating speed control lever.
- Page 7 SAFETY LITTLE WONDER BEDSHAPER MAINTENANCE SAFETY Blades WARNING In general The blade is sharp and can cut. Use extra caution when Maintain machine according to manufacturer's handling. Remove obstruc- schedule and instructions for maximum safety tions with care. Wrap the and best results.
-
Page 8: Labels
LABELS LITTLE WONDER BEDSHAPER Warning Label Locations: 1. 4165977-Warning Decal 2. 20942-Danger Decal 3. 20941-Underground Hazard Decal 4. 2000577-Rotating Parts Decal 5. 2000570-Fuel Warning Decal - ROTATING PARTS. - DO NOT OPERATE WITH COVER REMOVED 2000577 2000577 20941 2000570 20942... -
Page 9: Controls
CONTROLS LITTLE WONDER BEDSHAPER BLADE LIFT LEVER (A) Used to raise the blade arm from the ground for transport. Pull lever forward for transport. Release the spring loaded latch and ease lever forward to set the blade in the ground.. -
Page 10: Operation
OPERATION LITTLE WONDER BEDSHAPER PRE-OPERATION CHECK LIST (OPERATOR'S RESPONSIBILITY) Gasoline is extremely flammable and highly Review and follow all safety rules and safety explosive under certain decal instructions. conditions. BE SURE to install fuel cap after Check that all safety decals are installed and in refueling. - Page 11 OPERATION LITTLE WONDER BEDSHAPER STARTING THE ENGINE 1. Your machine has a pull ring choke (C). Pull the ring out to choke the engine. 2. Move the throttle (B) to about half throttle. Start the engine. See engine operator's manual shipped with your machine for details on starting.
-
Page 12: Bedshaping Tips
BED SHAPING TIPS LITTLE WONDER BEDSHAPER MULTIPLE PASSES AND CUTTING WIDTH: DO NOT OVERRIDE BLADE ENGAGEMENT When establishing a new bed or redesigning an LEVER SPRING LOADED SAFETY SHUTOFF. existing bed, it is recommended that multiple passes be made. To facilitate removal of sod strips, the Observe conditions behind you before moving the passes should be than 3"... - Page 13 MAINTENANCE LITTLE WONDER BEDSHAPER BEDSHAPER MAINTENANCE CHART Item Daily 25 HRS Yearly Page Visual Inspection Engine Refer to Engine Manual Clean Blade Shield Check Wear on Blade Lubricate Blade Arm Fittings Check Drive Belts Lubricate Blade Shaft & Axle Bearings...
- Page 14 MAINTENANCE LITTLE WONDER BEDSHAPER TRANSMISSION The transmission requires no servicing or mainte- nance. Oil level in the reservoir should be at the lower reservoir mark when cold and will be at the upper reservoir mark when hot. The machine can be towed manually by disengaging the hydrostatic transmission.
-
Page 15: Maintenance / Adjustments
MAINTENANCE / ADJUSTMENTS LITTLE WONDER BEDSHAPER LUBRICATE BLADE SHAFT & AXLE BEARINGS: DO NOT OVER FILL. TOO MUCH PRESSURE WILL DAMAGE BEARING SEALS. 1. Locate and clean fittings 2 & 3 on both sides of machine. 2. Pump fittings full of grease using a hand pump. -
Page 16: Part Replacement
REPLACEMENT LITTLE WONDER BEDSHAPER REPLACE BLADE ARM DRIVE BELT: BEFORE ANY MAINTENANCE OR ADJUST TO THE MACHINE, ALWAYS STOP ENGINE, DISCON- NECT SPARK PLUG WIRE, AND ALLOW COMPO- NENTS TO COOL. WEAR GLOVES. 1. Follow all instructions for checking blade drive belt. -
Page 17: Parts Section
PARTS SECTION LITTLE WONDER BEDSHAPER PARTS SECTION... - Page 18 DRIVE ASSEMBLY AND SIDE COVER LITTLE WONDER BEDSHAPER FIGURE 1 11 10...
-
Page 19: Drive Assembly And Side Cover
DRIVE ASSEMBLY AND SIDE COVER LITTLE WONDER BEDSHAPER FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 22209 WLDMT-MAIN FRAME ASSY 1 18307 Chain Tensioner 20966 Grease Fitting 3/16 18128 Bushing Flange 1x7/8x1 18502 Blade Drive Gearbox 90029 Washer Flat 3/8... - Page 20 GEAR CASE LITTLE WONDER BEDSHAPER FIGURE 2...
-
Page 21: Gear Case
GEAR CASE LITTLE WONDER BEDSHAPER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 22130 Spacer 18426 Shank 21052 Shim 18103 Wheel, gauge 18134 Bushing, Bronze 3/4 Tall 18025 Bearing and Lock collar 18131 Split Collar 1 3/4 22184... - Page 22 WHEEL DRIVE AND GUARD ASSEMBLY LITTLE WONDER BEDSHAPER FIGURE 3...
- Page 23 WHEEL DRIVE AND GUARD ASSEMBLY LITTLE WONDER BEDSHAPER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 22209 WLDMT-MAIN FRAME ASSY 1 20966 Grease Fitting 3/16 18128 Bushing Flange 1x7/8x1 18129 Spacer 1 x 5/8 x 1/4 18130 Sleeve 5/8 x 1/2 x 4 1/8...
- Page 24 HANDLES LITTLE WONDER BEDSHAPER FIGURE 4...
- Page 25 HANDLES LITTLE WONDER BEDSHAPER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 18113 SWIVEL 5/16 28 90080 SCREW CAP 3/8 X 2 1/2 90021 COTTER PIN 1/8 X 1 29 90035 NUT LOCK 3/8 NYLON 90029 WASHER FLAT 3/8...
-
Page 26: Warranty
LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in material or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
