- Page 1 900 MHz Wireless Ethernet Modem/Terminal Server (model HTP-900RE) Installation Guide v. 1.0 Rev. C FreeWave Technologies Inc. 1880 S Flatiron Ct. / Suite F Boulder, CO 80301 303-444-3863 1 of 8 LIG0007AA V1.0 RevC...
-
Page 2: Installation Guide

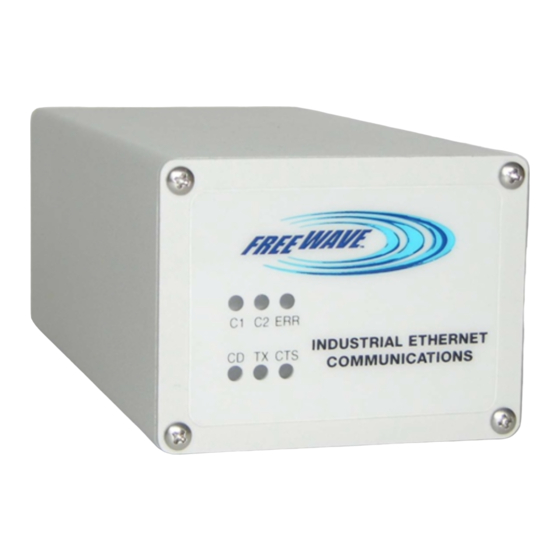

900 MHz High Throughput Wireless Ethernet Modem/Terminal Server, model HTP-900RE Installation Guide This installation guide covers the HTP-900RE model of the FreeWave Technologies 900 MHz High Throughput DST transceiver sold under FCC ID KNY-820181531119. All transceiver models sold under FCC ID KNY-820181531119 must be installed professionally. - Page 3 ♦ Consult the dealer or an experienced radio/TV technician for help. Note: Whenever any FreeWave Technologies module is placed inside an enclosure a label must be placed on the outside of that enclosure which includes the module's FCC ID.
- Page 4 These devices are intended to be installed in a suitable enclosure. RATINGS: Model HTP-900RE is supplied by a NEC Class 2 Power Supply. 6 V dc to 30 V dc at 500 mA (Avg) @ 867K bd max. The ambient rating is -20°C to 40°C.
- Page 5 The complete list of antennas available from FreeWave Technologies including antenna gains, antenna manufacturer’s information and antenna’s characteristics is shown below: The following antennas are approved for use with FreeWave HTP-900RE model transceivers: 900MHz Directional Antennas Gain...
- Page 6 Table 1 below provides the maximum output power settings for HTplus FreeWave transceivers at given antenna gain (12.15 dBi and 8.15 dBi Yagi antennas are given as an example) and cable loss combinations.
- Page 7 EIRP does not exceed 36 dBm. WARNING: Any antenna other than listed in this section needs to be approved by FreeWave Technologies before its use to assure that the transceiver in combination with the new antenna meets FCC requirements.
- Page 8 Placement of the FreeWave transceiver is likely to have a significant impact on its performance. In general, the rule of thumb with FreeWave is that the higher the placement of the antenna the better the communication link - height is everything! In practice you should also place the transceiver away from computers, telephones, answering machines, and other similar equipment.
