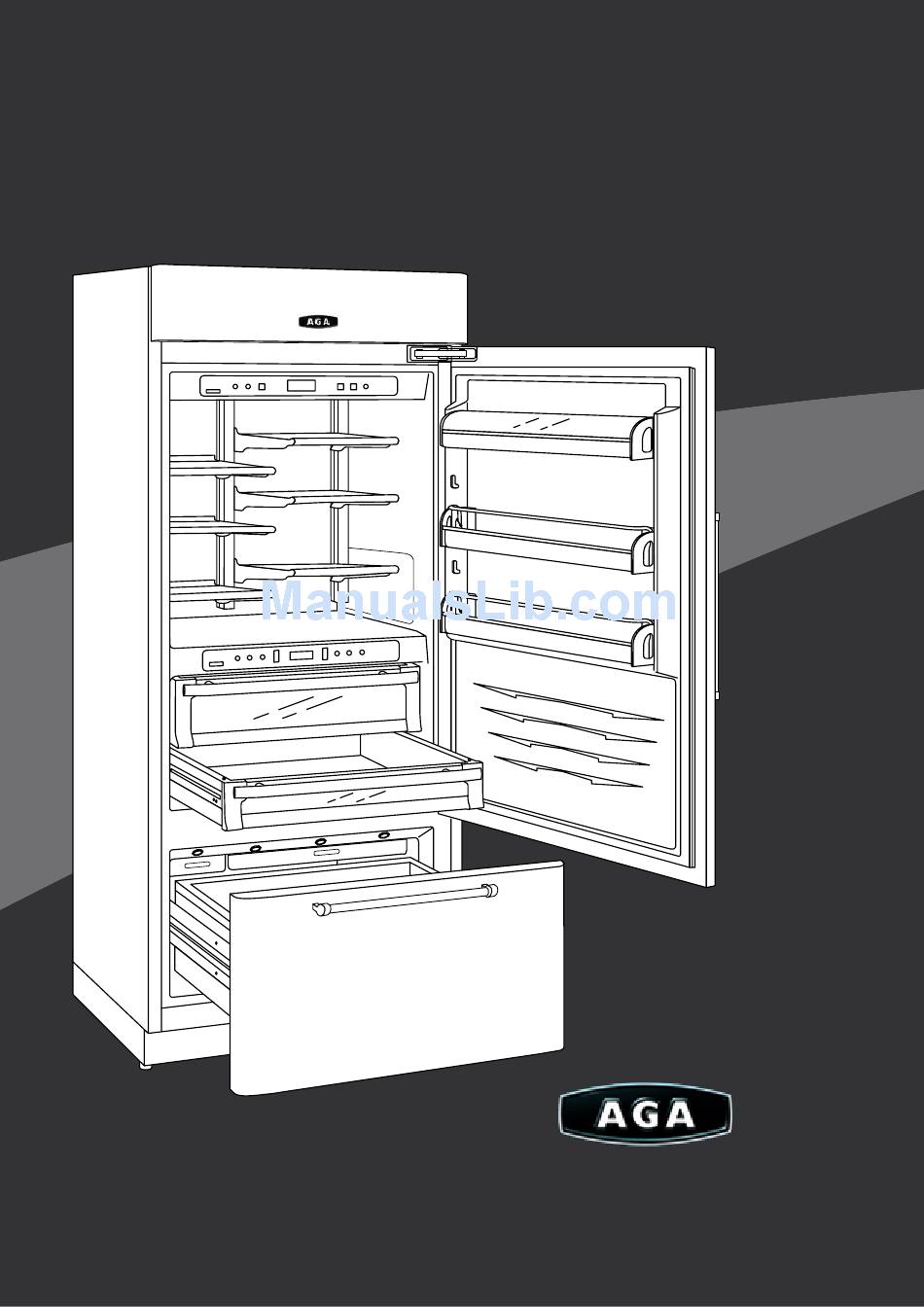

- Page 1 P R E M I U M S E R I E S I N S T A L L A T I O N G U I D E...
-
Page 3: Table Of Contents
Premium Series Installation Guide Index Page Important safety instructions Children Safety Appliance features and installation requirements Installation compartment features 899 Premium Maxi Series 749 Premium Standard Series 599 Premium Wine Cellar Series Transport to installation site and unpacking Electrical and Water connection... -
Page 5: Important Safety Instructions
Premium Series Installation Guide Important safety instructions Important Symbols used in the Guide Directions for avoiding appliance damage Note Tips for the correct use of the appliance Warning directions for preventing injury Children safety If this appliance is replacing an existing appliance which must be... -
Page 6: Installation Compartment Features
Installation compartment features: Premium Maxi Series A: area to be left clear for the anti-tipping brackets E - W: area to be left clear for the power supply cable and water supply hose. Minimum Niche Height: 2165 mm Minimum Niche Width: 900 mm Door Swing Clearance: 1602 mm Door Opening Right Clearance: 216,5 mm 102,5... - Page 7 Premium Series Installation Guide Installation compartment features: Premium Standard Series A: area to be left clear for the anti-tipping brackets E - W: area to be left clear for the power supply cable and water supply hose. Minimum Niche Height: 2165 mm Minimum Niche Width: 750 mm Door Swing Clearance: 1335.5 mm...
- Page 8 Installation compartment features: Wine Cellar Series A: area to be left clear for the anti-tipping brackets E - W: area to be left clear for the power supply cable and water supply hose. Minimum Niche Height: 2165 mm Minimum Niche Width: 600 mm Door Swing Clearance: 1305,5 mm Door Opening Right Clearance: 137 mm 102,5...
-
Page 9: Transport To Installation Site And Unpacking
Premium Series Installation Guide Transport to installation site and unpacking Since this is a large and heavy appliance, before transporting the appliance, check the access to the location where it will be installed (door size, manoeuvring space in stairwells, etc.). -
Page 10: Electrical And Water Connection
Electrical and Water connection Electrical connection A 13 Amp socket with an efficient earth should be made available for the electrical mains connection, as well as an omnipolar switch which can easily be reached after the appliance has been installed. Do not use extension cords or adapters. -
Page 11: Building-In Into The Compartment And Levelling
Premium Series Installation Guide Building - in into the compartment and levelling After wheeling in the appliance into the final location, make it perfectly level and aligned with other cabinets by adjusting the two front leveling feet using a 17 mm wrench and adjusting the two rear wheels using an 8 mm bush wrench on the devices located at the base of the appliance. -
Page 12: Application Of Side And Central Profiles
Place a bracket on the top of the appliance in correspondence to the fixing holes and against the wall. Mark up the holes position on the wall. Drill the wall with an 8 mm bit and insert the expansion plug. Reposition the bracket and fix it first to the cabinet and then to the wall. -
Page 13: Ventilation
Premium Series Installation Guide Ventilation Ventilation is insured by a forced air system through a grille located in the upper part of the appliance. This grille should never be covered by panels or any other devices that could reduce its efficiency. -
Page 14: Start Up
Ice Maker) and any messages which may have appeared on the display. Main features The Aga TriMode refrigeration system and the effi cient Ample drawers with Soft self-closing systems separation of internal compartments ensure maximum in the Fresco area... - Page 16 Station Road, Ketley, Telford, Shropshire, TF1 5AQ England. www.aga-web.co.uk Aga is a trading name of Aga Consumer Products Limited, part of the Aga Rangemaster Group plc. Registered in England & Wales under Registered Number 3872754. Registered Office Address - 4 Arleston Way, Shirley, Solihull B90 4LH...
