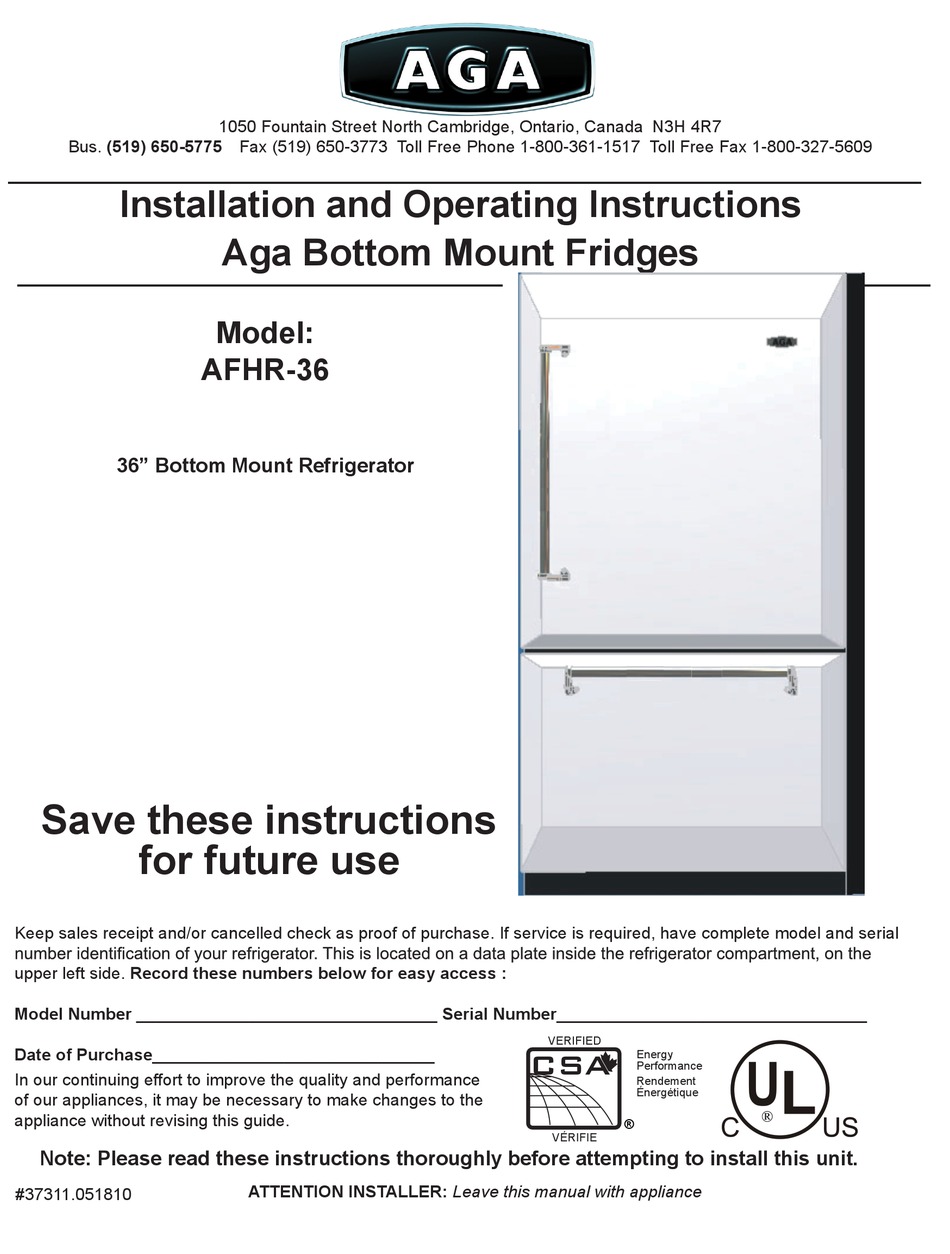

Installation and Operating Instructions

36" Bottom Mount Refrigerator

Save these instructions

for future use

Keep sales receipt and/or cancelled check as proof of purchase. If service is required, have complete model and serial

upper left side. Record these numbers below for easy access :

Model Number ________________________________ Serial Number_________________________________

Date of Purchase______________________________

In our continuing effort to improve the quality and performance

of our appliances, it may be necessary to make changes to the

appliance without revising this guide.

Note: Please read these instructions thoroughly before attempting to install this unit.

#37311.051810

1050 Fountain Street North Cambridge, Ontario, Canada N3H 4R7

Aga Bottom Mount Fridges

Model:

AFHR-36

ATTENTION INSTALLER: Leave this manual with appliance

VERIFIED

CSA

Energy

Performance

Rendement

Énergétique

VÉRIFIE

Table of Contents

Need help?

Do you have a question about the AFHR-36 and is the answer not in the manual?

Questions and answers

Summary of Contents for AGA AFHR-36

Page 1 1050 Fountain Street North Cambridge, Ontario, Canada N3H 4R7 Bus. (519) 650-5775 Fax (519) 650-3773 Toll Free Phone 1-800-361-1517 Toll Free Fax 1-800-327-5609 Installation and Operating Instructions Aga Bottom Mount Fridges Model: AFHR-36 36” Bottom Mount Refrigerator Save these instructions for future use Keep sales receipt and/or cancelled check as proof of purchase.
Page 2: Table Of Contents
Contents Important Safety Instructions ..............3 What You Need to Know About Safety Instructions ..........3 Recognize Safety Symbols, Words, Labels .............. 3 Power Cord ........................3 Installation ....................5 Measuring the Opening 30” Classic and ..............5 Measuring the Opening 36” Classic and ..............5 Measuring the Opening 30”...
Page 3: Important Safety Instructions
Use & Care Guide Important Safety Instructions Power Cord What You Need to Know This appliance is equipped with a 5 ft. (1.5 m) About Safety Instructions power cord with three-prong grounding plug for Warning and Important Safety Instructions ap- your protection against possible electrical shock pearing in this guide are not meant to cover all hazards.
Page 4 Use & Care Guide Important Safety Instructions WARNING To reduce risk of ﬁ re, electric shock, serious injury or death when using your refrigerator, follow these basic precautions, including the following: 1) Read all instructions before using the 13) Always disconnect refrigerator from electrical refrigerator.
Page 5: Installation
Use & Care Guide Installation to prevent the refrigerator from tipping forward should downward pressure be applied with both Your refrigerator has been packed carefully for doors open. To fasten bracket to the wall, distance shipment. Remove and discard shelf packaging from ﬂ...
Page 6: Measuring The Opening 30" Legend
Use & Care Guide Some clearance may be gained by using the leveling from ﬂ oor to underside of bracket will be 68-3/4 procedure under Leveling. (174.6 cm) min to 69-1/4 (176 cm) max. Mark wall where studs are located. Fasten anti-tip bracket IMPORTANT: Corner Installations Legend: To al- to the wall.
Page 7: Leveling (All Models)
Use & Care Guide Leveling 30/36” Model CAUTION To protect property and refrigerator from damage, observe the following: • Protect vinyl or other ﬂ ooring with cardboard, rugs, or other protective material. A. Leveling screw • Do not use power tools when performing levelling procedure.
Page 8: Transporting Your Refrigerator
Use & Care Guide Note: • For proper reinstallation, ensure the “top” marking on the interior of the toe grill is oriented correctly. • Align the toe grill mounting clips with the lower cabinet slots. • Push the toe grill ﬁ rmly until it snaps into place.
Page 9 Use & Care Guide Model 3015 30” Classic Anti-Tip Bracket Body Width 29 5/8” Hinge (76 cm) Dimensions 27.1/2” (71 cm) 67” 66 1/4” (170 cm) (169 cm) 65 5/8” (167 cm) 51 3/8” (131 cm) w/ freezer door open 3/8”...
Page 10 Use & Care Guide Model 3115 36” Classic 61” (155 cm) Anti-Tip Bracket 36” (91.4 cm) Hinge depth w/ open door door width Dimensions 3/4” (19 mm) 69-1/2” 69-1/4 (176 cm) max (176.5cm) 68-3/4” (174.6 cm) min 68-3/4” 3/8” back (174.6 cm) 23-1/2”...
Page 11 Use & Care Guide Model 3065 30” Legend Hinge Dimensions 27 ½” 67” (71 cm) (170 cm) 65 5/8” 66 1/4” (167 cm) (169 cm) 49” (125 cm) w/ freezer 3/8” door open front leg adjusters 29 5/8” (76 cm) 58-5/8”...
Page 12 Use & Care Guide Model 3165 36” Legend 36” (91.4 cm) Hinge 61” (155 cm) Anti-Tip Bracket door width depth w/ open door Dimensions 23-1/2” (60 cm) 3/4” cabinet depth (20 mm) 69-1/2” (176.5cm) 69-1/4 (176 cm) max 68-3/4” (174.6 cm) min 68-3/4”...
Page 13: Connecting The Water Supply
Use & Care Guide Connecting the Water Supply Materials Needed 36” Models only • 1/4” outer diameter ﬂ exible copper tubing. Note: Some reverse osmosis home water systems cause • Shut-off valve (requires a 1/4” hole to be drilled low water pressure. Low water pressure can effect the into water supply line before valve attachment).
Page 14: Using The Controls
Use & Care Guide Using the Controls Temperature Controls - 36” Model For your convenience, your temperature controls are preset at the factory. When you ﬁ rst install The control center is located at the top front of the your refrigerator, make sure the controls are still refrigerator compartment.
Page 15 Use & Care Guide the freezer to the lowest temperature setting. • Press the (+) or (-) touch pads until the de- Press the OptimIce® feature touch pad again sired temperature to return to the normal freezer set • set point is displayed. point.
Page 16 Use & Care Guide turned off. Customers Notes: • Press the Door Alarm touch pad to turn this feature on or off. The indicator light will be lit when the Door Alarm feature is on. Water Filter Status Lights and Filter Reset (on somemodels) See “Water Filter Status Lights.”...
Page 17: Fresh Food Features
Use & Care Guide Fresh Food Dairy Center Features The Dairy Center provides convenient door storage for spreadable items such as but- Shelves ter and margarine. This compartment can be CAUTION moved to different locations to accommodate stor- age needs. To avoid personal injury or property damage, ob- To use the dairy center, raise the cover.
Page 18: Crisper Drawer
Use & Care Guide Temperature-Controlled Drawer The Chef’s Pantry™ drawer is a full-width drawer Crisper Drawers with adjustable temperature control. This drawer can be used for large party trays, deli items, bev- The Crisper Drawers provide a higher humidity erages or other miscellaneous items. environment for fresh fruit and vegetable storage.
Page 19: Beverage Organizer
Use & Care Guide Accessories Ice and Water Beverage Organizer™ 30” Models only Automatic Ice Maker The Beverage Organizer™slides out from under- Note neath the Spillsaver™ shelf. The Beverage Or- •Energy rating guides that are posted on the ganizer™ holds up to twelve 12-ounce beverage refrigerator at the time of purchase do not cans.
Page 20 Use & Care Guide • Certain sounds may accompany the various Do not block any of these vents with food pack- cycles of the ice maker. The motor may have a ages. If the vents are blocked, airﬂ ow will be pre- slight hum, the cubes will rattle as they fall into vented and temperature and moisture problems an empty storage pan and the water valve may...
Page 21: Water Dispenser
Use & Care Guide Ice and Water Initial Installation The water ﬁ lter is located in the upper right hand Water Dispenser corner of the fresh food compartment: 1. Remove blue bypass cap and retain for later 36” Models only use.
Page 22: Replacing Water Filter
Use & Care Guide Water Filter Status Light (on some models) The water ﬁ lter status light will help you know when to change the water ﬁ lter. When the yellow (Order) light is on, it is almost time to change the water ﬁ...
Page 23 Use & Care Guide System Speciﬁ cation and Performance Data Sheet Refrigerator Water Filter Cartridge Model UKF8001AXX Speciﬁ cations Service Flow Rate (Maximum) ........0.78 GPM (2 9 L/min) Rated Service Life UKF8001AXX-750 (Maximum)..750 gallons/2839 liters PentaPure Inc. Maximum Operating Temperature ........ 100° F / 38° C 1000 Apollo Road Minimum Pressure Requirement ........
Page 24 Use & Care Guide State of California Department of Health Services Water Treatment Device Certiﬁ cate Number 03 - 1583 Date Issued:September 16,2003 Date Revised:April 22,2004 Trademark /Model Designation Replacement Elements UKF8001AXX750 UKF8001AXX 469006-750 46 9006 67003523-750 67003523 Manufacturer: PentaPure Inc. The water treatment device(s) listed on this certiﬁ...
Page 25: Food Storage Tips
Use & Care Guide Food Storage Tips Dairy Food • Most dairy foods such as milk, yogurt, sour cream and Fresh Food Storage cottage cheese have freshness dates on their cartons for appropriate length of storage. Store these foods in •...
Page 26: Food Storage Chart
Use & Care Guide Food Storage Chart Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality of the food when purchased. Foods Refrigerator Freezer Storage Tips Dairy Products Butter 1 month 6 to 9 months Wrap tightly or cover Milk and cream 1 week...
Page 27 Use & Care Guide Foods Refrigerator Freezer Storage Tips Cabbage, celery 1 to 2 weeks Not recommended Wrap odorous foods and refrigerate in crisper. Carrots, parsnips, beets and 7 to 10 days 8 to 10 months Remove tops. Wrap odorous foods and turnips.
Page 28: Care And Cleaning
Use & Care Guide Care and Cleaning WARNING CAUTION To avoid electrical shock which can cause severe To avoid personal injury or property damage, ob- personal injury or death, disconnect power to serve the following: refrigerator before cleaning. • Read and follow manufacturer’s directions After cleaning, reconnect power.
Page 29: Cleaning The Outside
Use & Care Guide Care and Cleaning once, if left standing on the nickel surface some etching and/or permanent streaking may occur) If any acid based food or liquid, such as lemon juice or WARNING tomato juice, is spilled on the refrigerator, wipe it at once to prevent staining.
Page 30: Energy Saving Tips
Use & Care Guide Energy Saving Tips Replacing Light Bulbs • Avoid overcrowding refrigerator shelves. This reduces air circulation around food and causes WARNING refrigerator to run longer. To avoid electrical shock which can cause severe • Avoid adding too much warm food to refrigerator personal injury or death, disconnect power to at one time.
Page 31: Preparing For Vacation
Use & Care Guide R e p l a c e b u l b • Empty the ice bin. with appliance bulb 3. If your refrigerator has a dispenser system with no greater than 40 water ﬁlter, remove the water ﬁlter cartridge watts.
Page 32 Use & Care Guide Preparing to move: • Follow the above instructions for long vacations/ absences, through step 7. • Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage. • Tape the doors shut. •...
Page 33: Operating Sounds
Use & Care Guide Operating Sounds Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not present in an older model. These improvements were made to create a refrigerator that is better at preserving food, is more energy efﬁ cient, and is quieter overall. Because new refrigerators run qui- eter, sounds may be detected that were present in older refrigerators, but were masked by higher sound levels.
Page 34: Troubleshooting
Use & Care Guide Troubleshooting Problem Possible Causes What To Do Freezer control and lights are on, but Refrigeration is in defrost mode Normal operation. Wait 40 minutes to compressor is not operating see if refrigerator restarts. Crisper drawer temperature is too warm Refrigerator control settings are too See page 14 to adjust controls.
Page 35 Use & Care Guide Problem Possible Causes What To Do Water droplets form on outside of Check gaskets for proper seal. Clean according to the instructions on refrigerator page 26. Humidity levels are high. Normal during times of high humidity. Controls require adjustment.
Page 36: Ice Maker
Use & Care Guide Problem Possible Causes What To Do Refrigerator is leaking water Plastic tubing was used to complete The manufacturer recommends using water connection. ¼” o.d. copper tubing for installation. Plastic is less durable and can cause leakage. The manufacturer is not responsible for property damage due to improper installation or water connection.
Page 37: Warranty
No person, ﬁrm or corporation is authorized to make any other warranty or assume any other obligation for HEAR TLAND. To obtain performance of the warranty, report any defects to: Your Dealer or Heartland Appliances Service Representa- tive. AGA-HEARTLAND APPLIANCES INC. PLACE OF PURCHASE______________________________ 1050 FOUNTAIN STREET...
Page 38: If You Need Service
Use & Care Guide Warranty & information on owner’s responsibilities for warranty service. Service • If the dealer or service company cannot resolve the problem, write to: What is Not Covered By Heartland Appliances, Customer Assistance, These 1050 Fountain Street North Cambridge, Ontario, Canada Warranties: N3H 4R7...
Page 39 See our complete line of kitchen appliances: 9800 (Built-in)- 30" electric wall oven. Can also be installed undercounter with a cooktop. Includes self-clean option. 4210- 30" Gas / Electric kitchen range - 4 sealed in a 30" opening! 5210- 48" Gas / Electric kitchen range- 6 sealed Model 3115: gas burners, electric convection self clean oven, Classic Series...
