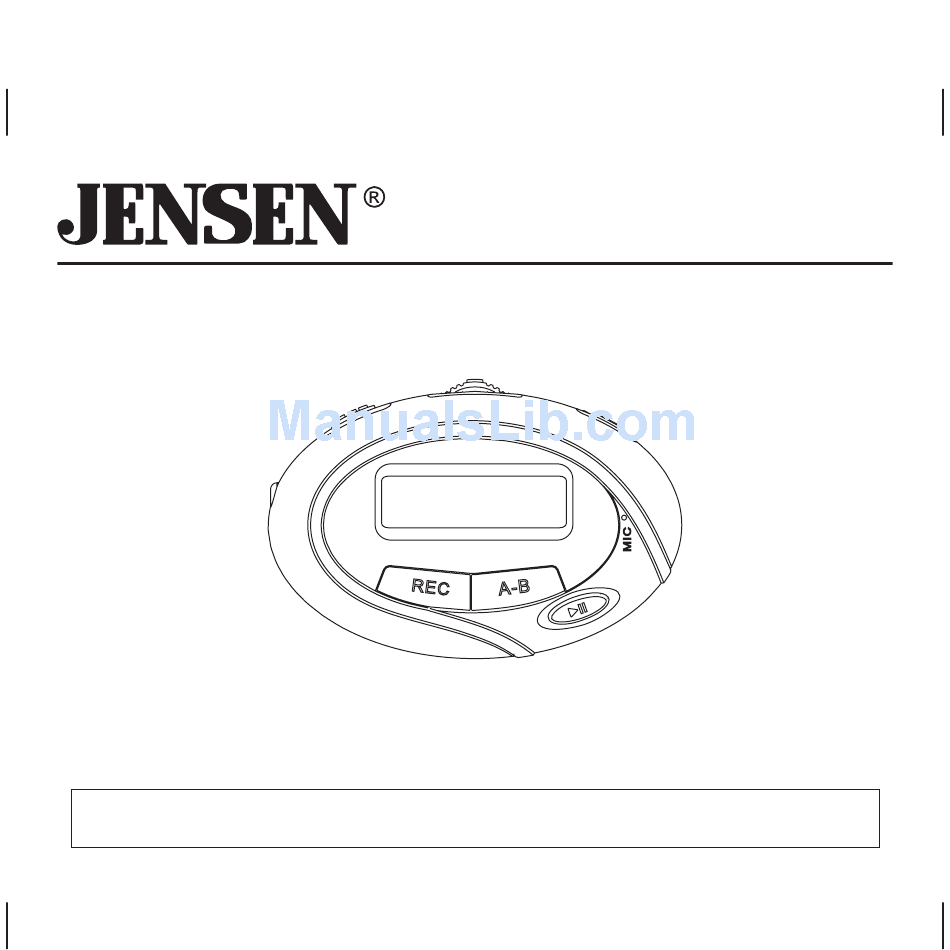

Page 1: Digital Audio Player
DIGITAL AUDIO PLAYER USER MANUAL SMP-1GBEB PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE. -
Page 2: Dear Jensen Customer
The serial number of this product is found on the unit. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number: SMP-1GBEB CUSTOMER... -
Page 3: Safety Information
We don't suggest you to use the Player when driving or doing other things that you must fully concentrate in. It may cause distraction. When using your MP3 player, pay attention to your health, especially the power of hearing. To avoid static electricity, do not operate the Player in extremely dry environment. - Page 4 100mm x 80mm WARNING If the unit is not to be used for an extended period of time, remove the batteries. Old or leaking batteries can cause damage to the unit and may void the warranty. Only adults should replace batteries. Replace the batteries when the unit stops operating properly.
-
Page 5: Locations Of Controls
100mm x 80mm LOCATIONS OF CONTROLS 1. Headphone jack 2. HOLD button / MENU (Confirm) / button 4. Micro USB port 5 REC button ACCESSORIES IMPORTANT: Make sure you can locate the following items after opening the package. - USB cable for PC connection and music synchronization - Ear buds with neck strap - Armband - Heaphones adaptor... -
Page 6: Basic Operations
100mm x 80mm BASIC OPERATIONS Turn power on and play music Install an AAA (UM-4) battery into the battery compartment. Plug the ear buds into the earphone jack. Make sure HOLD button is in the "Unlock" position Press and hold PLAY / PAUSE During the music playback mode, press the into submenu... - Page 7 100mm x 80mm BASIC OPERATIONS REPEAT (MUSIC/MENU 1): Let you enjoy your music playback with repetition. Select REPEAT mode and short press the Short press Repeat All, Random and Intro.) Short press the MENU button to confirm your selection. (ii) EQUALIZER (MUSIC/MENU 1): Let you select different music effect.
- Page 8 100mm x 80mm BASIC OPERATIONS (vii) REPLAY GAP (MUSIC/MENU 1): You can select the time interval (in second) between each A-B replay. 1. Select "REPLAY GAP" mode and press the Short press button to select the A-B REPEAT GAP (from 1 to 10 seconds). (viii) PLAYLIST, ARTISTS, ALBUMS, GENRE, COMPOSERS LICENSE INFO 2): You can select your favorite music by these divisions.
-
Page 9: Fm Radio Operations
100mm x 80mm FM RADIO OPERATIONS Press and hold the MENU button to enter the main menu. Select mode by pressing Short press the MENU button to enter the submenu (Save, Record, Delete, Delete all, Auto Search and Exit). Note: There are 20 preset memory stations. MANUALLY SEARCH THE FM STATIONS Press button to tune your favorite FM radio station by 0.1 Mhz steps. - Page 10 SETTINGS Press and hold the MENU button to enter main menu. Short press button to select Short press the MENU button to enter. Press button to choose individual settings (System Time, Record type, Backlight, Language, Power off, Replay mode, Contrast, Online Device, Online Mode, Memory info., DRM Time, Protect setting and Exit). Short press the MENU button to confirm any selected setting.
- Page 11 100mm x 80mm SETTINGS (v) POWER OFF: Short Press button to select: Off time/Sleep time (Off time: 0-60 Sec; Sleep time: 0-120 Min). (vi) REPLAY MODE: Short press to select "Manual replay" or "Auto replay". (vii) CONTRAST: Press button to adjust the screen contrast: from 1 to 16. (viii) ONLINE DEVICE: Press button to select "Media Device"...
-
Page 12: Adding / Removing Files / Folders
100mm x 80mm ADDING / REMOVING FILES / FOLDERS You can use the player as a removable USB storage. Connect the PC USB port and the MP3 USB port with the provided USB cable, your player will display: Add files/folders to the USB storage s folder. Your player will display: Open files/folders to transfer from your computer. - Page 13 DRM-protected music download, the download is encrypted specifically for that customer. To allow the customer to use the file on a separate MP3 player they must link the DRM enabled player to Windows Media Player 10 and link both applications.
- Page 14 100mm x 80mm How to set your MP3 player into MTP mode? In "SYS" menu select "Online Device" submenu and enter by pressing the MENU button, then press button to select "Media Device" for DRM function. 5. Click "OK" to start synchronization, your PC will display:...
- Page 15 100mm x 80mm Select "Manual" or "Automatic" as your requirement, for example, select "Manual" and click "Finish", it will display: Add the songs that you want to synchronize into the sync List.
- Page 16 100mm x 80mm 8. Click "Start Sync".
- Page 17 100mm x 80mm 9. The dexter frame will display the synchronized songs.
-
Page 18: Specification
100mm x 80mm SPECIFICATION Compatible Operation System Music Format Equalizer USB Interface Internal Memory Size LCD Display Signal-to-noise Ratio Audio Frequency Range File System Battery Operating Temperature SERVICE Please refer to the instructions on the enclosed warranty card for returning your unit for service. When returning the unit, please remove batteries to prevent damage to the unit in transit and/or from possible battery leakage.
