- Page 1 MPR419Q MECHLESS MEDIA RECEIVER AM-FM USB Media Player Bluetooth Music & Hands-Free Calling Motorized Phone Mount with Wireless Charging INSTALLATION & OWNER’S MANUAL...
- Page 2 MPR419Q OPERATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
MPR419Q OPERATION Wiring DIagram WHITE FRONT LEFT SPEAKER WHITE/BLACK GRAY FRONT RIGHT SPEAKER GRAY/BLACK IGNITION / ACC 12V(+) GREEN REAR LEFT SPEAKER BATTERY 12V (+) YELLOW GREEN/BLACK CHASSIS GROUND (-) BLACK VIOLET REMOTE TURN-ON(+) REAR RIGHT SPEAKER DARK BLUE POWER ANTENNA (+) -
Page 4: Control Locations - Front Panel
MPR419Q OPERATION Control Locations - Front Panel Power / Mute Preset 6 / Folder Up Band / Display Voice Control Preset 5 / Folder Down Mode Open Preset 4 / Play / Pause Volume / Menu Preset 3 / Intro... -
Page 5: Remote Control Preparation

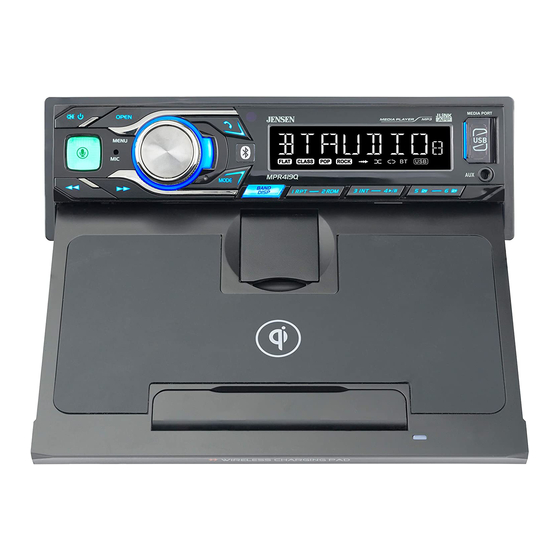

MPR419Q OPERATION Remote Control Preparation Remove the battery tape before first use. To install a new battery, remove the battery cover and the old battery, then insert the new battery keeping the (+) side up. Replace the battery cover to secure. - Page 6 MPR419Q OPERATION Wireless Charging Operation To use the wireless charging pad, press OPEN on the front panel.and the pad will automatically slide out from the unit. Once the pad is fully extended, open the phone holder at the bottom. Place the phone on the pad, and lift the buckle on the top of the pad to securely support the phone.
-
Page 7: Safety Tip
MPR419Q OPERATION Wireless Charging Operation Step #3 Step #3 Place the smart phone on the wireless charging pad to begin charging. Note: LED Indicator for Charging Status Charging: Flashing Blue Fully Charged: Solid Blue Step #4 Step #4 Press OPEN to close the wireless Press OPEN to close the wireless charging pad. -
Page 8: General Operation
MPR419Q OPERATION General Operation Press or any other button to turn the unit on. Power On/Off Press and hold to turn the unit off. Press MODE to select between Radio, USB, AUX and Changing Modes Bluetooth. Current mode is shown in the display. -
Page 9: Tuner Operation
When A-STORE appears, press DISP to store 18 FM Store stations and 12 AM stations automatically. Press PS to recall each preset staion that stored in Preset Scan the memories in each band. Stations Note: This feature is only available with the Jensen remote control app. -
Page 10: Usb Operation
MPR419Q OPERATION USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track. -
Page 11: Bluetooth Operation
MPR419Q OPERATION Bluetooth Operation Preparation Before using a Bluetooth device, it must be paired and connected. Ensure that Bluetooth is activated on your device before beginning the pairing process. Pairing a New The head unit broadcasts the pairing signal Device constantly when no devices are connected. -
Page 12: Voice Control
MPR419Q OPERATION Jensen J-Link P2 App Operation The Jensen J-Link P2 Smart App is the ultimate remote control for your receiver. Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver's line of sight. -
Page 13: Fcc Compliance
MPR419Q OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 14: Limited One Year Warranty
Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized Jensen dealer and used in the U.S.A. What is covered? This warranty covers all defects in material and workmanship in this product. The... - Page 15 MPR419Q OPERATION FM Tuner US Tuning Range: 87.5MHz-107.9MHz EU Tuning Range: 87.50MHz-108.00MHz Usable Sensitivity: 8.5dBf 50dB Quieting Sensitivity: 10dBf Stereo Separation@ 1kHz: 30dB Frequency Response: 30Hz-13kHz AM Tuner US Tuning Range: 530KHz - 1710KHz EU Tuning Range: 522KHz - 1620KHz Usable Sensitivity: <42dBu...
-
Page 16: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product. Dealer Info Dealer Name:... - Page 17 MPR419Q MPQ914 OPERATION GENERAL Notes...
- Page 18 MPQ914 INSTALLATION & OWNER’S MANUAL Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
