Summary of Contents for ADAMS RITE RITE Touch

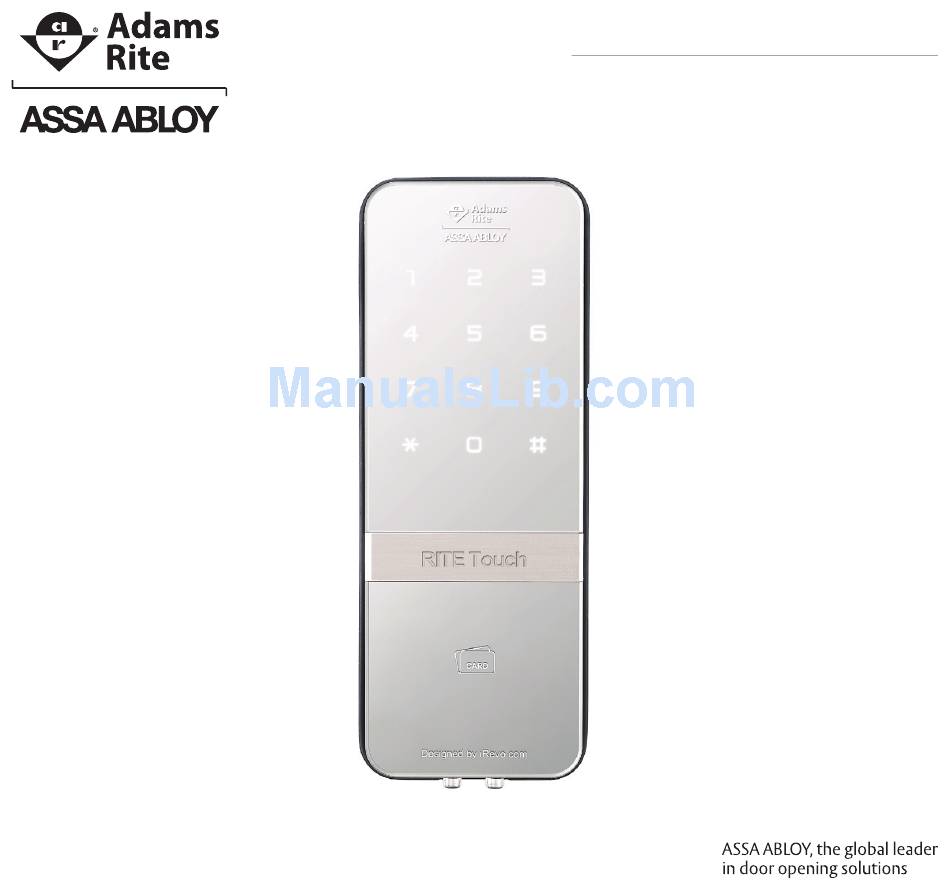

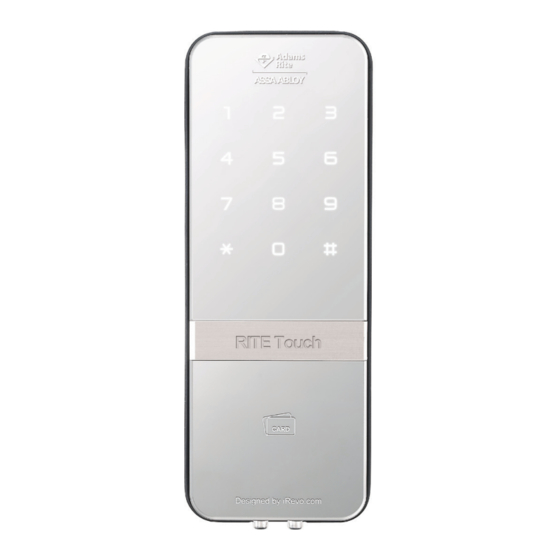

- Page 1 User Guide RITE Touch * The functions and design of this product can be changed for quality improvement without prior notice.
- Page 2 This product is for indoor Do not attempt to Do not apply water directly to use only. disassemble the RITE the RITE Touch. Do not apply Touch. To do so may chemical substances such as result in injury and alcohol during cleaning.
- Page 3 Advanced Mode Advanced Mode can be used for professional and high security management. Magic Mirror The Magic Mirror design allows the keypad to appear on the mirror as soon as it is touched by a user. The user can also use the Magic Mirror to visually survey the surroundings to monitor safety and security.
-
Page 4: Specifications
Basic Contents • User Guide • Installation Template • Card Keys (x4) • Mounting Screws Front Body Back Body Strike for Double Doors 10mm door thickness Single Door Magnet Extension type deadbolt gasket (13/32”) Specifications Parts Specifications Remarks Front Body 9/16(D) x 2-7/8(W) x 7-5/16(H) inches Operating Temperature: 14(D) x 73(W) x 186 (H) millimeters... - Page 5 Front Body Back Body Keypad Battery Cover Slot for Remote Control module (sold separately) Low Battery ® Registration Indicator Button Manual Thumb Turn Card Reader Safe Knob Open/Close Button Emergency Power Dead Bolt Supply Terminal...
-
Page 6: Using The Keypad
Using the Keypad Registering User PIN Code User PIN Code must be 4 to 12 digits. Special characters [*] and [#] are not allowed. Press ® Enter User PIN Code Press ® (Registration) button (4 to 12 digits) (Registration) button Open Door with User PIN Code Touch with palm Enter User PIN Code... -
Page 7: Locking The Door
Locking the Door To Close Door from Outside Step Icon Description Manual lock status Touch the keypad on the front body gently with your palm to lock the door. Auto lock status The built-in auto lock sensor automatically locks the door within 5 seconds after closing the door. - Page 8 Forced Lock Outside Forced Lock Setting - PIN Code Touch with palm Enter User PIN Code Press and hold [#] button for 3 seconds Outside Forced Lock Setting - Card Key Contact Card Key for 3 seconds until you hear 3 beeps. ∙...
- Page 9 Auto/Manual Locking Mode To Set Automatic Locking Mode Auto-lock setting locks a door within 5 seconds after closing the door. Press ® Enter [#] button Enter number Press ® (Registration) button on the keypad (Registration) button After a door is locked by the auto-lock function, please verify that the door is completely locked. To Set Manual Locking Mode *Factory default setting Press ®...
- Page 10 Open/Close Button Setting Feature Outside Forced Lock Setting - PIN Code This feature disables and enables the open/close button. The on/off status of the function changes every time the setting is modified. When the system is set to ‘off’, the open/close button is disabled. Press ®...
-
Page 11: Alarm Features
Alarm Features The alarm sounds for 30 minutes or until it is reset. The alarm can be reset by presenting the card key, or entering the User PIN code, or pushing and holding the open/close button for 5 seconds. Break in / Damage Alarm Break in: When someone tries to break in by opening the door when it is locked, the alarm sounds. - Page 12 3-Minute Lock Feature If incorrect security codes or unregistered card keys are attempted 5 times in a row, the RITE Touch locks out for 3 minutes with the blinking LED. To Release 3-Minute Lock Press the Open/Close button. Method 1 Press the ®...
-
Page 13: Remote Control Module
Remote Control Module The Remote Control Module may be purchased separately from Adams Rite. It may be installed in the back body of the RITE Touch to activate the remote control feature. Remote Control Module Installing the Remote Control Module... -
Page 14: Remote Control
Remote Control To Register Remote Control Step Icon Description Press ® (Registration) Open the battery cover in the Back Body. button and # Press ® (Registration) button and then #. Enter number 0 and 5 Enter number 0 and then 5 on keypad. on the keypad Register Remote Press the SET button on the Remote Control. - Page 15 Touch the keypad gently with your palm or enter enter * button * button to confirm. In the event of battery failure, the RITE Touch may be unlocked using a 9V battery. Emergency Power Supply for Discharged Batteries Expiration Period The product uses four 1.5V Alkaline AA batteries.
- Page 16 www.adamsrite.com 800.872.3267...
