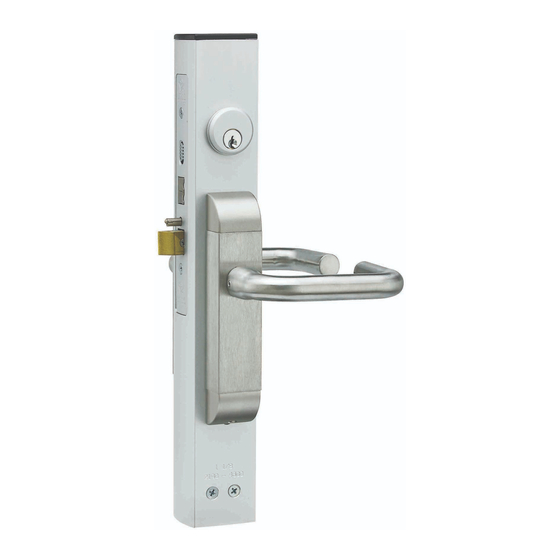

ADAMS RITE 2190 series Installation Instructions

1 STRIKE PREPARATION
DEADLATCH ALUMINUM FRAME
IN DOOR C L
.218
C L OF
CYLINDER
C'SNK FOR #10
FLAT HD SCREW
2 PLS
C L OF
.080
STRIKE PLATE
(2 15/32")
4.645
5.375
2101 STRIKE PLATE
SHOWN
.572
1.447
INSTALLATION OF STRIKE
- INSERT MOUNTING BACK PLATE BEHIND JAMB AND FASTEN WITH
#10 FLAT HEAD SCREWS.
- INSERT TRIM BOX WITH 2101 STRIKE PLATE AND FASTEN WITH
#10 FLAT HEAD SCREWS TO BACK PLATE AS SHOWN.
2
BEVEL TABS ADJUSTMENT
- ROTATE BEVEL TABS TO DESIRED HANDING.
USING THE BEVEL ADJUSTMENT ALLOWS THE FLAT.
FACEPLATE TO WORK IN BEVEL STILES
RHR BEVEL
AVAILABLE FACEPLATES
FLAT
RADIUS
FLAT or RADIUS
RADIUS WEATHER STRIP
2190 INSTALLATION INSTRUCTIONS
Adams Rite Manufacturing Co.
W/ HEAVY DUTY ENTRANCE LEVER SET
260 Santa Fe Street,
Pomona, CA 91767
Phone: 909-632-2300
Fax: 909-632-2369 80-0180-410
www.adamsrite.com
1.340
ONE WALL ONLY
6.375
2.310
3.306
2x
#10-32
ONE WALL ONLY
TOOLS NEEDED:
- 5/64 ALLEN WRENCH
BACK OF LOCK STILE
- 3/32 ALLEN WRENCH
- 1/8 ALLEN WRENCH
- #9 DRILL BIT (.196 Ø)
- #16 DRILL BIT (.177 Ø)
- 7/8 DRILL BIT (.875 Ø)
- 1-1/8 DRILL BIT (1.125 Ø )
FOR RADIUS FACEPLATE
WITH WEATHERSEAL ONLY !
- WITH A SMALL FLAT HEAD
SCREWDRIVER, PRY OFF
LHR BEVEL
BEVEL TABS AS SHOWN.
Rev.
D
OUTSWING LOCK STILE PREPARATION ONLY
FOR INSWING DOORS USE SMALL FORMAT LEVERS (4600)
AND REFER TO 4600 INSTRUCTION WITH 2190
BACKSET
.196
.928
4.200
1.125
4x, .177
ONE WALL ONLY
1.212
1.125
THRU ONE
1.160 WALL ONLY
.968 5.025
2.520
.928
.500
ONE WALL ONLY
FOR
.968
ELECTRIFIED OPTION
- APPLY STICK ON TEMPLATE OVER CYLINDER BACKSET CENTER LINE.
( EXTERIOR TRIM )
NOTE: EACH TEMPLATE IS LABELED FOR OUTSIDE OR INSIDE TRIM.
- CENTER PUNCH ALL HOLES.
- DRILL HOLES AT CENTER PUNCH LOCATIONS. REMOVE TEMPLATE.
- INSTALL 2190 PER INSTALLATION INSTRUCTIONS.
TO CHANGE THE HANDING
3
ON LATCH BOLT:
- DEPRESS THE LATCHBOLT UNTIL BOLT SCREW CAN BE
SEEN THROUGH CASE HOLE. (1-1/2" BACKSET ONLY).
1-1/2" BACKSET
SHOWN
- REMOVE BOLT SCREW AND ORIENT LATCH BOLT TO
THE OPPOSITE HAND.
- DEPRESS THE LATCH BOLT UNTIL THE COUNTERSINK
HOLE ON THE LATCH BOLT CAN BE SEEN THROUGH THE
FIG.1.
CASE HOLE AS SHOWN IN
- REINSERT BOLT SCREW AND TIGHTEN TO 22 - 27 IN-LB.
3a
#1-64 x 1/4"
FLAT HEAD SCREW
LATCH
BOLT
1-1/8 BACKSET
#6 x1/2"
1-1/2 BACKSET
BOLT SCREW
ECN: 11883 Date: 02/03/2012
BACKSET
1.594
C L OF
CYLINDER
6.885
6.375
4.200
4x
ONE WALL ONLY
R.156
1.010
- YOU WILL ALSO HAVE TO RE-ORIENT
THE INTER-CONNECT CAM:
a)
LOOSEN THE #6-32 FLAT HEAD SCREW
AT THE BOTTOM OF THE LOCK.
b)
ROTATE THE INTER-CONNECT CAM
TO THE SAME DIRECTION AS THE
LATCH BOLT BEVEL.
RETIGHTEN THE #6-32 FLAT HEAD
SCREW TO COMPLETE THE
OPERATION.
3a
TO BLOCK HOLDBACK FEATURE:
- INSTALL #1-64 x 1/4" FLAT HEAD
SCREW INTO CASE AS SHOWN
BEFORE INSTALLING IN DOOR.
3b
FOR APPLICATIONSTHAT REQUIRE
RETRACTION OF THE DEADBOLT
AND DEADLATCH FROM BOTH
SIDES OF THE DOOR. REMOVE THE
INTER-CONNECT CAM, AND INSTALL
THE OPTIONAL DOUBLE
INTER-CONNECT CAM.
FIG.1
DOUBLE INTER-
CONNECT CAM
(P/N 27-0268)
INSTALLATION INSTRUCTIONS
Page 1 of 3
1.250
BOTH WALLS
FOR CYLINDER
.196
ONE WALL ONLY
.938
4x, .177
2.238
1.212
.875
1.160
.968
3.390
2.520
.938
.196
ONE WALL ONLY
.968
.177
( INTERIOR TRIM )
LATCH
BOLT
#6-32
BEVELED
FLAT HD
SIDE SHOULD
SCREW
FACE THE SAME
DIRECTION AS THE
a
INTER-CONNECT
CAM
b
INTER-
CONNECT CAM
BACK VIEW
3b
Appvd: BC Date: 02/09/12
