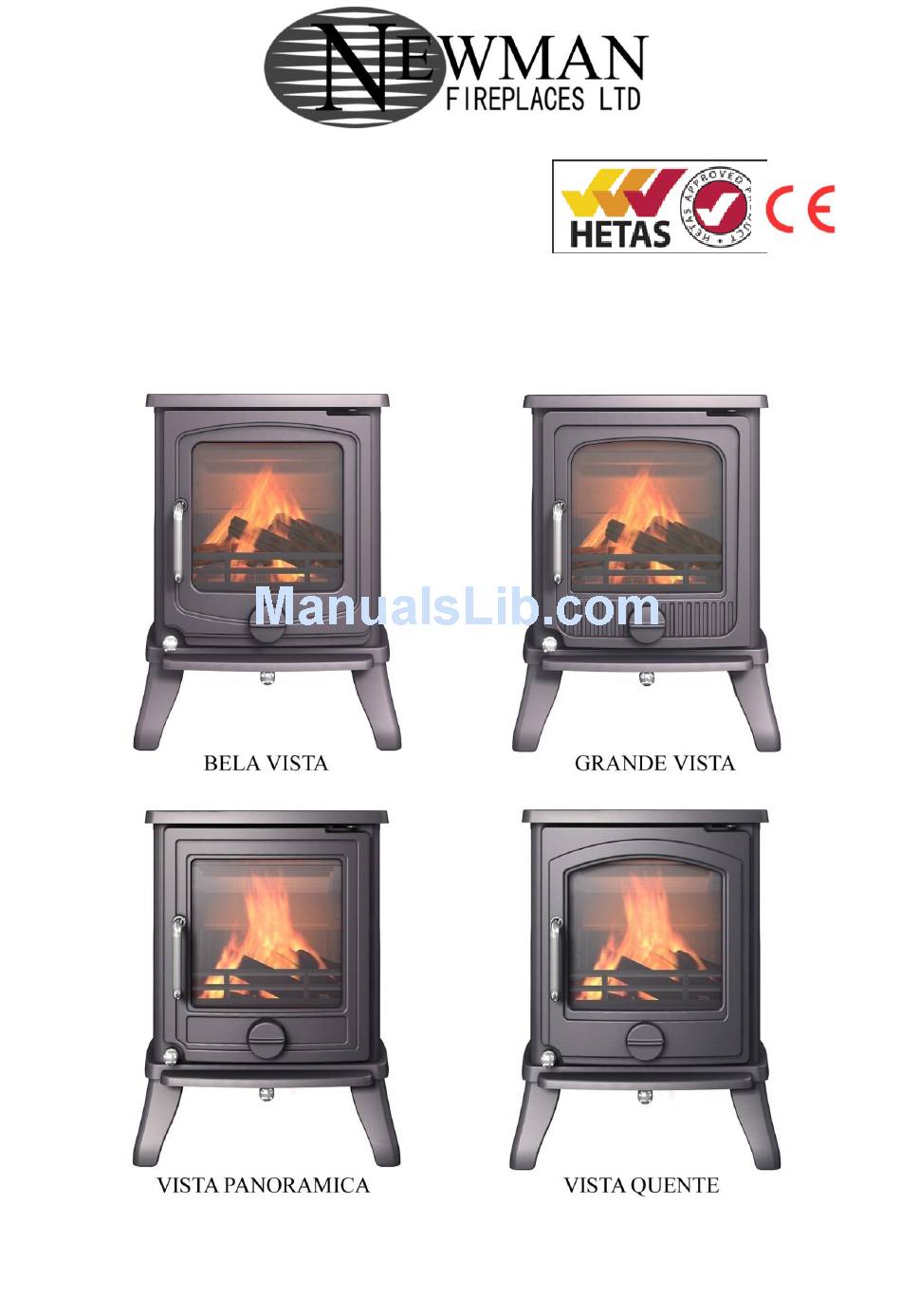

- Page 1 VISTA (Multi fuel stoves). Installation & user instructions (To be left with customer).
-
Page 2: Table Of Contents
Contents Pre-installation checks & general safety notes. Installation introduction with technical data. 1.0 Technical data 2.0 Installation introduction Unpacking the stove Installing the stove 2.2.1 Assembling the tertiary air control 2.2.2 Assembling the baffle Stove placement / clearance requirements The chimney Pipe connections Connecting to a masonry chimney Connecting to a steel chimney... -
Page 3: Pre-Installation Checks & General Safety Notes
Pre-installation checks & general safety notes Installation of this stove must be completed in accordance with current local codes and regulations in each country. All local regulations & any rules in force, including those which refer to national and European standards, must be observed when installing this product. Reference must be made to current issues of British Standard BS 8303, code of practice for installation of domestic heating and cooking appliances burning solid mineral fuel and BS EN 15287-1:2007 design, installation and commissioning of chimneys. -
Page 4: Installation Introduction With Technical Data
Important note: These instructions combine several models of stoves, therefore certain sections in this manual relating to the installation & technical data for each stove will vary. Technical data. (Bela Vista, Grande Vista, Vista Panoramica, Vista Quente). Material: Cast iron Finish:... -
Page 5: Unpacking The Stove
0.08% (smokeless fuel) Flue gas temperature: C (wood) C (smokeless fuel) Operational mode: Intermittent Technical data according to EN 13240+A2:2004. (Vista Panoramica, Vista Quente). Nominal heat output: 4.9kw (wood) 4.9kw (smokeless fuel) Flue gas mass flow: 3.4 g/sec (wood) 3.4 g/sec (smokeless fuel) -
Page 6: Assembling The Tertiary Air Control
and your installer who is responsible to ensure that the installation complies with all relevant regulations and any rules in force. 2.2.1 Assembling the Tertiary air control. (See figure 1). The Tertiary air control is an optional part. After assembling the control, check for easy operation and check for complete seal when the plate is closed. - Page 7 adequate load-bearing capacity. If an existing construction does not meet this requirement, suitable measures (e.g. load distributing plate) must be taken. Wooden floor protection. The product can be placed directly onto a wooden floor providing that it is covered by a metal plate or other suitable, non-inflammable material.
- Page 9 Contact your local building authority regarding restrictions and installation requirements. Walls protection Note: The side load door must not be used in corner installations if this product is a side load door version. Distance to wall made of combustible material See figure 2 &...
-
Page 10: The Chimney
Clearances to furniture and soft furnishings We recommend that the stove be installed 115 cm from furniture. Serious consideration should also be given to positioning of any furniture that could be adversely affected by heat. The clearances to combustible materials in front of the stove should be a minimum of 115 cm. When lit, a wood-burning stove gets hot and therefore adequate protection must be provided, particularly in situations where there is a safety risk to children or the infirm. -
Page 11: Pipe Connections
2.5 Pipe connections The stove is supplied with a 125mm diameter outlet collar to which an approved suitable gauged metal rigid stove flue pipe of compatible and correct size is installed (not supplied), this rigid stove flue pipe must be connected correctly to the chimney or flueway. The chimney or flueway that the stove pipe is connected must be of at least 150mm internal diameter. -
Page 12: Connecting To A Steel Chimney
Refer to building regulations & any other rules in force, including BS 8303 and BS EN 15287-1:2007. (Vista Panoramica & Vista Quinte, nominal heat output 4.9kw). A wood-burning stove requires air for combustion and therefore you may need to install additional ventilation to the room. -
Page 13: Draft Conditions
Refer to building regulations & any other rules in force, including BS 8303 and BS EN 15287-1:2007. (Bela Vista & Grande Vista, nominal heat output 7.5kw). A wood-burning stove requires air for combustion and therefore you may need to install additional ventilation to the room. - Page 14 Draft conditions The chimney‟s draft is the resulting effect within the flue caused by the difference in temperature within the flue and the cooler temperature outside. Other factors that can influence the level of draft include the length of the flue, insulation of the chimney, adverse weather conditions or tall buildings or trees nearby the flue terminal.
- Page 15 Bakelite Handle. Step 1: Position Bakelite handle, screw and washer fixings, (parts 3) into correct position with steel elbow (part 4). Tighten screw securely. Step 2: Place elbow shaft (part 1) into shaft hole of door and place the washers, door catch and nut into position as shown to diagram, Tighten nut securely.
-
Page 16: Commissioning And Handover
2.95 Commissioning and handover Ensure all parts are fitted in accordance with these instructions. On completion of the installation allow a suitable period of time for any fire cement and mortar to dry out, before lighting the stove. Once the stove is under fire check all seals for soundness and check that the flue is functioning correctly and that all products of combustion are vented safely to atmosphere via the chimney terminal. -
Page 17: Choice Of Fuel
WARNING NOTE. Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de-ashing and re-fueling may occur. However, persistent fume emission is potentially dangerous and must not be tolerated. If fume emission does persist, then the following immediate action should be taken:- (a) Open doors and windows to ventilate the room and then leave the premises. -
Page 18: Use
Not recommended as fuel: Green or damp wood reduces stove efficiency and soils the glass, the internal walls and the flue (soot, tar, etc.). Used timber. Burning treated wood (railway sleepers, telegraph poles, off cuts of plywood or chip board, pallets, etc.) quickly clogs the flue ways (soot, tar,) etc, pollutes the environment (pollution and smell,) etc, and cause the fire to burn too quickly and overheat. -
Page 19: Use With Solid Fuel
3.2.1 Use with wood: See figure 4 Lighting • Slide the top secondary air control to open. Open the primary air control. • Open the door & lay a reasonable quantity of firelighters or rolled up newspapers on the grate, if necessary also use dry kindling wood. - Page 20 dry kindling wood. Place a small quantity of solid fuel on top. • Light the newspaper or firelighters using a long taper and close the door. • When the fire is burning fiercely, add further fuel. • When the stove body is hot, close the top secondary air control. •...
-
Page 21: Ash Removal
poor. The stove provides too much heat, so the combustion should be reduced. But always remember to make sure that there are lasting flames until the wood becomes charcoal. If you want a weaker fire, stoke up using less wood. ... -
Page 22: Maintenance
3.3 Maintenance The stove should be regularly serviced by an approved and competent engineer but some simple procedures are given below which the user can also adopt. 3.3.1 Cleaning glass This product is equipped with an air wash for the glass. Air is sucked in through the air vent above the stove and down along the inside of the glass. -
Page 23: Gaskets
vacuuming it with a soft brush attachment or wiping it down with a dry, dust-free cloth, but only when the stove is not in use & cold. If the stove is used too vigorously, the painted surface may assume a grey tinge over time, but the stove can easily be freshened up with heat resistant spray paint but only when the stove is not in use and cold, refer to manufacturer‟s instructions, which is available from your local retailer. -
Page 24: Replacement Parts
Flue duct is cold. Burn paper and Smokes when kindling wood to increase heat. lighting up. Room In houses equipped decompression with mechanical ventilation, open a window until the fire is well established. Ventilation Consult a chimney Smokes while insufficient specialist.
