Newman FLAMEVIEW ST1 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

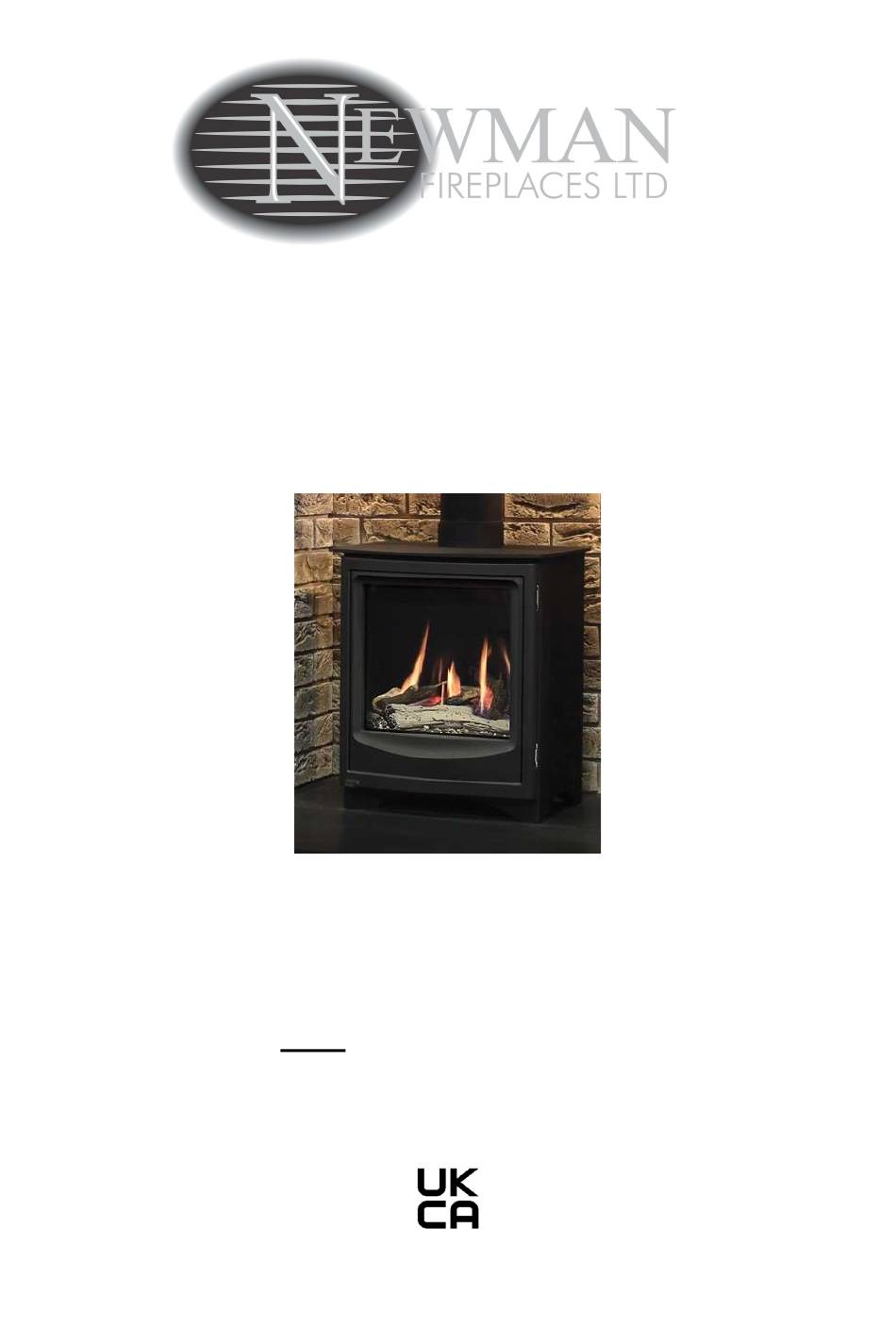

Owner's Manual
Includes
Installation, Service, Maintenance and User Instructions
FLAMEVIEW ST1 GAS STOVE
THIS APPLIANCE IS CATEGORY I
FOR USE WITH NATURAL GAS
2H
AT A SUPPLY PRESSURE OF 20 MBAR.
These instructions Must be left with the user for future reference.
For use in Great Britain.
Issue 7
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLAMEVIEW ST1 and is the answer not in the manual?

Questions and answers

Related Manuals for Newman FLAMEVIEW ST1

Summary of Contents for Newman FLAMEVIEW ST1

  • Page 1: Front Cover

    Owner’s Manual Includes Installation, Service, Maintenance and User Instructions FLAMEVIEW ST1 GAS STOVE THIS APPLIANCE IS CATEGORY I FOR USE WITH NATURAL GAS AT A SUPPLY PRESSURE OF 20 MBAR. These instructions Must be left with the user for future reference.

  • Page 2: Table Of Contents

    SECTION CONTENTS PAGE Front cover Contents Appliance data Health & Safety notice 3 – 6 Conditions of Installation 6 - 7 Flue & chimney suitability 7 - 8 Installation 9 - 24 Hearth Siting Distance to non-combustible materials Distance to combustible materials Flue connection Ventilation Installation of back plate ( Steel or glass)

  • Page 3: Appliance Data

    Appliance data Model FLAMEVIEW ST1 Gas type G20 (Natural gas) Supply pressure (measured at test elbow), mbar Injector (x1) Stereomatic 500 Oxypilot type Erta PG-82 -330 Nominal Heat Input (Qn), kW (Gross)-Maximum Rate 0.526 Gas consumption at max rate ( Minimum heat input kW (Gross) 0.300...
  • Page 4  This stove must only be installed onto floors with an adequate load-bearing capacity. If an existing construction does not meet this requirement, suitable measures (e.g., load distributing plate) must be taken and must be in accordance with Current National laws, Building Regulations, &...
  • Page 5 Serious consideration should be given to the positioning of any furniture, soft furnishings or decoration that could be adversely affected by heat. Newman Fireplaces Ltd recommend that any furniture, soft furnishings, decoration, to be a minimum of 1200 mm away from any surface of the stove.

  • Page 6: Conditions Of Installation

    initial firing stage, then switch the appliance off and seek professional help before attempting to use the appliance again.  The simulated fuel must be arranged only as shown in these instructions by a suitably registered and competent gas appliance installer. ...

  • Page 7: Flue & Chimney Suitability

    Important Information  When installing the FlameView ST1 gas stove, careful consideration should be made to the siting of the appliance as a spillage test will need to be carried out at the Draught Diverter at the rear of the stove.
  • Page 8 Brick / stone-built chimneys or any chimney or flue which has been used for an appliance burning fuel other than gas must be thoroughly swept. Any under floor air supply to the fireplace must be completely sealed off. Ensure that the inside of the chimney / flue is in good condition along its length and check that there is no leakage of smoke through the structure of the chimney / flue during and after the smoke pellet test.

  • Page 9: Installation

    Important:  When installing the FlameView ST1 gas stove, careful consideration must be made to the siting of the appliance as a spillage test will need to be carried out at the Draught Diverter at the rear of the stove.

  • Page 10: Distance To Non-Combustible Materials

    Distance from NON-combustible materials Clearance from non-combustible material in the fireplace opening must be at least to the dimensions shown in the table below. Position Non-combustible material Minimum Distance mm Above the appliance 100mm Rear of the appliance 50mm Left side of the appliance 100mm Right side of the appliance 100mm...

  • Page 11: Flue Connection

    Flue connection The flue must be at least 3m high and at least 125 mm diameter (5”) at no point should there be any negative or horizontal gradients in the flue pipe. It is recommended that a minimum height of 600mm of vertical flue pipe is made from the stove top flue connection before any significant change of direction of the flue.
  • Page 12 Drawing showing installation of the rear back plate or rear black glass chamber panel...

  • Page 13: Gas Supply Routing

    Gas supply routing  Gas connection 8mm compression: Rigid.  Determine the gas supply route to the appliance before installing the stove. Gas connection  Ensure the gas supply being used is fully purged to ensure it is not contaminated with any substance before connecting to the stove.

  • Page 14: Spillage Test

    2.9.2 Spillage test A spillage test must always be carried out during commissioning of this appliance to ensure all products of combustion are safely expelled. Ensure that the spillage test can be witnessed in its entirety. WARNING: This stove will become very hot whilst carrying out the spillage test therefore suitable non-combustible protection must be worn.

  • Page 15: Carbon Monoxide Alarm

    Rear of stove 2.9.3 Carbon Monoxide Alarm  A Carbon Monoxide Alarm must be installed within the room containing the appliance, refer to current document J of the Building Regulations. 2.9.4 Placement of simulated fuel:- vermiculite mica, ceramic logs, glowing embers &...
  • Page 16 The logs must be positioned as in the pictures below. WARNING: Do not change the fuel bed layout, the type or number of logs. Completely fill the burner with the mica supplied. Ensure if any mica spills into or onto the pilot light assembly it is removed before commencing further.
  • Page 17 Identify the right-hand log and place it on top of the chassis metal plate surrounding the right-hand side of the burner . See the left-hand picture. Identify the log that sits on the mica to the left-hand side of the burner, position so each end of this log is resting on the rear and front log as shown to the left- hand picture.

  • Page 18: Operating Instructions

    2.9.5 Operating Instructions Below – the TESC gas valve, which is situated at the bottom, right of the appliance. To gain access to the control the stove door will require to be opened by gently pulling on the underside of the left- hand side which will release the magnetic catch and allow the door to be swung open.
  • Page 19 Replacement of batteries in TESCO1 gas valve ONLY replace the batteries in the TESC01 gas valve when the appliance is turned off, and only when the appliance is completely cold. The TESCO1 gas valve which operate the appliance are battery powered and require replacing periodically, after removing the plastic front cover from the control, the batteries are fitted and positioned as shown below, (positive and negative symbols are marked on the control that must correspond with the batteries), always replace the plastic cover once batteries have been fitted.
  • Page 20 During periods of non-regular use of the appliance such as during the summer months or any other times it is IMPERATIVE that the batteries are removed and stored safely from the remote-control handset and the gas burner TESC gas valve. Only remove the batteries from the TESC gas valve when the appliance is switched off, and only when the appliance is completely cold.
  • Page 21 Position. On the appliance, simultaneously press the hold the - and + buttons on the TESC gas valve (i.e. not the handset) unit the red light to the bottom right of the TESC control valve begins to flash rapidly,(this will take about 5-8 seconds), then immediately as the red light starts to flash release the - and + buttons and quickly press the power button that is above them.
  • Page 22 Using the handset Hold the handset as shown, wrapping your hand around the handset touching both sides. In a second or less the green unlock light will illuminate, allowing the buttons to work when pushed. (NOTE: If the green light is not a constant green or not illuminated at all the buttons will not be operable).

  • Page 23: Customer Education

    2.9.6 Customer education  Hand these instructions to the user and advise the user to read fully.  Advise the user until they are fully educated on the use of the stove and the controls. . . E xplain regarding the thermal cut off feature. ...

  • Page 24: Servicing / Maintenance Instructions

    safely from the remote-control handset and the gas burner TESC gas valve. Only remove the batteries from the TESC gas valve when the appliance is switched off, and only when the appliance is completely cold. Failure to remove the batteries during these times can cause the batteries to leak and damage other components, this will INVALIDATE THE GUARANTEE.
  • Page 25 window with frame and seal is tightened evenly and securely to the appliance. Glass window with seal  Check the window glass is in sound condition.  Clean the window glass with a suitable stove glass cleaner.  Check the glass window seal and retaining frame is in sound condition. ...
  • Page 26  Visually check the gas burner for any signs of cracks or deterioration if found a replacement will be required direct from the manufacturer.  Replace in reverse order. Plan view showing chassis tray, gas burner, Oxy-pilot assembly, and gas control when removed from the stove.
  • Page 27 Front view of the chassis tray showing Oxy-pilot mounting screws and TESC remote gas valve position. Cleaning of the Oxy-pilot light If the extended warranty is not being exercised, it is important to clean the pilot light assembly.  Follow the removal and refitting procedure of the Oxy-pilot light as shown to the Replacement of the Oxy-pilot assembly above.
  • Page 28  Re-assemble in reverse order, ensure gas soundness to all connections.  Follow instructions on pairing the remote with the TESC remote gas valve in the relevant section. Cleaning or replacement of the gas injector  Follow the gas burner, Oxy-pilot assembly & TESC remote gas valve removal sequence. ...

  • Page 29: Replacement Parts

    manufacturers spare parts. It is normal for some paint deterioration to the internal and external paint surfaces of the stove, to freshen up any affected areas use heat resistant stove paint from the manufacturer, ensure surfaces are clean, sound, and dry before re-painting, refer to the heat resistant stove paint manufacturer’s instructions.

  • Page 30: User Instructions

    Owner’s Manual User Instructions FLAMEVIEW ST1 GAS STOVE THIS APPLIANCE IS CATEGORY I FOR USE WITH NATURAL GAS AT A SUPPLY PRESSURE OF 20 MBAR. These instructions Must be left with the user for future reference. For use in Great Britain.

  • Page 31: Health & Safety Notice

    IMPORTANT: Health & Safety notice  Please read the instruction manual in its entirety.  The stove is a very heavy appliance and care must be taken when lifting and moving, we recommend that suitable lifting equipment is used or alternatively use a competent 2 person lift following Health &...
  • Page 32 Serious consideration should be given to the positioning of any furniture, soft furnishings or decoration that could be adversely affected by heat. Newman Fireplaces Ltd recommend that any furniture, soft furnishings, decoration, to be a minimum of 1200 mm away from any surface of the stove.
  • Page 33 to skin, eyes, nose, and throat. When handling avoid inhaling and contact with skin and eyes. Use disposable gloves, facemasks, and eye protection. After handling wash hands and other exposed parts thoroughly. If a vacuum is used for cleaning the logs or cleaning after installation or servicing, it is highly recommended that the vacuum is of a type fitted with a Hepa filter.

  • Page 34: Operating Instructions

    Operating Instructions Below – the TESC gas valve, which is situated at the bottom, right of the appliance. To gain access to the control the stove door will require to be opened by gently pulling on the underside of the left- hand side which will release the magnetic catch and allow the door to be swung open.
  • Page 35 Replacement of batteries in TESCO1 gas valve Ensure the appliance is switched off, and only when the appliance is completely cold before removing or changing batteries. The TESCO1 gas valve which operate the appliance are battery powered and require replacing periodically, after removing the plastic front cover from the control, the batteries are fitted and positioned as shown below, (positive and negative symbols are marked on the control that must correspond with the batteries), always replace the plastic cover once batteries have been fitted.
  • Page 36 During periods of non-regular use of the appliance such as during the summer months or any other times it is IMPERATIVE that the batteries are removed and stored safely from the remote-control handset and the gas burner TESC gas valve. Only remove the batteries from the TESC gas valve when the appliance is switched off, and only when the appliance is completely cold.
  • Page 37 will be a steady green (not flashing when held). You can now scroll through the settings of the handset adjusting by pressing + or - to adjust each setting and move on when set by pressing the set button, once all set keep pressing the set button until you leave the set-up menu.
  • Page 38 Using the handset Hold the handset as shown, wrapping your hand around the handset touching both sides. In a second or less the green unlock light will illuminate, allowing the buttons to work when pushed. (NOTE: If the green light is not a constant green or not illuminated at all the buttons will not be operable).
  • Page 39 Other Modes than Manual mode Depending upon the model of Fire your handset may be enabled to have some automatic features, namely, Thermostat mode, timed thermostat mode and snooze mode. Snooze mode can be selected to work with in conjunction with either manual or thermostatic modes. You can switch between modes at any time with the handset unlocked by pressing and releasing mode button to toggle between modes.
  • Page 40 -frost protection that has a snowflake symbol on the display – the default temperature setting is 5 C. Hold the handset and press and release the mode button several times as necessary until the display has a thermometer symbol flashing at the top of the display. Press the set button to enter this mode.

  • Page 41: Cleaning And Maintenance User Instructions

    the handset returns to manual mode. Timed thermostat mode (Closed fires Only) This mode enables the various day, night, and frost thermostat modes to be set on a program timer. The control will work as a thermostat switching between the day, night, and frost temperature settings in line with the program set.
  • Page 42 Cleaning and maintaining the exterior black painted surfaces. (Excluding the rear of the appliance)  Ensure the appliance is switched off, and only when the appliance is completely cold before you clean any part of the stove.  Protect all surrounding areas whilst stove cleaning. The steel outer case, excluding the rear of the appliance can be cleaned by using a lint free dry cloth from time to time.
  • Page 43 the battery compartment or on the battery contacts. Clean thoroughly if found as they must be spotlessly clean. After replacing the batteries, to clear the error code perform a start cycle by pressing the start button as normal, and then press again in the same way to attempt a new start cycle. If the gas fire is connected to a mains power supply, this must be isolated by a competent qualified electrician before attempting any works to the gas fire.

  • Page 44: Tesc Error Codes

    TESC Error Codes Code Comment Appearance Possible Cause Action TESC locked due to failed ignition Red Led is permanently Temporary air disturbance around Reset control by pressing start button for 1 second and releasing. The on TESC unit ( and E00 pilot burner press again the same way to attempt a normal start command.
  • Page 45 false flame signal Flame sensing on pilot before start Check if and clean around the area of the pilot for lint and other Reset and try again of ignition sequence or after valve contamination and clean. Check where the thermocouple connects to has shut off.
  • Page 46 Thermocouple doesn't reach final Replace Pilot Check and correct Thermocouple wiring. Replace thermocouple if Reset and try again current - damaged or aged necessary Check pilot connections Check and correct Thermocouple wiring. Replace thermocouple if Reset and try again necessary Pilot pipe may be blocked Clear pipe, replace pilot as necessary Reset and try again...

  • Page 47: Guarantee

    Newman Fireplaces Ltd are hereby expressly excluded. 10. Newman Fireplaces Ltd neither assumes nor authorises any third party to assume on its behalf, any other liabilities with respect to the sale of this Newman Fireplaces Ltd appliance.
  • Page 48 Any part of the gas appliance that is deemed to be faulty must be returned to Newman Fireplaces Ltd at their office address for evaluation against the guarantee.
  • Page 49 Annual service record issued to the purchaser by a Gas Safe registered installer and annual Chimney Sweeping Certificate. 17. Any work carried out under the guarantee MUST be authorised by Newman Fireplaces Ltd before commencing. This guarantee does not affect your statutory rights.
