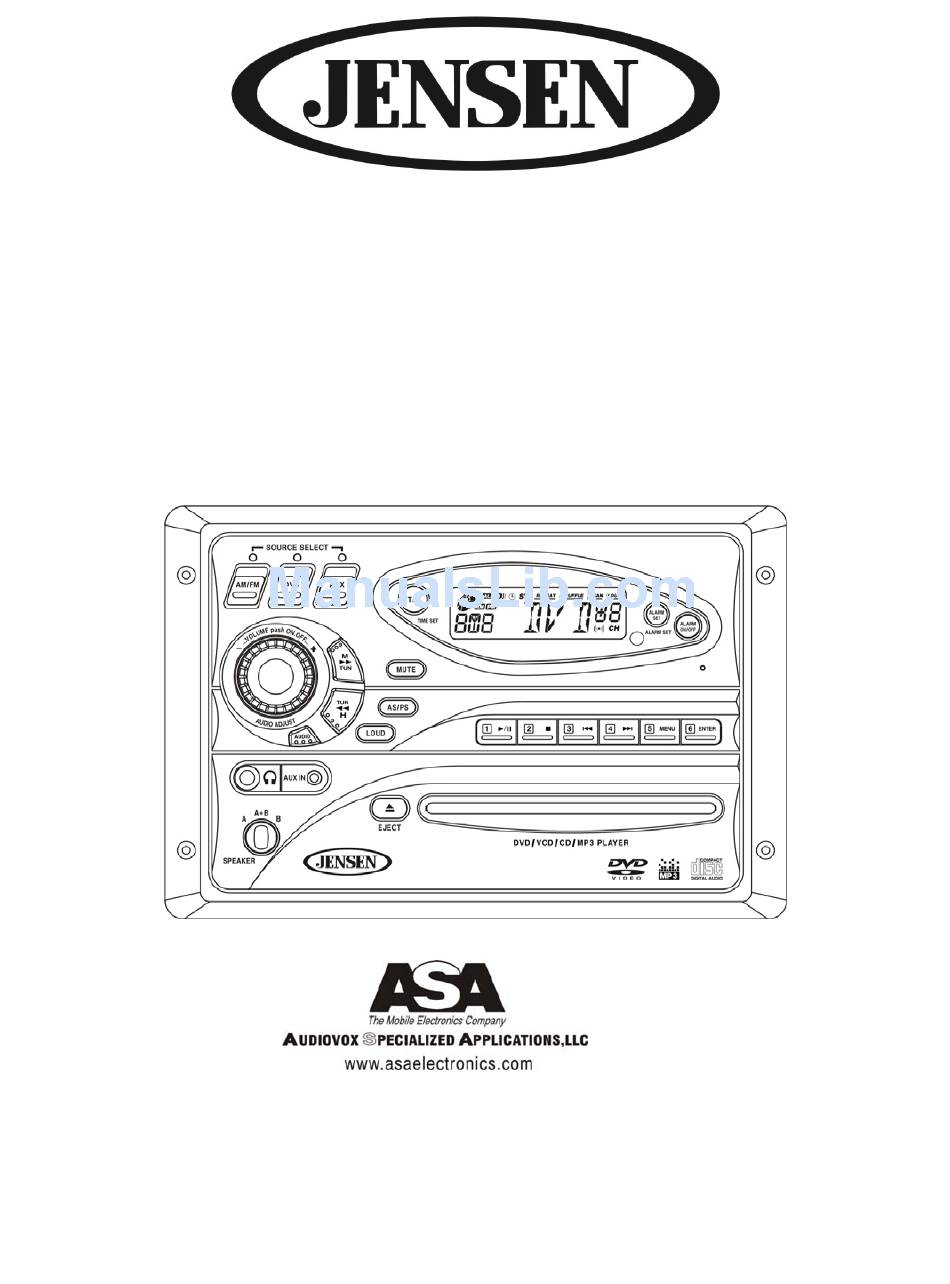

  • Page 1 AWM950 High Power AM/FM/DVD Player Owner’s Manual Designed Specifically for the Van and RV lndustries...

  • Page 2: Important Notes

    Thank you for your purchase of the AWM950. It is designed to give you good value and many hours of listening enjoyment. Please read this manual carefully, as it should be able to answer many of your questions about the operation and features of this product.

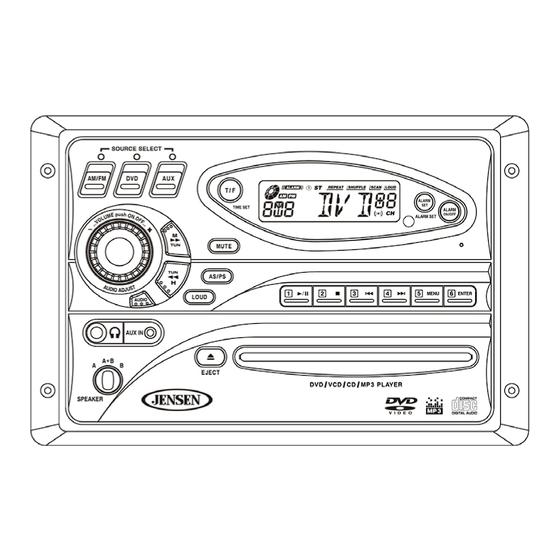

  • Page 3 8) Preset # 3 (Previous) / Preset # 4 (Next) 9) Preset # 5 (Menu) 10) Preset # 6 (Enter) 11) Preset # 1 (Play/Pause) / Preset # 2 (Stop) 12) DVD Player 13) Eject Button 14) Speaker Selector 15) 1/8” Auxiliary Input Jack 16) Stereo Headphone Jack...
  • Page 4 Remote Controls Identification Remote Controls Identification 1) Power 2) Source 3) Numeric Buttons 4) Mute 5) Tune Up 6) Tune Down 7) Previous 8) Left 9) Enter 10) Fast Reverse 11) Stop 12) Subtitle 13) Setup 14) Program 15) Audio (DVD) 16) Go To 17) Angle 18) Eject...
  • Page 5 Operating Instructions: NOTE: Number in parenthesis (#) corresponds with “Control Identification” on page 3. Note : Power can be turned on by pushing any button on the front of the AWM950. LIQUID CRYSTAL DISPLAY PANEL The liquid crystal display (LCD) panel displays the frequency, time and activated functions.
  • Page 6 3) Then press and hold one of preset buttons (8,9,10 or 11) for more than 3 seconds. DVD PLAYBACK OPERATIONS ***Please refer to the remote control figure on page 4. PLAY/PAUSE Press the button to play or pause. EJECT Press this button to load or eject disc. STOP Press this button once when playing, the unit stops and the stop location is memorized.
  • Page 7 You need to set up these items when you begin to play a DVD disc. When you start to play a DVD disc, the DVD player will automatically choose default language if the DVD player contains this language already.
  • Page 8 SCREEN SAVER This item is used to open/close SCREEN SAVER On: Screen saver will automatically be executed if the screen keeps still for whole fifteen minutes OFF : Screen saver would not be executed in any situation LOAD SETUP DEFAULT This item is used to restore all menus as factory defaults, except the item related to Parent Control Sub-item.
  • Page 9 AUTO NTSC SCAN MODE INTERLACED (Interlaced scanning) The default setting of the DVD player is INTERLACED (Interlaced scanning) BRIGHTNESS This item is used to adjust the BRIGHTNESS to your screen Press ENTER button to enter this item Press LEFT/RIGHT arrow buttons to adjust brightness...

  • Page 10: Audio Setup

    AUDIO SETUP CHANNEL 2CH STEREO – Select stereo 2CH LT/RT – Select left and right channel DIGITAL OUTPUT SET – Each DVD disc has its own Audio output options. You can set up the DVD’s Digital Audio Output according to your speaker system. This item contains ; DOLBY –...

  • Page 11: Setting The Alarm

    CHANGING PARENTAL CONTROL PASSWORD Use UP/DOWN arrow buttons to select Password item. Enter old 4 – digital security code Then enter new 4 digital security code Press UP/DOWN arrow button to exit Note : New 4 – digital security code will take effect after closing the Setup menu. NOTE : It is necessary to stop the disc playback if you want to enter the PREFERENCES MENU ITEM.
  • Page 12 Hook up wiring color code. WIRING COLOR CODE COLOR ORANGE/WHITE STRIPE GREEN/WHITE STRIPE BLACK/WHITE STRIPE WHITE VIOLET BLUE LIGHT GREEN VIOLET/BLACK STRIPE YELLOW LT GREEN/BLACK STRIPE RCA CONNECTOR RCA JACK (AUX-R) RCA JACK (AUX-L) WIRE/PLUG COLOR BLACK / YELLOW GRAY / YELLOW BLACK / RED BLACK / WHITE FUNCTION...
  • Page 13 Installation: 1) Cut a mounting hole in the desired location using mounting hole diagram (below) and use the four 3x20min self tapping screws provided to mount the unit. 2) Route power, speaker and antenna cables through hole and connect to unit as outlined in the Wiring Color Code diagram on the previous page.
  • Page 14 WARRANTY 90 DAY / 12 MONTH LIMITED WARRANTY AUDIOVOX SPECIALIZED APPLICATIONS, LLC (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced (at the Company’s option) without charge for parts and repair labor.
