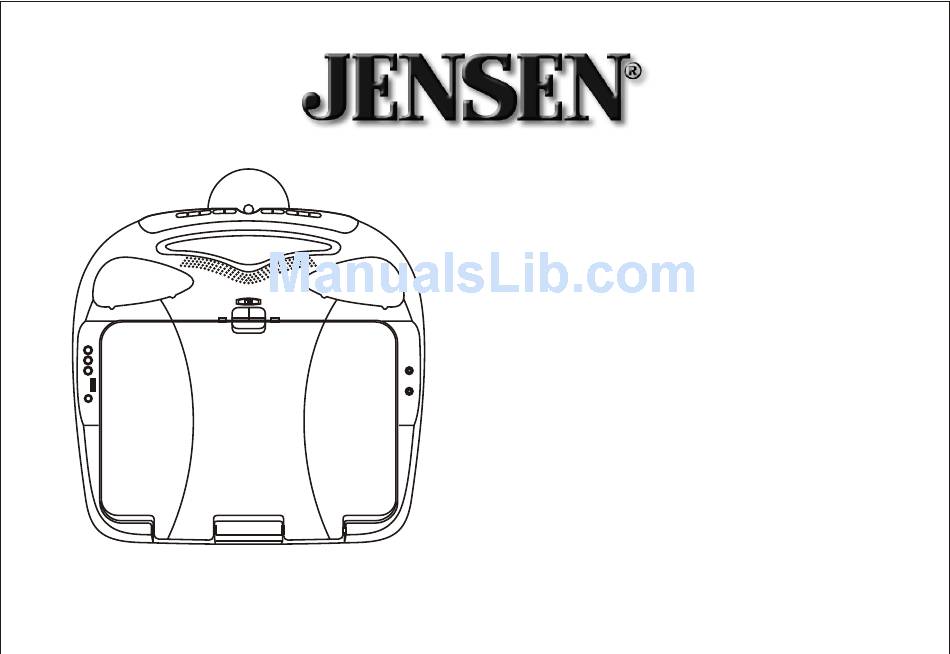

  • Page 1 JE17FDTV Owner's Manual Audiovox Specialized Applications, LLC www.asaelectronics.com...

  • Page 2: Important Notice

    Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...
  • Page 3 Congratulations on your purchase of the JENSEN JE17FDTV DVD Player with Drop-Down Video Monitor. The JE17FDTV has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment.

  • Page 4: Controls And Indicators Diagram

    CONTROLS AND INDICATORS DIAGRAM...
  • Page 5 CONTROL FUNCTION DESCRIPTION 1. Disc Insertion Slot For loading Disc. 2. POWER Button Use to turn the system ON / OFF. Bright red when system is on, dim when off. 3. SOURCE Select Use to select one of the four sources. (DVD, AUX / *GAME (Optional), AV1, TV) 4.
  • Page 6 11. Auxiliary Video Input 12. Auxiliary Audio Right Input 13. Auxiliary Audio Left Input 14. Game Port Connect the game controller (Optional) to this input to play a variety of video games. 15. Side Remote Sensor Eyes Allow the remote control to operate the system and to control other accessories in the system. 16.

  • Page 7: Remote Control Operation

    3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the unit and most Audiovox VCP’s. It is not a universal remote control and will not control equipment from other manufacturers.
  • Page 8 REMOTE CONTROL FUNCTION DESCRIPTIONS Function control is available on the unit and the remote control. ** Not used in this model *** Function control only available in TV mode. 1. POWER Button* Press this button to turn the unit on. Press the button again to turn the unit off. 2.
  • Page 9 Switches certain function keys on the remote control for DVD functions. 14. DISPLAY Button Press to display DVD Disc current information. Press DISPLAY button DVD Player Perform Once Display current TITLE , CHAPTER & elapsed time Twice Display current SUBTITLE 3 times Display current AUDIO language &...
  • Page 10 NOTE: The languages & tracks you can select are vary from disc to disc. 17. ZOOM Button Press this button to zoom the picture Press ZOOM button DVD Player Perform Once ZOOM picture 2 times Twice ZOOM picture 3 times...
  • Page 11 22. REV ( ) Button Allows the user to search in a backward direction at 2, 4, 8, 16 and 32 times the normal speed. 23. FWD ( ) Button Allows the user to search in a forward direction at 2,4,8, 16 and 32 times the normal speed. 24.
  • Page 12 30. Screen Mode Button Allows the user to change screen format ( Aspect Ratio, 4:3 or 16:9 ) 31. A-B Button Allows the user to repeat playback of a DVD or CD from point A to point B. 32. REPEAT Button Allows the user to repeat a chapter, title, track, or all of a DVD, CD or MP3.
  • Page 13 38. VOLUME UP (+) Button* Use this button to raise the volume level of the wired headphone jacks. It is also used to make picture adjustments in picture select mode. Note: The volume buttons will not affect the volume of wireless headphones or the wireless FM Modulator. When using these devices the volume must be adjusted with the wireless headphone volume control or with your radio’s volume control (see page 16, Headphones, or page 17, Wireless FM Modulator).
  • Page 14 The repeater function allows control of auxiliary equipment such as an Audiovox Video Cassette Player. The infrared sensor can relay signals from most manufacturer’s remote controls to its respective component connected to the AV 1 input.

  • Page 15: Connections And Setup

    CONNECTIONS & SETUP Complete Auto Channel Search MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER SETUP WRITE ERASE AUTO CH. SEARCH ANTENNA INPUT ENTER ANTENNA INPUT This part of the setup allows the TV to search for all channels viewable through your antenna or cable TV system.

  • Page 16: Closed Caption Menu

    TV FEATURES AND MENUS Closed Caption Menu MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER CLOSED CAPTION CAPTION 1 CAPTION 2 Many programs are encoded with closed-captioning information, which lets you display the audio portion of a program as text on the TV screen. 1.
  • Page 17 Picture Menu MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER PICTURE CONTRAST BRIGHTNESS COLOR SHARPNESS TINT RESET Zoom Mode Menu MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER ZOOM MODE 16:9 The PICTURE menu options apply to the video for the main TV and video input selections. 1.

  • Page 18: Setup Menu

    Setup Menu MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER SETUP WRITE ERASE AUTO CH. SEARCH ANTENNA INPUT The SETUP menu allows you to choose the signal type (ANTENNA INPUT) attached to your TV, build your TV’s channel list, and edit the channels within the list. NOTE: Before editing a channel, use the number buttons to enter the channel number that you want to edit before entering the menu system.

  • Page 19: Parental Controls

    Parental Controls MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER ENTER PASSWORD PLEASE ENTER YOUR PASSWORD ENTER PARENTAL CONTROL V-CHIP TV RATINGS MOVIE RATINGS CHANGE PASSWORD To access the PARENTAL CONTROL menu : 1. Make sure the remote is in TV mode by pressing the TV button. 2.
  • Page 20 Activating V-Chip MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER PARENTAL CONTROL V-CHIP TV RATINGS MOVIE RATINGS CHANGE PASSWORD Selecting this option lets you activate and deactivate parental control settings. 1. Make sure the remote is in TV mode by pressing the TV button. 2.
  • Page 21 MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL PARENTAL CONTROL V-CHIP TV RATINGS MOVIE RATINGS CHANGE PASSWORD TV RATINGS TV Y None TVY7 None TV G None TV PG None TV 14 None TV MA None V V F(V)TjET0.12 Adult languageNGS 0.10...
  • Page 22 Setting and Resetting Your Password MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER PARENTAL CONTROL V-CHIP TV RATINGS MOVIE RATINGS CHANGE PASSWORD Selecting this option lets you simply create a new password at any time. Once you enter a new password from the SET PASSWORD menu, it is the password you use until you change it again.

  • Page 23: Movie Ratings

    Movie Ratings MAIN MENU CLOSED CAPTION PICTURE ZOOM MODE SETUP PARENTAL CONTROL ENTER PARENTAL CONTROL V-CHIP TV RATINGS MOVIE RATINGS CHANGE PASSWORD ENTER MOVIE RATINGS VIEW BLOCK VIEW BLOCK PG-13 VIEW BLOCK VIEW BLOCK NC-17 VIEW BLOCK VIEW BLOCK The MOVIE RATINGS menu lets you decide which TV movies can and can’t be viewed according to the age-based rating of the MPAA (Motion Picture Association of America).

  • Page 24: Playing Discs

    Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 1. Other regional codes cannot be played in this unit. The unit will display “WRONG REGION.”...

  • Page 25: Settings And Adjustments

    SETTINGS AND ADJUSTMENTS The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on- screen display, limit playback for children, load default settings for the picture quality etc.
  • Page 26 MAIN PAGE TV DISPLAY The TV DISPLAY setup allows you to adjust screen aspect ratio. 4:3 PS This display a wide picture on the screen with a portion of the left & right side removed. 4:3 LB This displays a wide picture with black bands on the upper and lower portion of the screen. 16:9 This displays a wide picture with black bands on the upper and lower portion of the screen.
  • Page 27 ANGLE MARK The ANGLE MARK setup allows you to turn on/off the angle mark display on the screen. ON – The screen shows angle mark if an angle option is available on a DVD OFF – There is no angle mark display on the screen even through there is angle option available on a DVD.
  • Page 28 AUDIO SETUP PAGE EQ TYPE The equalizer allows you to choose from a variety of preset equalizer settings. The options are: OFF, ROCK, POP, LIVE, DANCE, TECHNO, CLASSIC and SOFT. V SURROUND (Virtual Surround) The Virtual Surround allows you to add a surround sound effect to the audio. ON –...
  • Page 29 PASSWORD SETUP PAGE PASSWORD CHANGE This item allows you to change the password. After you have selected the password change, the figure below is shown: Password Setup Page OLD PASSWORD Input the old password or the default password (4 digits) NEW PASSWORD Input a new password (4 digits) using the number buttons (0~9) CONFIRM PWD...
  • Page 30 PREFERENCE PAGE The setting in this page can only be made when the player is in the Stop mode or when there is no disc in the player. PARENTAL CONTROL This item allows you to limit movie playback from G to Adult. The lower the value, the more strict the control.

  • Page 31: Playing Dvds

    Playing DVDs Press the DISPLAY button on the remote control to display the status banner. Pressing the DISPLAY button consecutively changes the options as below. Press DISPLAY button Once Twice 3 times 4 times 5 times 6 times 7 times 8 times Selecting a Chapter You can skip to a specific chapter by using the numbers keys.
  • Page 32 Playing Audio DVDs When playing an audio CD, the DISPLAY banner appears automatically. It displays the current track playing, the total number of tracks and the elapsed time for the track playing. Pressing the DISPLAY button on the remote consecutively changes the options of the display. Press DISPLAY ×...

  • Page 33: Program Play

    3. After creating the programmed list, move the highlight to START, and then press ENTER to start playback of the programmed songs. When the playback of the programmed songs has finished, the DVD player stops and the program list is deleted. To repeat playing the program list, use the Repeat feature during the program playback.

  • Page 34: Playing Mp3 Discs

    MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R/CD-RW discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc.
  • Page 35 Skipping Songs Use the Next ( ) button on the remote control to move to the next song. Use the Previous ( Selecting a Play Mode You can choose what order the songs will play on a disc temporarily. The default play mode is FOLDER. Press REPEAT consecutively to choose the desired play mode.
  • Page 36 JE17FDTV WIRE POSITION IRT2 AUDIO LEFT (WHITE) IRT2 AUDIO RIGHT (RED) IR TRANSMITTER LED 2 PIN IR CONNECTOR DIN CORD YELLOW RCA (VIDEO) WHITE RCA (AUDIO LEFT) RED RCA (AUDIO RIGHT) 4 PIN POWER CONNECTOR NEGATIVE DOME LIGHT SWITCHING WHITE ENTRY SWITCT/NEGATIVE BLACK CONSTANT +12VDC/DOME...

  • Page 37: Troubleshooting

    TROUBLESHOOTING PROBLEM Poor TV Reception Poor radio reception (FM modulator installed) No power to LCD Power but no video or sound IR sensor inoperative • Perform auto programming of the tuner • Verify antenna condition. • NOTE: Due to the nature of TV signals, vehicle motion, direction the vehicle is facing, distance from the transmitter, nearby surroundings and weather may adversely affect TV reception.
  • Page 38 90 DAY/ 12 MONTH LIMITED WARRANTY AUDIOVOX SPECIALIZED APPLICATION, LLC (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced (at the Company's option) without charge for parts and repair labor.
  • Page 39 www.asaelectronics.com 06/2005...
