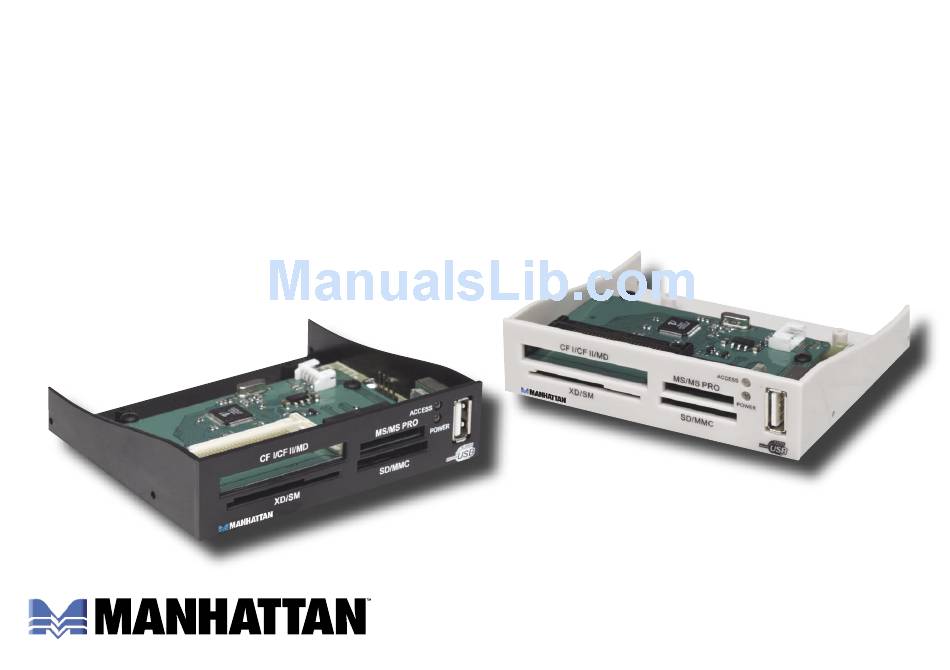

- Page 1 MULTI-CARD READER/WRITER USER MANUAL MODEL 700344/701419 MAN-700344/701419-UM-0107-03...

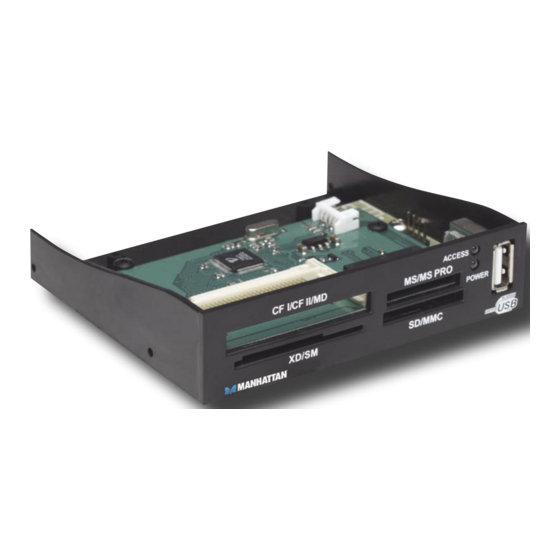

- Page 2 Thank you for purchasing the MANHATTAN Multi-Card Reader/Writer, Model 700344 (black) ® or Model 701419 (beige). Convert any unused PC bay into a digital content management center that lets you access picture files from memory cards without directly connecting a camera or other media device to the computer.
-
Page 3: Hardware Installation
HARDWARE INSTALLATION 1. Turn off the power to your PC and remove the two side panels as shown at right. 2. Using the split ("Y") end of the internal cable, make the connections as shown to the Card Reader’s circuit board (near right) and the USB pins (far right). - Page 4 3. Insert the Multi-Card Reader/Writer into the front panel of the PC. 4. Secure the Multi-Card Reader/Writer in place on both sides using the Side view enclosed mounting screws.
-
Page 5: Software Installation
5. Connect the other end of the internal cable to the USB pins on the PC’s motherboard. NOTE: The white dot inside the red highlight box at right indicates the postion of Pin 1. 6. Replace the side panels on the PC. SOFTWARE INSTALLATION Windows 98SE: 1. - Page 6 4. Click the CD-ROM icon, then double-click on the "Driver" folder. 5. Click "Setup.exe." 6. When the Welcome screen appears for the Card Reader’s InstallShield Wizard, click "Next." 7 . When the InstallShield Wizard Complete screen appears, select "Yes, I want to restart my computer now"...
- Page 7 Windows Me and XP: 1. With the Card Reader connected properly, turn on the PC. NOTE: It is not necessary to install a driver with Windows Me or XP. The system will automatically find the driver. 2. Four removable disk icons will appear on the My Computer screen, indicating that the Multi-Card Reader/Writer is...
- Page 8 1. Go to "Start" ‡ "Programs" ‡ "Multimedia Card Reader" ‡ "Memory Card Low Level Format." 2. Select the SMC/xD icon, then click "Low Level Format." 3. When prompted with "Low level format is completed. Please remove the card," click "OK" and remove the memory card.
-
Page 9: Specifications
SPECIFICATIONS Standards and Certifications • Hi-Speed USB 2.0; USB 1.1 • CE, FCC, RoHS, WEEE Connections • External USB USB 2.0 A-type female • Internal 4-pin USB connection (Molex) • Internal 5-pin connection for card reader (Molex) Supports: CompactFlash Type I/II, Extreme CF, Extreme III CF, Ultra II CF, CF High Speed, XS-CF, CF Elite Pro, CF PRO I/II, CF Picture, CF Wa, CF UltraX*, IBM and Hitachi Microdrive, MagicStore, Memory Stick, Memory Stick PRO, Memory Stick Duo*, Memory Stick PRO Duo*, Memory Stick Extreme PRO, Memory Stick Extreme III PRO, Memory Stick Ultra II PRO, MagicGate, MagicGate PRO, MagicGate Duo*,... - Page 10 General • LEDs: Power LED, Activity LED • Transfer rates: 480 Mbps / 12 Mbps / 1.5 Mbps • Material: plastic Environmental • Operating temperature: 0 – 70˚C (32 – 158˚F); storage temperature: -40 – 70˚C (-40 – 158˚F) • Operating humidity: 50% non-condensing; storage humidity: 95% non-condensing •...
- Page 11 NOTES...
- Page 12 Are you completely satisfied with this product? Please contact your MANHATTAN dealer with comments or questions. ® Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
