Summary of Contents for Manhattan 700344
- Page 1 Multi-Card reader/Writer uSer MaNual MODEL 700344/701419 MAN-700344/701419-UM-0107-05...

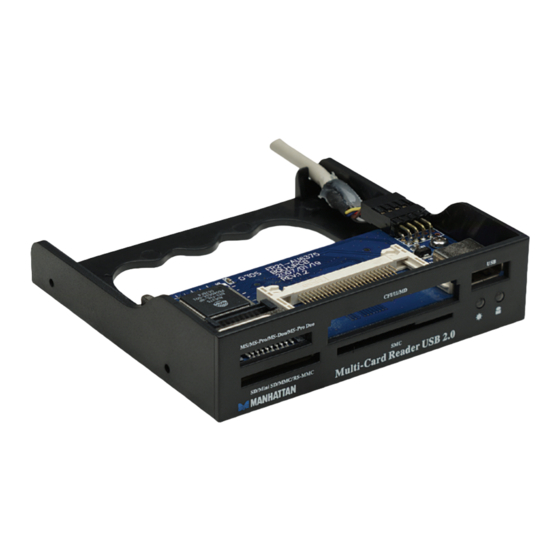

- Page 2 Thank you for purchasing the MANHATTAN Multi-Card Reader/Writer, Model 700344 (black) ® or Model 701419 (beige). Convert any unused PC bay into a digital content management center that lets you access picture files from memory cards without directly connecting a camera or other media device to the computer.
-
Page 3: Hardware Installation
hardWare iNStallatioN 1. Turn off the power to your PC and remove the two side panels as shown at right. 2. Using the split ("Y") end of the internal cable, make the connections as shown to the Card Reader’s circuit board (near right) and the USB pins (far right). - Page 4 3. Insert the Multi-Card Reader/Writer into the front panel of the PC. 4. Secure the Multi-Card Reader/Writer in place on both sides using the Side view enclosed mounting screws.
-
Page 5: Software Installation
5. Connect the other end of the internal cable to the USB pins on the PC’s motherboard. NOTE: The white dot inside the red highlight box at right indicates the postion of Pin 1. 6. Replace the side panels on the PC. SoftWare iNStallatioN Windows XP: 1. - Page 6 Memory Card Formatting: SM (SMC) and XD users may need to format their memory card(s) prior to use, indicated by a "write protection" or "read/write error" message. If this is the case, follow the steps below to use the attached program for formatting the memory card. 1.
-
Page 7: Specifications
SpeCifiCatioNS Standards and Certifications • Compatible with Windows 2000/XP/Vista • Hi-Speed USB 2.0; USB 1.1 General • CE, FCC, WEEE • LEDs: Power LED, Activity LED Connections • Transfer rates: 480 Mbps / 12 Mbps / 1.5 Mbps • External USB USB 2.0 A-type female •... - Page 8 PC Components, Peripherals, Cables ® and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
