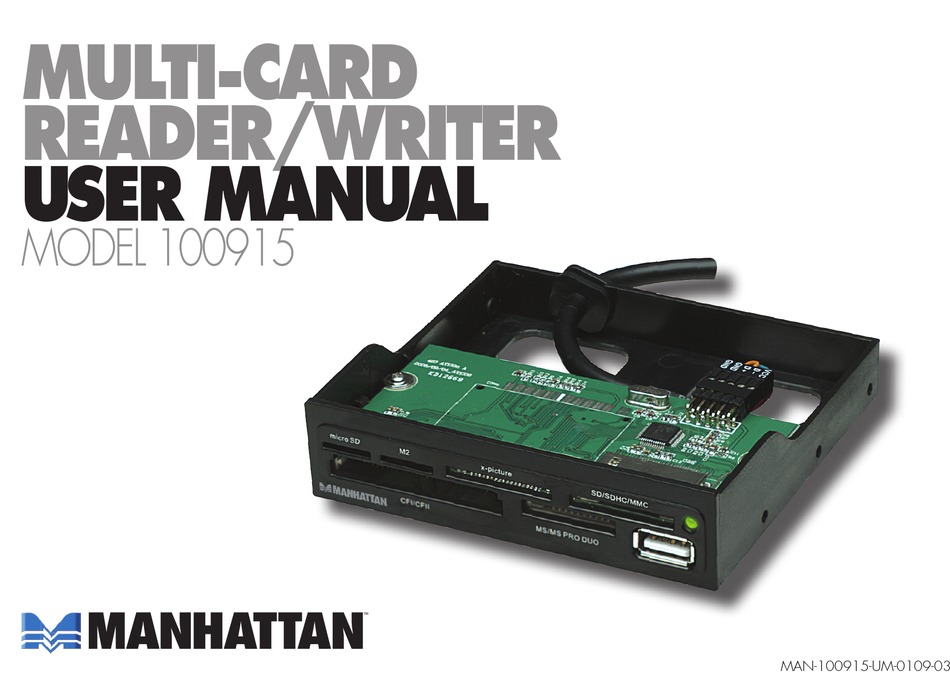

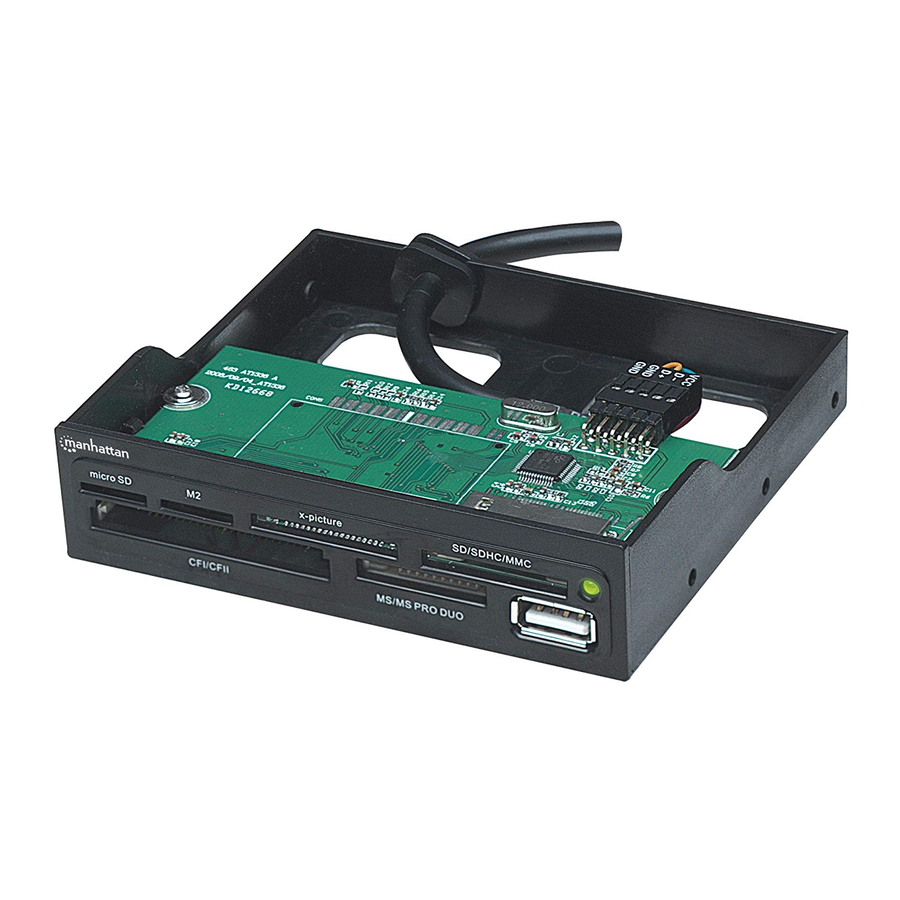

- Page 1 Multi-Card reader/Writer uSer MaNual MODEL 100915 MAN-100915-UM-0109-03...
- Page 2 Follow the simple instructions in this user manual and enjoy the benefits of these convenient features: • Compatible with CompactFlash, Microdrive, Memory Stick, MagicGate, SecureDigital, Multimedia and XD • Supports Automatic Card Detection and data transfer speeds up to 480 Mbps • Eliminates need for direct connection of media device to save battery power • Plug and Play; hot-swappable — Windows and Mac compatible • Lifetime Warranty NOTE: Installation images are representative of the full line of MANHATTAN Multi-Card Reader/ ® Writer models. Some devices or device parts may not look exactly like the model that corresponds to this manual; and software screen images may vary, depending on your operating system.
-
Page 3: Hardware Installation
hardWare iNStallatioN 1. Turn off the power to your PC and remove the two side panels as shown at right. 2. Using the split ("Y") end of the internal cable, make the connections as shown to the Card Reader’s circuit board (near right) and the USB pins (far right). - Page 4 3. Insert the Multi-Card Reader/Writer into the front panel of the PC. (As noted above, product images such as this one are only representative.) 4. Secure the Multi-Card Reader/Writer Side view, showing the in place on both sides using the approximate position of the mounting screw holes enclosed mounting screws.
-
Page 5: Software Installation
5. Connect the other end of the internal cable to the USB pins on the PC’s motherboard. NOTE: The white dot inside the red highlight box at right indicates the postion of Pin 1. 6. Replace the side panels on the PC. SoftWare iNStallatioN Windows XP: 1. With the Card Reader connected properly, turn on the PC. NOTE: It isn’t necessary to install a driver with Windows XP. - Page 6 Memory Card Formatting: XD users may need to format their memory card(s) prior to use, indicated by a "write protection" or "read/write error" message. If this is the case, follow the steps below to use the attached program for formatting the memory card. 1. Go to "Start"...
-
Page 7: Specifications
SpeCifiCatioNS Standards and Certifications Ultra II SD Plus, Ultra Speed SD, Ultra-X SD, MMC / • Hi-Speed USB 2.0; USB 1.1 MMC 4.0 / MMC 4.2, RS-MMC*, High Speed MMC / • CE, FCC, WEEE RS-MMC*, RS-MMC 4.0*, MMCmobile*, MMCplus*, XD / XD 1.21 Connections * Adapter required • External USB USB 2.0 A-type female • Internal 5-pin card reader / 4-pin USB (Molex) Environmental • Operating temperature: 0 – 70˚C (32 – 158˚F) General • Storage temperature: -40 – 70˚C (-40 – 158˚F) • LED: Power/Activity • Operating humidity: 50% non-condensing • Transfer rates: 480 Mbps / 12 Mbps / 1.5 Mbps • Storage humidity: 95% non-condensing • Material: plastic • Dimensions reader: 90 x 102 x 17 mm (3.5 x 4.0 x 1 in.) • Supports: CompactFlash Type I/II, CF 3.0, CF 4.0, CF • Dimensions USB cable: 70 cm (27 .5 in.) Elite Pro, CF High Speed, CF PRO I/II, Extreme CF, • Weight: 80 g (2.8 oz.) Extreme III CF, Ultra II CF, XS-XS CF, IBM and Hitachi Microdrive, MagicStor, Memory Stick, Memory Stick Duo, System Requirements Memory Stick Extreme III PRO, Memory Stick Extreme • I nternal USB connection PRO, Memory Stick Micro (M2), Memory Stick PRO, • W indows Me/2000/Server 2003/XP/Vista or Mac OS Memory Stick PRO Duo, Memory Stick PRO HG,... - Page 8 PC Components, Peripherals, Cables ® and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
