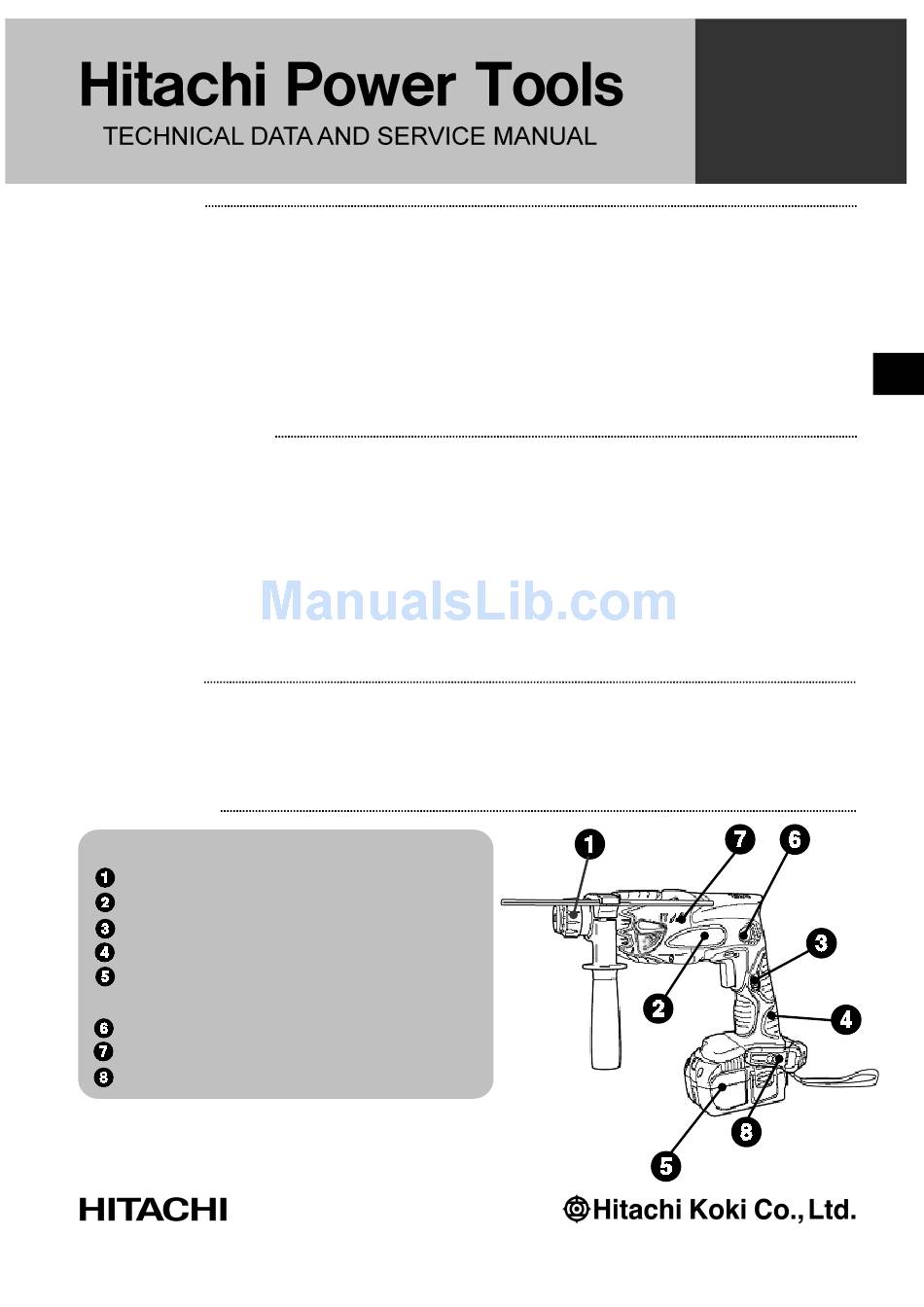

PRODUCT NAME
Hitachi 14.4 V Cordless Rotary Hammer
DH 14DL, DH 14DMR
Model
Hitachi 18V Cordless Rotary Hammer
DH 18DL, DH 18DM
Model
MARKETING OBJECTIVE
The Models DH 14DL and DH 18DL are cordless rotary hammers equipped with a 14.4-V lithium-ion battery and
a 18-V lithium-ion battery respectively.
The Models DH 14DMR and DH 18DMR are cordless rotary hammers equipped with a 14.4-V Ni-Cd battery and
a 18-V Ni-Cd battery respectively.
(1) Fastest drilling speed
(2) Compact and lightweight
(3) Switchable hammering force mechanism
(4) Soft grip handle
We aim to expand our market share with the new Models DH 14DL/DH 14DMR/DH 18DL/DH 18DMR.
APPLICATIONS
• Drilling anchor holes
• Drilling holes in concrete, tile, brick, and similar materials
• Drilling holes in steel and wood
• Tightening and loosening machine screws and wood screws
SELLING POINTS
[ NEW FEATURES ]
Fastest drilling speed
Compact & lightweight
Switchable hammering force mechanism
Soft grip handle
Li-ion battery for DH 14DL/DH 18DL,
Ni-Cd battery for DH 14DMR/DH 18DMR
Replaceable carbon brush for longer motor life
Idle striking prevention mechanism
With light hook
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
LIST Nos.
DH 14DL: G876,
DH 14DMR: G877,
DH 18DL: G878,
DH 18DMR: G879
Jul. 2007
R
International Sales Division
D
