Installation of the R5000

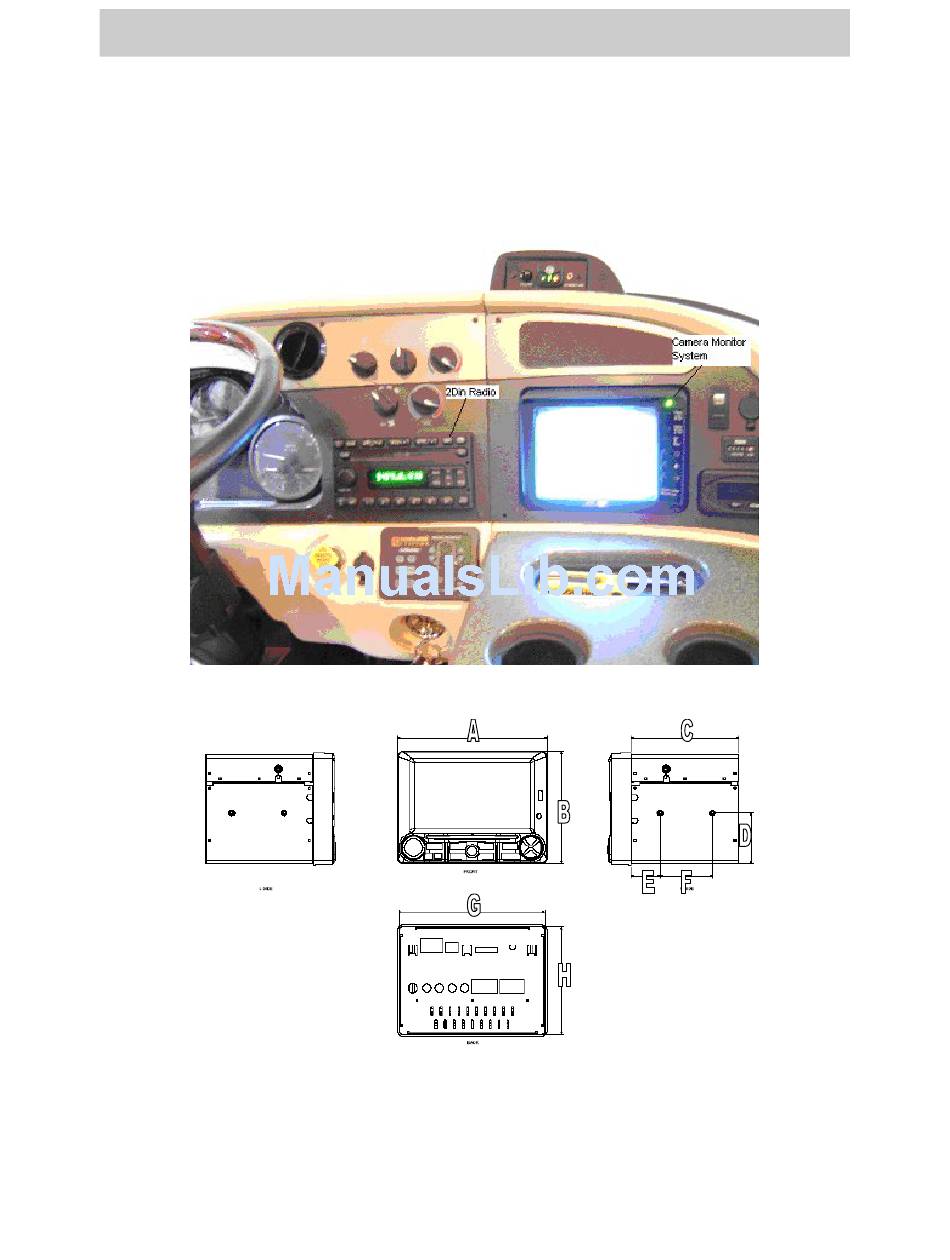

If the Coach has a Camera Monitor System, this is the ideal location for the R5000 Unit. The
R5000 unit is approximately the same size as most camera monitoring systems. If your Coach
does not have a Camera Monitor System, you may have to do some dash modifications. Choose
an appropriate place on the dash where the unit will not interfere with your view of the road.

Dimensions of the R5000

R5000 Dimensions Chart
A – 200.00 mm B – 150.00 mm C – 143.91 mm D – 67.78 mm E – 38.78 mm
F – 70.25 mm G – 196.00 mm H – 145.49 mm
