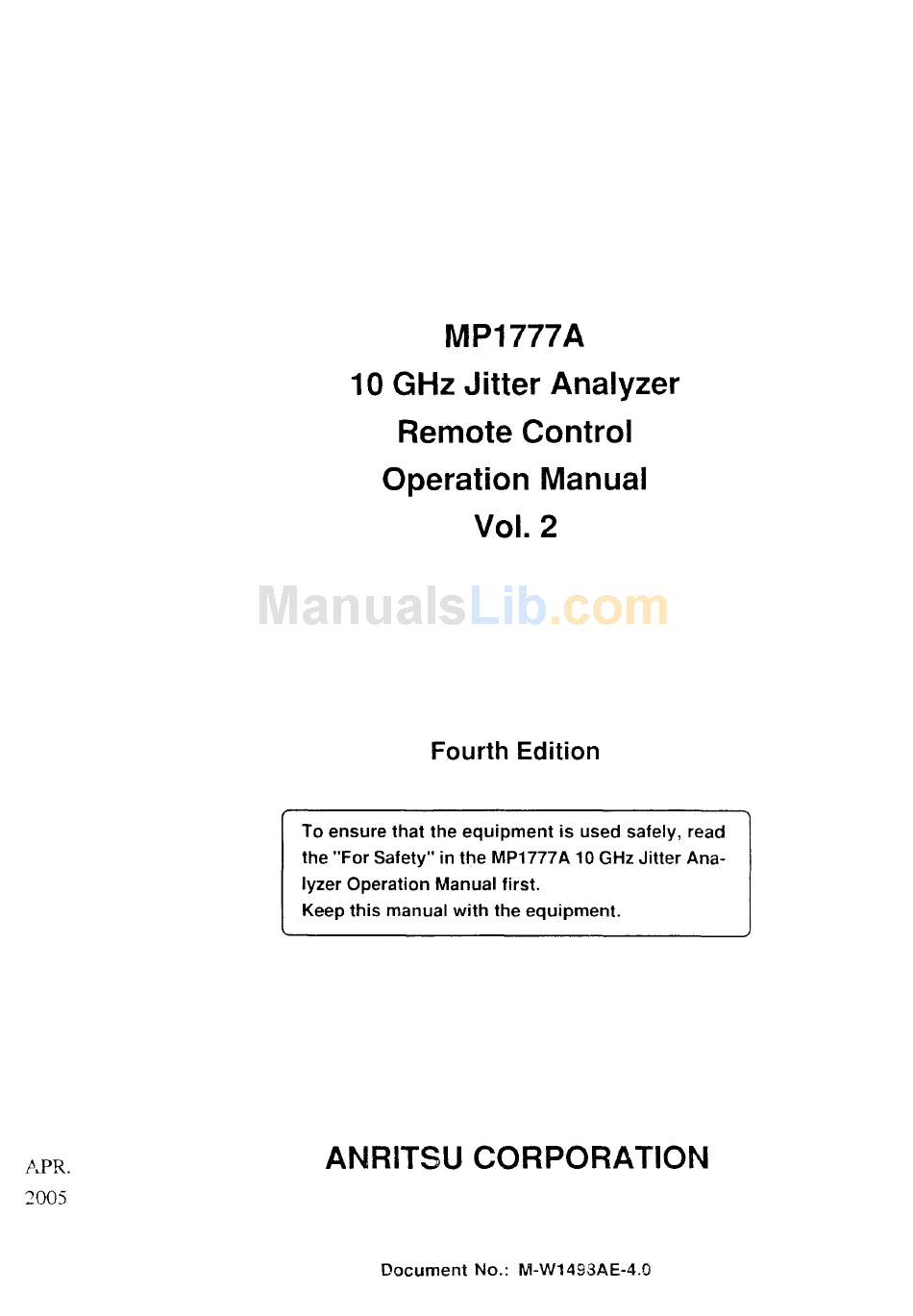

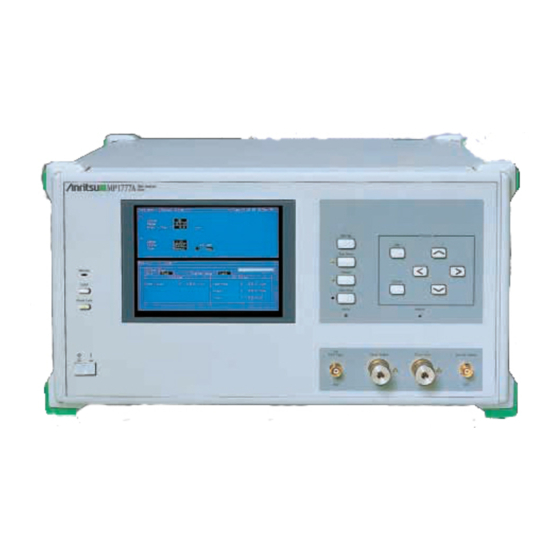

Page 1 Operation Manual Vol. 2 Fourth Edition To ensure that the equipment is used safely, read the "For Safety" in the MP1777A 10 GHz Jitter Ana- lyzer Operation Manual first. Keep this manual with the equipment. ANRITSU CORPORATION Document No.: M-W1493AE-4.0...
Page 2 To prevent the risk of personal injury or loss related to equipment malfunction, Anritsu Corporation uses the follow- ing safety symbols to indicate safety-related information. Insure that you clearly understand the meanings of the symbols BEFORE uslng the equipment. Some or all of the symbols may not be used on this equipment. In addition, when drawings are included in this manual, labels on the equipment may not be shown on them.
Page 3: For Safety
3. This equipment cannot be repaired by the user. DO NOT attempt to open the cabinet or to disassemble internal parts. Only Anritsu-trained Repair service personnel or staff from your sales repr.esentative with a knowl- edge of electrical fire and shock hazards should service this equipment.
Page 4 5. DO NOT short the battery terminals and never attempt to disassemble it Battery Fluid or dispose of it in a fire. If the battery is damaged by any of these ac- tions, the battery fluid may leak. This fluid is poisonous. DO NOT touch it, ingest it, or get in your eyes.
Page 5 Anritsu sales section or your nearest repre- back-up battery sentative. NOTE: Disposing the batteries 5. The main unit of the MP1777A uses lithium batteries. When d~sposing of the batteries, make sure to conform with the local regulation. For Safety CAUTION T _-A indicates a time-lag fuse Clean the power inlet regularly.
Page 7 Contact Anritsu Corporation I f [ h i \ t.ql!rpmtmt ilc\elop\ t;tt~it. coiitirit .-\r:r~t\u C o q m r a r ~ w repsc\i.nt:\:r\c\ ~ t \ thz aJdrc\> In tills iilarirul.
Page 8 Notes On Export Management T h ~ s product and its manuals may require an Export LicenseiApproval by the Government of the product's country of origin for re-export from your country. Before re-exporting the product or manuals, please contact us to confirm whether they are export-controlled items or not.
Page 9: Composition Of The Mp1777A Operation Manual
Composition of the MP1777A Operation Manual VOL 1 MP1777A Operat~on Manual Operat~on manual for the maln u n ~ t Operat~on manual for remote control _ __ _ - - -...
Page 10: Table Of Contents
Table of Contents For Safety Composition of the MP1777A Operation Manual Section 1 Outline 1 . 1 Interface Function ... 1-2 . 1 2 System Setup Example Section 2 GPlB Interface 2.1 GPlB Interface Functions 2.2 Device Message List ...
Page 11 Section 6 Status Report 6.1 Conficjurat;on of hlP1 777A Status Registers 6.2 Status Registers Spec~fied by IEEE438.2 6.3 Status Register Specifled by SCPl 6.4 Status Register Specific to MP1777A 6.5 Reading. Writing and Clearing Status Reg~sters SCPl Section 7 Outline Outline 7.2 Command Structure...
Page 13: Section 1 Outline
In!s:face Function Syskn; Setup Example Outline...
Page 14: Interface Function
Section 1 Outline Interface Function MP1777A connector for remote control on the back face. Remote control of devices is enabled by fitting GPIB. The GPIB setting is performed on the Secondary system screen in the Main setup screen. GPIB interface: The GPIB interface for this device conforms to the IEEE (Institute of Electrical and Electronic Engi- neers) standards, 488.1-1987.
Page 15: 2 System Setup Example
System Setup Example Control from a host computer \i'hec dc\.ice hn\t C O I I I ~ L I ~ L , ~ . conrlec,tecl ~ t l r ptsforrllh ;iutoril:ttlc m c ~ ~ \ i ~ r t . r l l c : ~ i l . Host compllter Fig.
Page 16 Section Outline...
Page 17: Section 2 Gplb Interface
Section 2 GPlB Interface 2.1 GPlB Interface Functions 2.2 Device Message List 2.3 Bus Commands Connect~ng the GPlB Cable 2.5 Sett~ng GPlB 2.6 lnitial~z~ng the Device 2.6.1 ln~t~alizing the Bus 2.6 2 lnltializing the Message 2.6.3 Initializing the Device 2.6.4 Device Status at Power Activation...
Page 18 Section 2 GPIB lnterface GPIB lnterface Functions This device only functions as a device and does not function as a controller. Accordingly, the following functions. Table 2-1 GPIB lnterface Functions Cord Interface Function All the source handshake functions is available. All the acceptor handshake functions is available.
Page 19: Device Message List
Device Message List I)<\ icc Ilrc\\ase\ Lire d,lta nlc.;;i_rc\ (I:II:I h u \ tht, ri~oile liv~l the I(> ( ~ i r-c\po~i\e me\\age\. 1 ' 1 1 ~ p r o p r n rnt.i.;'tgei ;\SC'II d,ita rne\\;ige\ tr-an\fcrreil f r o n ~ the controller :Ire t ~ - ;...
Page 20: Bus Commands
Section 2 GPIB Interface Bus Commands Bus commands refer to internal interface communications exchanged when the bus is set to the command mode (when the ATM line is set at "L"). The table below shows a list of bus commands. Table 2-4 Details of Bus Commands Bus Command DCL (Device clear)
Page 21: Connecting The Gplb Cable
Connecting the GPIB Cable Connecting the GPIB Ca Fig. 2-2 Sketch GPlB Cabi2...
Page 22: Setting Gplb
Section 2 GPlB Interface Setting GPlB GPIB To use a remote interface, set the device to the local mode and set the address by performing key input on the front panel. Table 2-5 Details of Setting Setting Item Address setting Address Perform the setting shown above on the Secondary system screen in the h h i n setup screen.
Page 23 Setup System Buzzer Date Time adjust & Address Fig. Secondary System Screen (When GPlB Interface 1 1 : 00 : 17 01iJan195 Setting GPlB Used)
Page 24: Initializing The Device
GPIB Section 2 Interface Initializing the Device IEEE488.2 st~pulates three levels of system initialization: initialization of the bus, message and device. Table 2-6 Types of System lnitialization Level Type of Initialization Initialization of the bus Initialization of the message Initialization of the device 2.6.1 lnitializing the Bus IFC:...
Page 25 2.6.3 Initializing Device ,KS'I': Inrti,il~zat~m of the d e \ 2.6.4 Device Status at Power Activation tlic .KS1 cornril,inci ici. b> 2.6 Initializing the Device...
Page 26 Section 2 GPIB Interface...
Page 27 ection Listener Input Format 3.1 Listener Input Program Message Format 3.2 Functional Elements of Program Message 3.2.1 <TERMINATED PROGRAM MESSAGE> 3.2.2 iPFiOGRAM MESSAGE TERMINATOR> 3.2.3 <white space> 3.2.4 <PROGRAM MESSAGE> 3.2.5 <PROGRAM MESSAGE UNIT SEPARATOR> 3.2.6 <PROGRAM MESSAGE UNIT> 3.2.7 <COMMAND MESSAGE UNIT>...
Page 28: Section 3 Listener Input Format
Section 3 Listener lnput Format Listener lnput Program Message Format The following section shows program messages when, for example, reception signal is set to 9953M. *ddreSS 3 L~stener address spec~ficat~on Listener WRITE @03 SENS : ": (device) <PROGRAM MESSAGE UNIT> : SENS : TEL : RANG U14 <COMMAND PROGRAM HEADER>...
Page 29: 3.1 Listener Input Program Message Format
URI I F* ~ r : d . \ I > t ~ k c the tolloutng forrn,~tj io11111i~nt1~ WRITE Outputs data to the devlce MFormat WRITE @ <Example> The same as the example given on the previous page. WRITE iin case that the GPlB address of the 10 READ @ Subst~tutes the data Input froin the d e v ~ c e to the var~dble...
Page 30: Funct~Onal Elements Of Program Message
Section 3 Listener Input Format Functional Elements of Program Message This measuring instrument accepts the program message by detecting the terminator located at the end of the program message. The following section explains each functional element of the program message. 3.2.1 <TERMINATED PROGRAM MESSAGE>...
Page 31: Program Message
3.2 Functional Elements of Program Message <PROGRAM MESSAGE TERMINATOR> <wh~te space> Refer to 3 2 3 1...
Page 32 Section 3 Listener Input Format The <PROGRAM MESSAGE> is defined as follows. The <PROGRAM MESSAGE> is composed of a sequence of zero, one or multiple <PROGRAM MESSAGE UNIT> elements. The <PROGRAM MESSAGE UNIT> elements signify programming instructions or data to be sent from the controller to this measuring instrument.
Page 33: Program Message Unit Separator
3.2.5 <PROGRAM MESSAGE UNIT SEPARATOR> T h e h ~ t e \pace> defined a\ tollou <PROGRAM MESSAGE UNIT> 3.2.6 Functional Elements of Program Message < w h ~ t e space --C? character> Refer 3 2 7 - - - _ I <QUERY MESSAGE UNIT2 Refer 3 2 7...
Page 34: Command Message Unit> And
Section 3 Listener Input Format <COMMAND MESSAGE UNIT> and <QUERY MESSAGE UNIT> 3.2.7 (1) The <COMMAND MESSAGE UNIT> is defined as follows. <COMMAND PROGRAM HEADER, Example: Sets the data. <PROGRAM DATA, SYST : DATE 1993,7,15 <PROGRAM HEADER SEPARATOR> <PROGRAM DATA SEPARATOR,...

Page 35 <QUERY PROGRAM + - - - - - h HEADER> Refer CALC Functional Elements of Program Message / < F ~ O G R A M ' <PROGRAM - - - HEADER <PROGRAM DATA> -----*Y SEPARATOR> ,Refer to 3 2 lo,, DATA? 1995, 3,27,12.54 ----- DATA...
Page 36 Section 3 Listener Input Format <COMMAND PROGRAM HEADER> 3 . 2 . 8 The <COMMAND PROGRAM HEADER> is defined as follows. The <while space> can be placed before each header. <white space> Refer to 3.2.3 ( 1 ) The <Instrument-Control H e a d e r s are defined as follows. (2) The <common command program header>...
Page 37 3.2 Functional Elements of Program Message 3.2.8.1 <COMMAND PROGRAM HEADER>...
Page 38 Section 3 Listener Input Format 3.2.9 <QUERY PROGRAM HEADER> The <QUERY PROGRAM HEADER> is defined as follows. The <white space> can be placed before each header. <white space> Refer to 3.2.3 ( 1 ) The <Instrument-Control Headers> are defined as follows. <short form <long form mnemonic>...
Page 39 Functional Elements of Program Message 3.2.1 1 <PROGRAM DATA SEPARATOR> - - - C 7 - - - Refer to 3.2 3 Refer to 3.2.3 : SYST : DATE 1993,7,15 PAL4 3 , " -...
Page 40: Program Data Format
Section 3 Listener Input Format Program Data Format This section provides explanations of the format of <PROGRAM DATA> illustrated by the functional syntax diagram of 3.2.7 the Section "<COMMAND MESSAGE gram messages terminated as mentioned in the earlier sections. The functional elements of <PROGRAM DATA> are used to transfer parameters of various types related to the program header.
Page 41 3.3 Program Data Format <program m n e i n o n m Refer to (31 of 3 2.8 SENSe . fvlEASure TYPE SlNGle (Mnemon~c: data to express s~ngle measurement)
Page 42 Section 3 Listener Input Format <DECIMAL NUMERIC PROGRAM DATA> 3.3.2 <DECIMAL NUMERIC PROGRAM DATA> ( I ) The <mantissa> is defined as follows. (2) The <exponent> is defined as follows. This measuring instrument uses the integer type of decimal digits. Integer type Expresses the integer values of decimal digits.
Page 43 3.3.3 <BOOLEAN PROGRAM DATA> .;BOOI~E.\N PRC)(iII!\%I l>.\.l',A-. reiri-\ i'lic A \ L:IILIC\ i ~ ) i ~ - t ' \ p ~ i ~ i t h ~ iriitii :tnd t a l \ ~ t \ . 1)!X'I%l;\I. NL'MERIC 1'kOCiK.-\\I I).\T.\..
Page 44 Section 3 Listener Input Format...
Page 45: Functional Elements Of Response Message
ection 4 Talker Output Format 4.1 Talker Output Response Message Format 4.2 Functional Elements of Response Message 4.2.1 <TERMINATED RESPONSE MESSAGE> 4.2.2 <RESPONSE MESSAGE TERMINATOR> 4.2.3 <RESPONSE MESSAGE> 4.2.4 <RESPONSE MESSAGE UNIT SEPARATOR> 4.2.5 <RESPONSE MESSAGE UNIT> <RESPONSE DP. 4.2.6 <RESPONSE DATA>...
Page 46: Section 4 Talker Output Format
Section 4 Talker Output Format 4 . 1 Talker Output Response Message Format The figure below shows responses to the query for the selection of the receiving jitter range, to the query for the sign speed of the received signal, no header, the response only consists of data.
Page 47: Functional Elements Of Response Message
Functional Elements of Response Message 4.2.1 <TERMINATED RESPONSE MESSAGE> --TI K h I I h P I ) KL 4 P O h \ I kI1-54 I G F > l l i c <RESPONSE MESSAGE> Ltsteier idevlce) L - - _ _ A Esiirnple: Itldicates exi~mple...
Page 48 Section 4 Talker Output Format The <RESPONSE MESSAGE> is defined as follows. The <RESPONSE MESSAGE> is composed of a sequence of one or multiple <RESPONSE MESSAGE UNIT> ele- ments The <RESPONSE MESSAGE UNIT> element signifies a single message to be sent from this measuring instrument to the controller.
Page 49: Response Message Unit Separator
<RESPONSE MESSAGE UNIT> 4.2.5 4.2.6 <RESPONSE DATA SEPARATOR> Functional Elements of Response Message ' <RESPONSE DATA ---* SEPARATOR> Refer to - - , - - / I <RESPONSE DATA> Refer to...
Page 50: Response Data
Section 4 Talker Output Format 4.2.7 <RESPONSE DATA> The shaded sections in the figure below refer to the <RESPONSE DATA> used by this measuring instrument The response data to be returned depends on the query message. RESPONSE DATA> RESPONSE DATA> <OCTAL NUMERIC SPONSE DATA>...
Page 51 Common1 EE488.2 Commands Common IEEE488.2...
Page 52: Section 5 Common Ieee488.2 Commands
Section 5 Common IEEE488.2 Commands Common IEEE488.2 The table below lists common IEEE488.2 commands supported by this device. Table Mnemonic *IDN? Identification Query *OPC Operation Con~plete Command *OPC? Operation Complete Query *WAI Wait Continue Command *CLS Clear Status Command *ESE Standard Event Status Enable Command *ESE? Standard Event Status Enable Query...
Page 53: Common Ieee488.2
IDN? Identification Query <:'IKBITRAKL' .-'iSC'II RESl'ONStr. L):\?.A> < N m e of product ni:tri~~f:~cturt'r>. 4 l o d C l name>. < S c r ~ a l t h ~ \ d e \ ~ c e : ANKITSV. MP1777.4. 0. 01 f-urict~o~l Kcports data i r i c l ~ ~ d i n g the name .OPC...
Page 54 Common IEEE488.2 Commands Section *CLS Clear Status Command Parameter None Function Clears all the status composition excluding the output queue and MAV summary message However, the enable register and Transition filter are not cleared. Clears both the output queue and MAV bit when *CLS is sent immediately after GRAM MESSAGE TERMINATOR>, and at the same time, before the <Query MESSAGE UNIT>...
Page 55 sSRE Service Request Enable Command f J , ~ r m e t c r ti11 CIhl \ I \,LI"LII. IKIC I'KO(iK4M L14 1 A > enable regi\tcr. Set 1 for enable anti 0 for di\ahls. See the S r c t ~ o r ~ for the "Statu\ Service Request Enable Query I SI'\!I-:[.11C' RESPONSE <NK...
Page 56 Section 5 Common IEEE488.2 Commands Power On Status Clear Command Parameter <DECIMAL NUMERIC PROGRAM DATA> O ... Function Determines whether or not to clear each enable register of the service request, standard event status and parallel poll of the status report module when the power is switched ON. When the mode is set to 0.
Page 57 *RCL Recall Command Parameter <DECIMAL NUMERIC PROGRAM DATA> 0 to 10 Function Calls the memory of a specified number and, by doing so, returns the device to the previous state. There is no limit to the state to be loaded. See the Table 7-1 in the Section 7.5 "Parameter". As an SCPI command which has the same function, able.
Page 58 Section 5 Common IEEE488.2 Commands Element Expresses short mriemonic data. CHARACTER RESPONSE DATA Example: DEFG Expresses integer values of decimal digits. (2) NR 1 NUMENIC RESPONSE DATA Example: +I23 -1233 (3) NR2 NUMENIC Expresses fixed point numerical values. RESPONSE DATA Example: 12.3 +12.34...
Page 59 Element ( 5 ) STRING Expresses character string in double quotations RESPONSE DATA Example: "1233" "ABCD" 1234.5" " (6) ARBITARY ASCII Sends ASCII data bytes excluding the RESPONSE DATA son, NLAEND (or NL only) is placed next to the last data, and the data i, accordingly ter- Example: minated without an exit point.
Page 60 Section 5 Common IEEE488.2 Commands...
Page 61: Section 6 Status Report
Section 6 Status Report The configuration of the status registers of the MP1777A conforms to the SCPI stipulations. (SCPI: Standard Command for Programmable Instruments, see the Section 7 for more information.) This section provides descriptions of the configuration of status registers and definition of the status register bit specific to the device.
Page 62 Section 6 Status Report Configuration of MP1777A Status Registers SCPI stipulates that the status register configuration must conform to the configuration specified by incorporate the SCPI OPERation status register and QUEStionable status register specific to SCPI. The figure below shows a simple block diagram of status registers mounted on this device. (Explanations of the bit...
Page 63 Stores the output of the transition filter. Event register Event enable register Selects the bit of corresponding Event Reg~ster to trigger a s h ~ f t of summary message to true. 6.1 Configuration of MP1777A Status Registers IEEE488.2 are configured follows.
Page 64: Status Registers Spec~Fied By Ieee438.2
Section 6 Status Report Status Registers Specified by IEEE488.2 IEEE488.2 specifies the two status registers shown below. Table 6-2 Definitions of Status Registers Specified by IEEE488.2 Status Register Status byte register A register to set RQS and seven summary message bits. Being used in combination with the service request enable register, this register sets SQR ON when the logical OR of the two is not zero.
Page 65 The tables below show the definition of register bit specified by Table 6-3 Definition of Status Byte Register Bit Status Byte Register (ErrorEvent QUEue) (Massege Available) (Event Summary Bit) (Request Service) (Master Summary Status) OPER (OPERation status register summary) Table 6-4 Definition of Standard Event Status Register Bit Standard Event Status Register (Operation Complate)
Page 66: Status Register Specifled By Scpl
Section 6 Status Report Status Register Specified by SCPI The following section shows the definition of the register bit specified by SCPI. OPERation Status register NOT USED NOT USED NOT USED NOT USED MEAS NOT USED To the status NOT USED byte register (Bit 7) NOT USED NOT USED...
Page 67: Status Register Specific To Mp1777A
Table 6-6 Definition of INSTrument Status Register Bit INSTrument Status Register (End Of Test period) (UNLock) (Alarm Change) 6.4 Status Register Specific to MP1777A To the OPERation status register (Bit 13) Definition Indicates that the test (measurement) has finished. Indicates that Unlock has taken place.
Page 68: Reading. Writing And Clearing Status Reg~Sters
Section 6 Status Report Reading, Writing and Clearing Status Registers Reading and writing methods The table below shows the methods of reading and writing the details of status Table 6-7 Reading and Writing Methods of Status Registers Register Serial poll Seven-bit status byte and RQS message bit are retumed.
Page 69 (2) Clearing and resetting methods The table below shows clearing and resetting methods of status registers and the range of their effects. Table 6-8 Clearing and Resetting Methods of Status Registers Register *RST *CLS Status byte register No change Clear Service request No change No change...
Page 70 Section Status Report...
Page 71 Section 7 SCPI Outline The MP1777A adopts SCPI (Standard Commands for Programmable Instruments) as commands to perform remote con- trol. This section provides the outline of SCPI and explanations This section and subsequent Sectlons describe the examples of command use and response as follows.
Page 72: Outline
Section 7 SCPI Outline Outline SCPI is a device command language defined by the SCPI consortium and is independent from the hardware. SCPI is designed to shorten the period for development of automatic measuring instrument (ATE). For this reason, the programming environments such as the device control and data handling are made consistent.
Page 73: Command Structure
Command Structure The SCPI command form a hierarchical structure. Commands are divided into groups, each of which consists of com- mands of similar functions, and each group forms This specification expresses these subsystems by the command tree as shown below. SCPI allows the same headers to be present in a tree and the difference in the location of the header corresponds to the difference in the function.
Page 74: Section 7 Scpl Outline
Section 7 SCPl Outline Command Description Met hod : SOURce : TELecom : BRATe ~ b r a t e > : SOURce : TELecom : BRATe? : SOURce : TELecom : EQUAlizer <boolean> : SOURce : TELecom : EQUAlizer? Fig.
Page 75: Compounding Commands
Compounding Commands Commands can be compounded by using semi-colon The second command is also referenced as the command located at the same level as the lowest hierarchical level of the first command. For this reason, the second command can be described in a full path as shown by Example 1. However, as Example 2 shows, headers located in the layer above Type can also be abbreviated.
Page 76: Parameter
Section 7 SCPI Outline Parameter The table below shows types of parameters used by this measuring instrument This operation manual expresses parameter types in lowercase characters enclosed by angled brackets table below. Moreover, the <PROGRAM DATA> type corresponding to the parameter type, specified by IEEE488.2 (or SCPI), is expressed in uppercase characters.
Page 77: Response Format
Section 8 Device Message Details This section provides detailed explanations of the device messages supported by the MP1777A Examples of command use and responses are described as follows in this Section. > Program message (program command and query command) < Response 8.1 Response Format ...
Page 78: Response Format
Section 8 Device Message Details Response Format This section explains the format of the rehponse to the query command The format is shown in the table below. Table 8-1 Response Format (By Response Type) Response Type Makes the number of digits of the response variable and sets the maximum number of <numeric>, <year>...
Page 79 Table 8-2 Details of Response Format Format "XXXX" "XXXX" "XXX.XN "XX.XXW "XX.XX" "XX.XX" "X.XXXM Form 6 t Y Pe When 0.000 Value _< 3,232 In the 3,200 U1 Range UIPP When 0.000 I Value I 16 in the 1,600 UI Range UIPP When 0.000 I Value 1 8 0 8 .
Page 80: Buffer Size Stipulations
Section 8 Device Message Details Buffer Size Stipulations A response in the format explained earlier is sent from the device to the controller. Therefore, the controller must have a buffer of a size enough to accept the response. When the commands of this device used, a maximum of 255 bytes of buffer space will suffice.
Page 81: Devics-Specific C O M M A ~ D S
Device-Specif ic Commands The following section provides details of the device-specific commands. As the command descriptions are classified by the subsystem, see the Appendix and screens for more information on the correspondence with screens. Incidentally, the device-specific commands supported by this device are sequential commands with some exceptions An explanation is glven for commands other than sequential commands every time they come up.
Page 82 Section 8 Device Message Details <Program Query Command> The details of a response are omitted when a program command to correspond to the query exists. (The same as the details of the parameter of the program command) Parameter type (SCPI, device-specific) Query command SENS : TEL : RANG?
Page 83 8.3.1 INSTrument Subsystem The INSTrument subsystem is used to specify the same setting for the transmission and reception or independent setting for each. : COUPle INSTrurnent COUPle? INSTrument COUPle <mode> Command type Sequential command Parameter <mode> <CHARACTER PROGRAM DATA> NONE ... Tx/Rx (Independent) Specifies the selection of whether to establish the same setting for the transmission and Function reception modules or independent setting for each.
Page 84 Section 8 Device Message Details 8.3.2 SOURce Subsystem The SOURce subsystem controls (setting and display) the transmission side. : BRATe? : EQUAlizer : EQUAlizer? : JITTer : JITTer? : OFFSet OFFSet? : RANGe : RANGe? : AMPLitude? : SOURce : SOURce? <brate>...
Page 85 : SOURce : TELecom : BRATe <brate> Command type Sequential command Parameter <brate> <CHARACTER PROGRAM DATA> (Standard) M2,488 ... 2,488 Mbit/s M4,977 M9,953 ... 9, 953 Mbit/s (Option 01) M2494 M4988 ... 4,988 Mbit/s M9977 ... 9,977 Mbit/s (Option 02) M2666 M5332 ...
Page 86 Section 8 Device Message Details SOURce : TELecom : EQUAlizer <boolean> Command type Sequential command Parameter <boolean> 0 ... OFF or or 1 ... Sets ON/OFF of the Jitter Setting Equalizer. Function Example of use Sets the Jitter Setting Equalizer ON. >...
Page 87 : SOURce : TELecom : CLOCk : SOURce? Command type Sequential command Response <csource> LOCK ... Lock REC ... Receive Function Makes a query of the clock source of the transmission signal. > Example of use SOURce < INT SOURce : TELecom JlTTer <boolean>...
Page 88 Section 8 Device Message Details : SOURce : TELecom : OFFSet <numeric> Command type Sequential command Parameter <numeric> +50 ... step -50 to Function Performs the frequency offset setting. Example of use Sets the value of frequency offset at +25. >...
Page 89 : SUORce : JlTTer : RANGe? Command type Transmission sequential command <range> = <CHARACTER RESPONSE DATA> Response Function Makes a query of the transmission jitter generation range Restriction Effective when jitter is generated. Restrictions on setting apply depending on the Bit Rate. Bit Rate Example of use >...
Page 90 Section 8 Device Message Details 8.3.3 SENSe Subsystem The SENSe subsystem performs control (setting and display) of measurement conditions and reception side. : SENSe TELecom BRATe : BRATe? : RANGe RANGe? : FILTer : FILTer? : MEASure : MEASure : STATe? : STAR1 : STOP : STIMe?
Page 91 : SENSe : TELecom : BRATe <brate> Command type Sequential command Parameter <brate> <CHARACTER PROGRAM DATA> (Standard) M2488 ... 4,977 Mbit/s M4977 M9953 (Option 01) M2494 M4988 M9977 (Option 02) M2666 M5332 MI0664 ... 10,664 Mbit/s (Option 04) M3062 M6125 Mi2249 Function Sets the sign speed of receiving signal.
Page 92 Section 8 Device Message Details : SENSe : TELecom : RANGe <range> Command type Sequential command Parameter <range> <CHARACTER PROGRAM DATA> UI 1 Function Sets the measurement range of receiving jitter. Example of use Sets the measurement range of receiving jitter at 1 UIPP, >...
Page 93 : SENSe : TELecom : FILTer? Command type Sequential command Response <filter> = <CHARACTER RESPONSE DATA> Makes a query of the filter setting. Function Restriction HP'+LP, HPlq+LP setting is disabled when the Bit Rate is set at 2.5 G or 5 G >...
Page 94 Section 8 Device Message Details : SENSe : TELecom : MEASure : PERiod <numeric>, <suffix> Command type Sequential command Parameter <numeric> 1 to 99 <suffix> M ... minute S ... second Function Performs the measurement time setting. Restriction The setting is disabled when the measurement mode is set to manual measurement. Example of use Sets the measurement time at one hour.
Page 95 : SENSe : MEASure : STATe? Command type Sequential command Response <mestype>, <numeric> <mestype> = <CHARACTER RESPONSE DATA> ... Manual measurement NON ... No target measurement found <numeric> 0 ... Measurement completed Function Makes a query of the measurement status. Restriction Measurement of only one item enabled to he executed.
Page 96 Section 8 Device Message Details SENSe MEASure STIMe? Command type Sequential command <year>, <month>, <day>, <hour>, <min>, Response Function Makes a query of the time to start the measurement. Restriction The clock can be set within the range between the year 1993 and 2093. When a query is made while the measurement has yet to be started, the time to start measurement previously set will be applied.
Page 97 8.3.4 DlSPlay Subsystem The DISPlay subsystem performs control (setting and display) of screens. : DISPlay : DSELect SETup : RESult : DlSPlay : DSELect [:NAME] <display> Command type Sequential command Parameter <display> "SETup" "TMENu" ... Test menu screen "RESult" "T&RN Function Selects the screen dividing method.
Page 98 Section 8 Device Message Details DlSPlay SETup [:NAME] <sdisplay> Command type Sequential command Parameter <sdisplay> "INTerface" ... Interface screen "MEMory" "SYSTem" Function Selects display item on the Setup screen Example of use Selects "INTerface" from the display items on the Setup screen. >...
Page 99 : DlSPlay : RESult : JlTTer : MODE? Command type Sequential command Response <mode> = C H A R A C T E R RESPONSE Function Makes a query of the display mode of the Result screen. > Example of use DISPlay <...
Page 100 Section 8 Device Message Details 8.3.5 CALCulate Subsystem The CALCulate subsystem performs the performance measurement setting and measured result display : CALCulate : DATA? CALCulate : DATA? <string> Command type Sequential command Parameter <string> Response <string> See the Table 8-1 for <string>. Function Reads the measured results.
Page 101 SYSTem Subsystem 8 . 3 . 6 The SYSTem subsystem performs control (setting and display) of memory, buzzer and other items. : SYSTem : MEMory : DATE? : TIME : TIME? : BUZZer : BUZZer? : ERRor? : VERSion? SYSTem : MEMory : RECall <numeric> Command type Sequential command Parameter...
Page 102 Section 8 Device Message Details : SYSTern : MEMory : CLEar <numeric> Command type Sequential command Parameter <numeric> 1 to 10 Deletes set data in memory. Function Restriction Specifying a memory number where no data is written will result in a run time error. Example of use Deletes data of memory number 3.
Page 103 : SYSTem : DATE <numericl>, <numeric2>, ~numeric3r Command type Sequential command Parameter <DECIMAL NUMERIC PROGRAM DATA> <numeric I > <numeric'> <numeric3> Function Sets the current date. Sets the current date at May 28, 1995. Example of use > SYSTem SYSTem DATE? Command type Sequential command...
Page 104 Section 8 Device Message Details SYSTern : BUZZer <boolean> Command type Sequential command Parameter <boolean> 0 ... OFF or ... Buzzer ON ON or Function Switches the buzzer ON and OFF. Example of use Switches the buzzer ON. < : SYSTem : BUZZer : SYSTem : BUZZer? Command type Sequential command...
Page 105 8.3.7 STATus Subsystem The STATUS subsystem performs control (setting and display) of the status registers. : STATUS : PRESet : OPERalion STATus : PRESet Command type Sequential command Parameter None Function Initializes status registers. See the Section 6 "Status Report". Example of use >...
Page 106 Section 8 Device Message Details STATus OPERation : CONDition? Command type Sequential command <numeric> = <NR1 NUMERIC RESPONSE DATA> Response 0 to 32,767 ... Sum (decimal digit) of condition register bits Makes a query of the details of the condition register of the OPERation status register. Function When the bit being measured of the OPERation status register is ON (measurement being Example of use...
Page 107 : STATus OPERation PTRansition <numeric> Command type Sequential command < n u m e r i o = <DECIMAL NUMERIC PROGRAM DATA> Parameter 0 to 32,767 ... Sum (decimal digit) of transition filter bits Sets the transition filter (a change in the positive direction) of the OPERation status register. Function Set at I .
Page 108 Section 8 Device Message Details STATus OPERation NTRansition? Command type Sequential command Response <numeric> 0 to 32,767 ... Sum (decimal digit) of transition filter bits Function Makes a query of the details of the transition filter (a change in the negative direction) of the OPERation status register.
Page 109 : STATus : OPERation : INSTrument : ENABle <numeric> Command type Sequential command Parameter <numeric> 0 to 32,767 ... Sum (decimal digit) of event enable register bits Sets the masking value of the event enable register of the INSTrument register. Function Masking at 0.
Page 110 Section 8 Device Message Details STATus : OPERation INSTrument : PTRansition? Command type Sequential command Response <numeric> 0 to 32,767 ... Sum (decimal digit) of transition filter bits Function Makes a query of the details of the transition filter (a change in the positive direction) of the INSTrurnent status register.
Page 111 Appendix A SCPI Error Messages SCPI specifies codes and messages to correspond to errors as responses to the SCPI command, The following section provides detailed explanations of error messages supported by this device. A . l Command Errors ... A.2 Run Time Errors A.3 Device-Specific Errors ...
Page 112: Appendix Ascpl Error Messages
Appendix A SCPl Error Messages Command Errors [-I99 and -1001, indicate that syntax errors of IEEE388.2 have taken place. In this case, bit 5 of the event The error codes, status register of the device is set. Errors take place when the following events take place. When the device has received a message When the device has received a header that does not conform to the stipulations of the device-specific commands or common commands.
Page 113 Table A-1 Code Messaae -101 Invalid character -104 Data type error -105 GET not allowed Parameter not allowed Program mnemonic too long A program mnemonic comes in 12 or more characters. - 1 12 1 13 Undefined header Numeric data error Invalid character in number Suffix error Character data too long...
Page 114 Appendix A SCPl Error Messages Run Time Errors The error codes, [-299 and -2001, indicate that errors have taken place in the execution controller. In this case, bit 4 of the event status register is set. Errors take place when the following events take place When the <PROGRAM DATA>...
Page 115: Device-Spec If:^ Errors
Device-Specific Errors The error codes, [-399 and -3001, indicate that the device encountered errors other than the command error, query error and run time error. Device-specific errors include errors such as hardware and firmware errors and self-diagnosis error. When a device-specific error takes place, bit 3 of the event status register is set. Table A-3 Code Message...
Page 116: Query Errors
Appendix A SCPl Error Messages Query Errors [-499 The error codes, -4001, indicate that the output control queue of the device has encountered errors related to the message exchange control protocol. When these errors take place, bit 2 of the event status register of the device is set. Errors take place when the following events take place.
Page 117: Appendix B Details Of Initialization Command Functions
Details of Initialization Command Functions This section provides explanations of the range of effects of each initialization command on the device. B . l Initializing Bus 8.2 Initializing Message ... 8.3 Initializing Device ... Device Status at Power Activation ... Appendix B...
Page 118 Appendix Details of Initialization Command Functions Initializing Bus IFC: Initializes functions of all the devices connected mounted. Initialization of the interface function refers to an action of canceling the status of the interface function of the device set by the controller and returning it to the initial status. Each function inarked with a check mark in the table is initialized.
Page 119 8.2 lnitializing Message DCL, SDC: Initializes the message exchange among all the devices on GPIB or only specified devices, When a GPIB option is mounted. The following table shows target items of message exchange initialization. Table Items of Initialization Target of Message Exchange Item Input and output buffers will be cleared.
Page 120 Appendix B Details of Initialization Command Functions Initializing Device *RST: Initializes the device. (Common to the GPIB and US-232C options) The *RST command switches the device into the following state. ( 1 ) Switches the device-specific functions to the initial state regardless of the past use. On this device, the command switches the functions to the same state as that when the power switch is turned ON.
Page 121: Device Status At P.2 Wer Act~Vatian
B.4 Device Status at Power Activation The device switches into the following state when the power is activated. (1) Sets the device to the state where the power was turned OFF the last time. (2) Clears the input and output buffers. (3) Resets the syntax analyzer, run time controller.
Page 122 Appendix B Details of Initialization Command Functions...
Page 123 Head office address was changed Head office a d d ~ e s s on the back cover was changed. Please substitute it as the following address. Anritsu Corporation Onna, Atsugi-shi, Kanagawa, 243-8555, Japan 8 0 0 TEL: +81-46-223-1111 22 September 2303...
