Page 1: User Guide

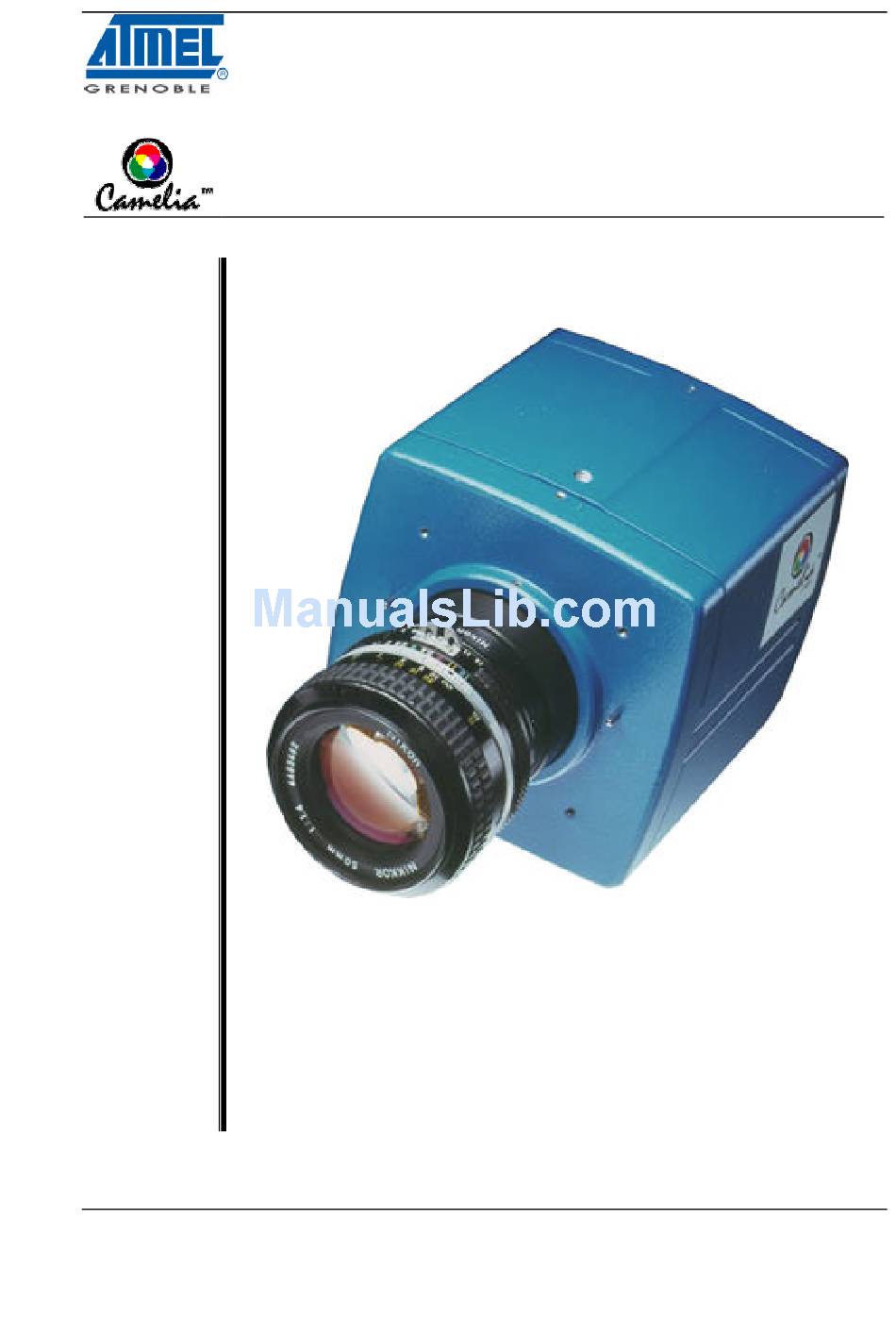

CAMELIACOL 8M 8 MEGAPIXEL COLOR DIGITAL CAMERA User guide V 2.0 - October 2001 1/16 Phone +33 (0) 1 69 33 00 00 - Fax +33 (0) 1 69 33 03 21 www.atmel-grenoble.com... - Page 2 ♦ ‘’Data & Sync’’ cable. ♦ CDROM "Cameras Software & Documentations" including : ◊ ‘COMMCAM software. ◊ FGT software. ◊ Documentation (This Manual) and for all ATMEL Cameras ◊ FAQ, examples SYSTEM REQUIREMENTS : ♦ +24V(0.6A) power supply ♦ NIKON lens ♦...
-
Page 3: Table Of Contents
CAMELIACOL 8M user guide IMAGING SYSTEM DESCRIPTION .......................4 CCD DESCRIPTION............................5 TIMING ................................5 ..............................5 FRAME TIMING 3.1.1 continuous ..............................5 3.1.2 operation with external trigger ........................5 3.1.3 operation with "integration time control"....................6 ..............................6 INE TIMING ........................7 BLOOMING BY CLOCKING ........................7 IDEO SIGNAL PROCESSING GAIN R.O.IS (REGIONS OF INTEREST)........................7... -
Page 4: Imaging System Description
CAMELIACOL 8M user guide 1. IMAGING SYSTEM DESCRIPTION +24V POWER SUPPLY COMPUTER CAMELIA SERIAL PORT POWER RS232 FRAME DATA & SYNC GRABBER ELECTRO-OPTICAL INTERFACE TRIG_ITC ♦ CAMELIA camera is powered by a +24V power supply. ♦ CAMELIA camera is configured through the serial port of the computer. -
Page 5: Ccd Description
CAMELIACOL 8M user guide 2. CCD DESCRIPTION ♦ image format : 35.0mm(V) x 23.0mm(H) ♦ active pixels : Mode (set via RS232) Image size (H x V) No binning 2300 x 3500 2x2 pixel binning 1150 x 1750 4x4 pixel binning 574 x 875 ♦... -
Page 6: Operation With "Integration Time Control
CAMELIACOL 8M user guide FRAME shutter delay FRAME WAITING INTEGRATION READOUT INT. TIME SET BY RS232 TRIG M pixels video lines SHUTTER 3.1.3 " " OPERATION WITH INTEGRATION TIME CONTROL ♦ integration is fully controlled by the user from the external signal ITC : ◊... -
Page 7: Anti - Blooming By Clocking
CAMELIACOL 8M user guide 3.3 A BLOOMING BY CLOCKING Anti-blooming can be activated or inhibited (see RS232 control): ◊ Anti-blooming OFF : anti-blooming inhibited. This position is recommended if anti-blooming is not required for the application. ◊ Anti-blooming ON : anti-blooming activated. -
Page 8: Electrical Interfaces
CAMELIACOL 8M user guide 6. ELECTRICAL INTERFACES 6.1 P OWER SUPPLY Voltage Current +24V 0.6A Min : +20V; Max : +28V 6.2 D IGITAL SYMBOL I/O DEFINITION LEVEL TRIG_ITC Timing control : LVDS TRIG_ITC is either an external trigger or "integration time control"... -
Page 9: Rs232 Controls
CAMELIACOL 8M user guide 7. RS232 CONTROLS Camera configuration is set by RS232 interface. The following features are available : Function RS232 configuration Comment Timing mode 3 modes : - continuous (free running) - external trigger - external ITC Binning... -
Page 10: Specifications
CAMELIACOL 8M user guide 8. SPECIFICATIONS 8.1 E LECTRO OPTICAL PERFORMANCE ♦ Conditions : ◊ frame integration time : 40ms ◊ camera operating free air temperature : 25°C ♦ Performance : Parameter Symbol Typical Unit Value Full scale value 4095... -
Page 11: Spectral Responsivity
CAMELIACOL 8M user guide SPECTRAL RESPONSIVITY CAMELIA COLOR 8M 5000 4000 3000 Blue 2000 Green 1000 -1000 Wavelength (nm) Note : nJ/cm measured on the CCD chip. Including BG38 2mm. V 2.0 - October 2001 11/16... -
Page 12: Image Grade Specification
CAMELIACOL 8M user guide 8.3 I MAGE GRADE SPECIFICATION 8.3.1 D EFINITIONS ♦ Defect sizes ◊ Blemish : 1 x 1 defect. ◊ Cluster : blemish grouping of not more than a given number of adjacent defects : 1 x 1 < cluster 1 size ≤ 2 x 2 2 x 2 <... -
Page 13: Geometrical Specifications
CAMELIACOL 8M user guide 8.4 G EOMETRICAL SPECIFICATIONS FRONT PANEL 4 X M3 74.0 mm 4.0 mm 2 X ø 2.0 mm 25.6 mm 2X 1/4_20 UNC 2B 64.0 mm ø 66.0 mm 108.0 mm 114.0 mm 144.5 mm REAR PANEL DATA &... -
Page 14: Connectors And Cables
CAMELIACOL 8M user guide 9. CONNECTORS AND CABLES 9.1 ‘’D ’’ ATA AND SYNC CONNECTOR 50 pins connector. ♦ Connector reference :HIROSE DX10A-50S. ♦ Mating connector on cable side : HIROSE DX40-50P ; shell : HIROSE DX50-CV1. Pin-out : Pin n°... -
Page 15: Power Supply
CAMELIACOL 8M user guide 9.2 P OWER SUPPLY Pin Number Signal Pin Number At camera output At end of power supply cable +24V +24V GROUND GROUND Hirose 6 pins male HR10A-7R-6P SUBD9 male ♦ notes : ◊ NC : not connected. - Page 16 No license is granted by implication or otherwise under any patent rights of Atmel-Grenoble. Specifications mentioned in this publication are subject to change without notice.
