CAMELIA 8M
8 MEGAPIXEL DIGITAL CAMERA

User guide

V 2.0 October 2001
1/16
Phone +33 (0) 1 49 75 96 00 - Fax +33 (0) 1 49 75 96 01
www.atmel-grenoble.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAMELIA 8M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atmel CAMELIA 8M

Summary of Contents for Atmel CAMELIA 8M

  • Page 1: User Guide

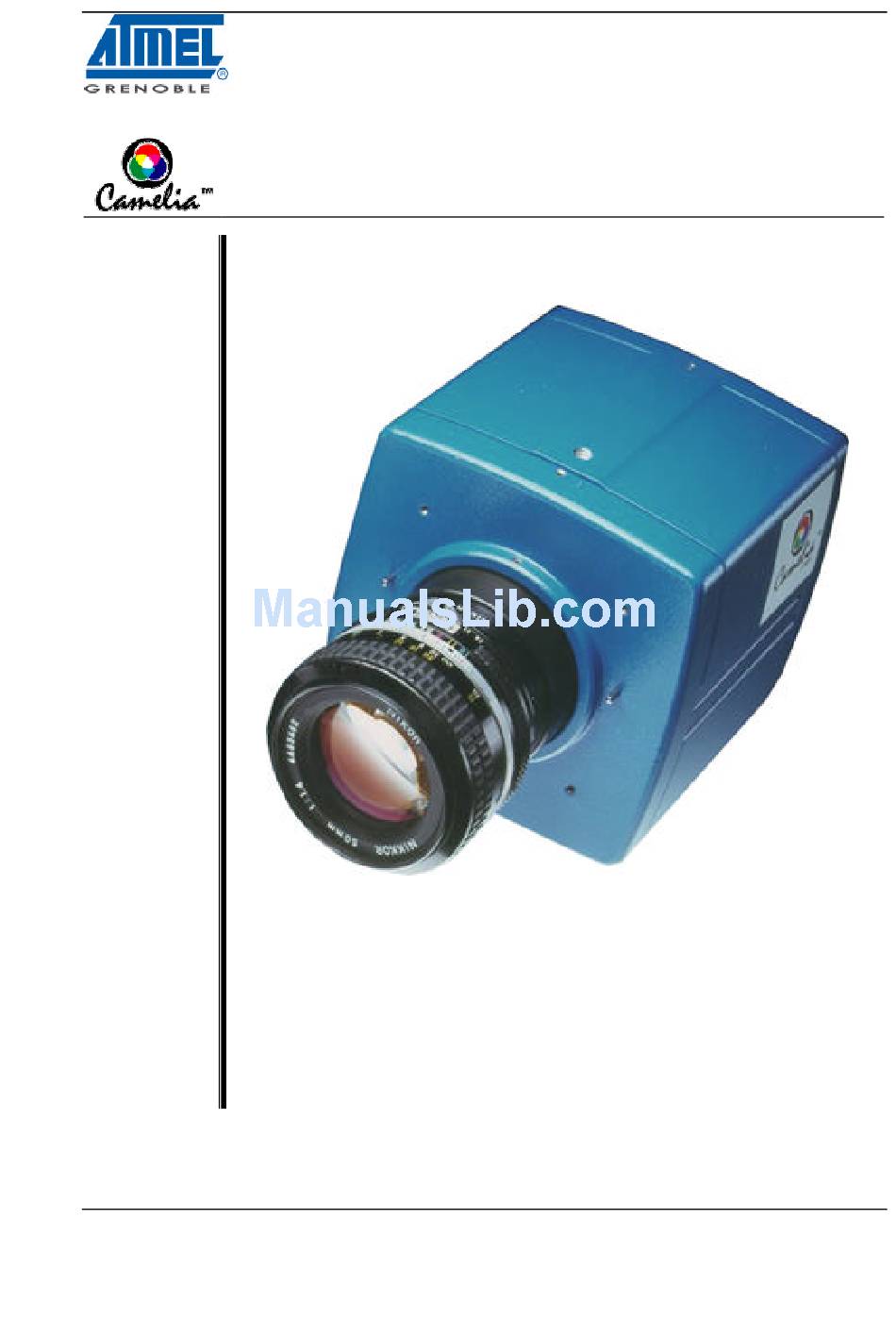

    CAMELIA 8M 8 MEGAPIXEL DIGITAL CAMERA User guide V 2.0 October 2001 1/16 Phone +33 (0) 1 49 75 96 00 - Fax +33 (0) 1 49 75 96 01 www.atmel-grenoble.com...
  • Page 2 CAMELIA 8M user guide CAMELIA PACKAGE CONTENTS : Depending on the selected configuration, a CAMELIA package may include : ♦ CAMELIA camera ♦ FGT frame grabber board ♦ ‘’Power supply’’ cable + ‘’RS232’’ cable ♦ ‘’Data & Sync’’ cable. ♦ ‘’COMMCAM’’ software.

  • Page 3: Table Of Contents

    CAMELIA 8M user guide IMAGING SYSTEM DESCRIPTION .......................4 CAMELIA 8M CAMERA ...........................5 CCD.................................5 ..............................5 IMING MODES .............................7 INE READOUT TIMING ........................7 BLOOMING BY CLOCKING ............................8 OLOR OPERATION ................................8 ..........................9 LECTRICAL INTERFACES 2.7.1 Power supply............................9 2.7.2 Digital I/O ..............................9 RS232 ....................9...

  • Page 4: Imaging System Description

    CAMELIA 8M user guide 1. IMAGING SYSTEM DESCRIPTION +24V POWER SUPPLY COMPUTER CAMELIA SERIAL PORT POWER RS232 FRAME DATA & SYNC GRABBER ELECTRO-OPTICAL INTERFACE TRIG_ITC ♦ CAMELIA camera is powered by a +24V power supply. ♦ CAMELIA camera is configured through the serial port of the computer.

  • Page 5: Camelia 8M Camera

    CAMELIA 8M user guide 2. CAMELIA 8M CAMERA 2.1 CCD ♦ image format : 35.0mm(V) x 23.0mm(H) ♦ active pixels : Mode (set via RS232) Image size (H x V) No binning 2300 x 3500 2x2 pixel binning 1150 x 1750...
  • Page 6 CAMELIA 8M user guide Timing diagram (for continuous operation) : FRAME shutter delay FRAME INTEGRATION READOUT INT. TIME SET BY RS232 2300 pixels video lines SHUTTER Timing diagram (for operation with "external trigger") : FRAME shutter delay FRAME WAITING INTEGRATION READOUT INT.

  • Page 7: Line Readout Timing

    CAMELIA 8M user guide 2.3 L INE READOUT TIMING Duty cycle of the PCK is 50%. Rising and falling edges : 1,5 nsec. DATA(11..0) first last pixel pixel 2.4 A BLOOMING BY CLOCKING Anti-blooming can be activated or inhibited (set via RS232) : ◊...

  • Page 8: Color Operation

    2.6 ROI Regions of interest. CAMELIA 8M can operate in a “multi ROI” mode allowing masking of regions of the image and thus increasing frame rate by a reduced readout time. User defines up to 5 windows to be masked. In addition he specifies starting and ending addresses for each window.

  • Page 9: Electrical Interfaces

    CAMELIA 8M user guide 2.7 E LECTRICAL INTERFACES 2.7.1 P OWER SUPPLY Voltage Current +24V 0.6A Min : +20V ; Max : +28V 2.7.2 D IGITAL SYMBOL I/O DEFINITION LEVEL TRIG_ITC Timing control : LVDS TRIG_ITC is either an external trigger or "integration time control"...

  • Page 10: Electro - Optical Performance

    CAMELIA 8M user guide 2.9 E LECTRO OPTICAL PERFORMANCE ♦ Conditions : ◊ frame integration time : 40ms ◊ camera operating free air temperature : 25°C ♦ Performance : Parameter Symbol Typical Unit Value Full scale value 4095 see note 2 Temporal noise σ...
  • Page 11 CAMELIA 8M user guide CAMELIA 8M Spectrale response (adu/µJ/cm2) 60000 40000 20000 1000 1100 Wavelength (nm) Note : µJ/cm measured on the CCD chip. 11/16...

  • Page 12: Geometrical Specifications

    CAMELIA 8M user guide 2.10 G EOMETRICAL SPECIFICATIONS FRONT PANEL 4 X M3 (depth 6mm) 74.0 mm 4.0 mm 2 X ø 2.0 mm 25.6 mm 2X 1/4_20 UNC 2B 64.0 mm ø 66.0 mm 108.0 mm 114.0 mm 144.5 mm REAR PANEL DATA &...

  • Page 13: Environmental Requirements

    CAMELIA 8M user guide 2.11 E NVIRONMENTAL REQUIREMENTS ♦ operating temperature : 0°C / +50°C ♦ storage temperature : -20°C / 70°C ♦ operating humidity : < 80% at +35°C ♦ vibration : 2g sinusoidal, from 10Hz to 55Hz. 2.12 IMAGE GRADE 2.12.1 TEST CONDITIONS...

  • Page 14: Connectors And Cables

    CAMELIA 8M user guide 3. CONNECTORS AND CABLES 3.1 ‘’D ’’ C ATA AND SYNC ABLE ♦ On camera side : ◊ 50 points HIROSE connector : HIROSE DX10A-50S. ◊ mating connector on cable side : HIROSE DX40-50P ; shell : HIROSE DX50-CV1.

  • Page 15: Power Supply Cable

    CAMELIA 8M user guide 3.2 ’P ’’ OWER SUPPLY CABLE Pin Number Signal Pin Number At camera output At end of power supply cable +24V +24V GROUND GROUND Hirose 6 pins male HR10A-7R-6P SUBD9 male ♦ notes : ◊ NC : not connected.
  • Page 16 No license is granted by implication or otherwise under any patent rights of Atmel-Grenoble. Specifications mentioned in this publication are subject to change without notice.
