Door Station

PRO591

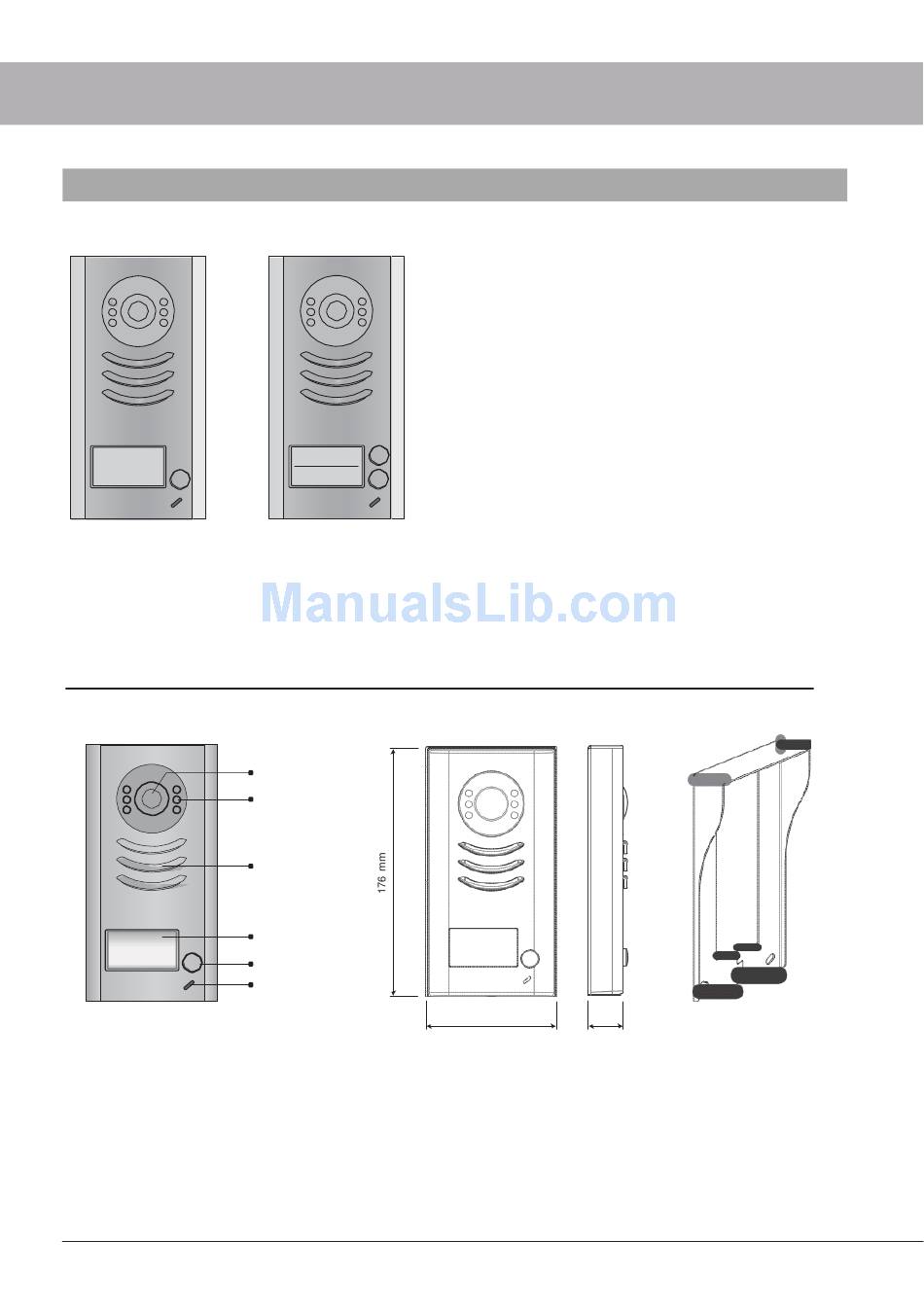

Parts and functions

4
PRO592
Camera Lens
Night View LED
Speaker
Nameplate
Call Button
Microphone
Features
• Full zinc alloy panel.
• Pin -hole color CCD camera.
• Camera angle adjustable.
• Night -view LED.
• Backlight name plate.
• DIP switches for multi door station configuration.
• Direct connect to electronic lock of 12Vdc.
• Exit button.
• Plug -in connector to connect bus line.
90 mm
23 mm
Rainy Cover
