Summary of Contents for Behringer Tube Ultragain MIC200

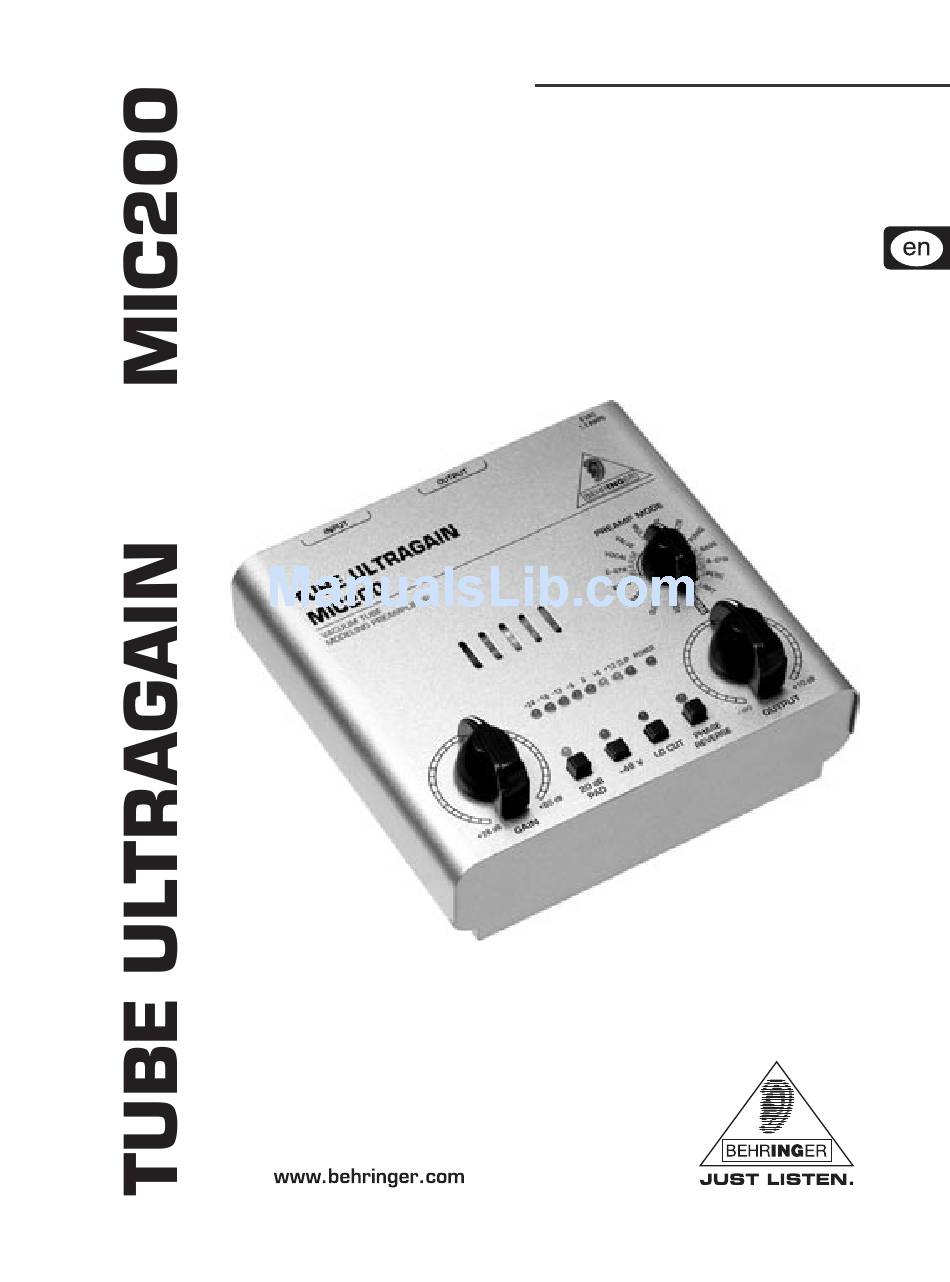

  • Page 1: User Manual

    User Manual A50-24313-00003...

  • Page 2: Important Safety Instructions

    TUBE ULTRAGAIN MIC200 Important Safety Instructions has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
  • Page 3 Introduction With the MIC200, you have purchased an extremely musical mic preamp that is equipped with a 12AX7 vacuum tube. Thanks to BEHRINGER’s preamp modeling, its main advantages are thenumber of preamp settings you can select. Additionally, features like an integrated limiter, phase...

  • Page 4: Online Registration

    Should your BEHRINGER product malfunction, it is our intention to have it repaired as quickly as possible. To arrange for warranty service, please contact the BEHRINGER retailer from whom the equipment was purchased.

  • Page 5: Control Elements

    TUBE ULTRAGAIN MIC200 Control elements Fig. 2.1: User interface of the MIC200 User interface The GAIN control allows you to control the gain from +26 to+60 dB to the input signal. This control should be set all theway to the left when (dis)connecting a sound source from the MIC200.
  • Page 6 TUBE ULTRAGAIN MIC200 applications is not recommended. No matter what your applica- tion is, the clip LED warns you to reduce the gain setting to avoid distortion. This +48 V switch activates the phantom power supply for the XLR input. Phantom power supply is required for operating condenser microphones.
  • Page 7 TUBE ULTRAGAIN MIC200 LIMITER (moving clockwise, starting at 3 o’clock): Select these settings if you wish to use the limiter function without add- ing tube warmth. BASS: Bass guitar. A-GTR: Acoustic guitar. PERC: Percussion and drums. LIMIT: Neutral limiter setting.

  • Page 8: Wiring Examples

    TUBE ULTRAGAIN MIC200 In contrast to its outputs, the MIC200’s inputs should never be used simultaneously! This is the balanced XLR OUTPUT of your MIC200. Use this con- (11) nector to feed the XLR input of your mixing console, multitrack recorder or power amp.
  • Page 9 TUBE ULTRAGAIN MIC200 Fig. 3.2: Connection of the MIC200 and the soundcard of your PC The MIC200 as DI-box Your MIC200 is excellently suited for this application. For example, you can connect an unbalanced acoustic guitar signal to the MIC200 to prevent hum or interference noise.

  • Page 10: Audio Connectors

    TUBE ULTRAGAIN MIC200 Audio connectors Fig. 4.1: XLR connectors Fig. 4.2: ¼" TS connector Audio connectors...

  • Page 11: Specifications

    TUBE ULTRAGAIN MIC200 Fig. 4.3: ¼" TRS connector Specifications AUDIO INpUTS XLR input Connector balanced/unbalanced Type transformerless, DC-decoupled input Impedance approx. 2 kΩ Max. input level +7 dBu / -20 dB with pad ¼" TRS input Connector balanced/unbalanced Type transformerless, DC-decoupled input Impedance approx.
  • Page 12 1.1 lbs (0.5 kg) Equivalent Input Noise BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

  • Page 13: Warranty

    The warranty does not cover any such modification/adaptation, irrespective of whether it was carried out properly or not. Under the terms of this warranty, BEHRINGER shall not be held responsible for any cost resulting from such a modification/adaptation.
  • Page 14 5. Any repair or opening of the unit carried out by unauthorized personnel (user included) will void the warranty. 6. If an inspection of the product by BEHRINGER shows that the defect in question is not covered by the warranty, 7.
