Behringer tube ultragain mic200 User Manual

Behringer tube ultragain mic200 User Manual

Audiophile vacuum tube preamplifier with preamp
Hide thumbs Also See for tube ultragain mic200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
INPUT
OUTPUT
User Manual
TUBE ULTRAGAIN MIC200
Audiophile Vacuum Tube Preamplifier with Preamp
Modeling Technology

Advertisement

Table of Contents
loading

Related Manuals for Behringer tube ultragain mic200

Summary of Contents for Behringer tube ultragain mic200

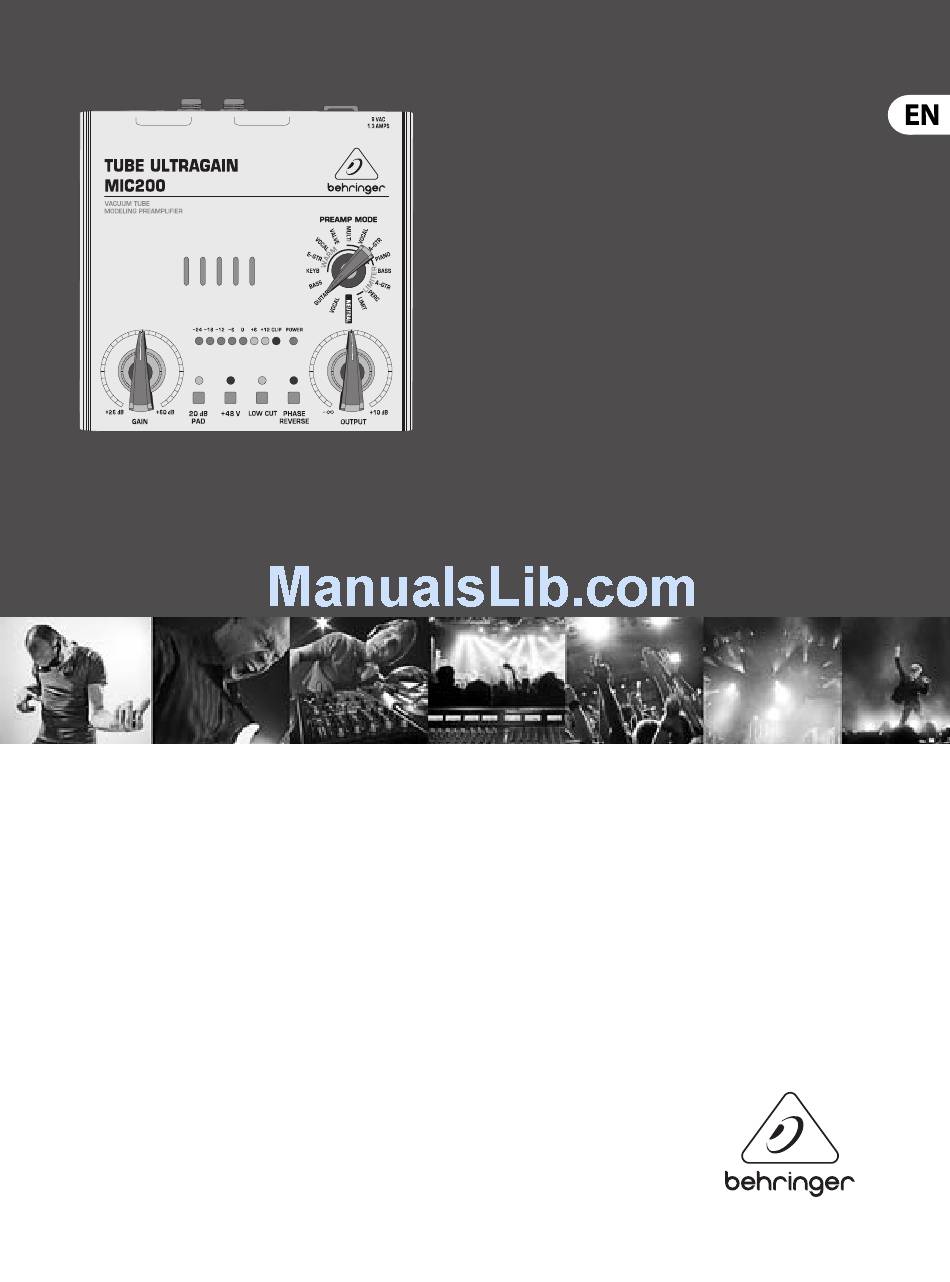

  • Page 1 INPUT OUTPUT User Manual TUBE ULTRAGAIN MIC200 Audiophile Vacuum Tube Preamplifier with Preamp Modeling Technology...

  • Page 2: Table Of Contents

    TUBE ULTRAGAIN MIC200 User Manual Table of Contents Thank you .................... 2 Important Safety Instructions ............3 Legal Disclaimer .................. 5 Limited Warranty ................5 1. Introduction ..................6 1.1 The design concept ..................6 1.2 Online registration ..................7 2.

  • Page 3: Important Safety Instructions

    TUBE ULTRAGAIN MIC200 User Manual Caution Important Safety To reduce the risk of electric Instructions shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualifi ed personnel. Caution To reduce the risk of fi re or...
  • Page 4 TUBE ULTRAGAIN MIC200 User Manual Do not block any ventilation Use only with the openings. Install in accordance with the cart, stand, tripod, manufacturer’s instructions. bracket, or table specifi ed by the manufacturer, Do not install near any heat sources or sold with the apparatus.

  • Page 5: Legal Disclaimer

    TUBE ULTRAGAIN MIC200 User Manual Correct disposal Technical specifi cations, appearances of this product: This and other information are subject to symbol indicates that change without notice. All trademarks this product must not are the property of their respective be disposed of with owners.

  • Page 6: Introduction

    1. Introduction With the MIC200, you have purchased an extremely musical mic preamp that is equipped with a 12AX7 vacuum tube. Thanks to BEHRINGER’s preamp modeling, its main advantages are the number of preamp settings you can select. Additionally, features like an integrated limiter, phase reverse function, phantom power supply, highly accurate LED meter, switchable pad function and low cut filter make the MIC200 a very powerful piece of equipment.

  • Page 7: Online Registration

    Please register your new BEHRINGER equipment right after your purchase by visiting behringer.com and read the terms and conditions of our warranty carefully. Should your BEHRINGER product malfunction, it is our intention to have it repaired as quickly as possible. To arrange for warranty service, please contact the BEHRINGER retailer from whom the equipment was purchased.

  • Page 8: Control Elements

    TUBE ULTRAGAIN MIC200 User Manual 2. Control Elements INPUT OUTPUT (1) (2)(4) (5) (6) (7)(3) (8) Fig. 2.1: User interface of the MIC200...

  • Page 9: User Interface

    TUBE ULTRAGAIN MIC200 User Manual 2.1 User interface (1) The GAIN control allows you to control the gain from +26 to +60 dB to the input signal. This control should be set all theway to the left when (dis) connecting a sound source from the MIC200. When all connections are made, slowly start raising the gain control.
  • Page 10 TUBE ULTRAGAIN MIC200 User Manual (8) The OUTPUT control governs the output level within a range from -∞ to +10 dB. If the control is turned all the way to the left, there is no output signal at all. The more the control is turned to the right, the higher the output level.
  • Page 11 TUBE ULTRAGAIN MIC200 User Manual LIMITER (moving clockwise, starting at 3 o’clock): Select these settings if you wish to use the limiter function without adding tube warmth. • BASS: Bass guitar • A-GTR: Acoustic guitar • PERC: Percussion and drums •...

  • Page 12: Rear Panel

    TUBE ULTRAGAIN MIC200 User Manual 2.2 Rear panel (12) (11) (10) Fig. 2.2: The rear panel of your MIC200 (10) The balanced ¼" TRS INPUT of your MIC200 can be used to connect your electric guitar, for example. This input is wired parallelly to the XLR input.

  • Page 13: Wiring Examples

    TUBE ULTRAGAIN MIC200 User Manual 3. Wiring Examples You’ll be surprised how flexibly you can set up your MIC200. The following chapter describes some typical wiring examples. 3.1 Enhancing vocals and instruments in live applications Here, the MIC200 is wired before the mixer’s channel input. Thus, the sound gains in warmth and transparency.

  • Page 14: Direct To Disk" Application In Studio Or Homerecording Environments

    TUBE ULTRAGAIN MIC200 User Manual 3.2 “Direct to Disk” application in studio or homerecording environments If you are looking for a device that considerably enhances the sound of your digital workstation, this is where the MIC200 comes in. Many hard disk recorders lack a certain “liveliness”.

  • Page 15: The Mic200 As Di-Box

    TUBE ULTRAGAIN MIC200 User Manual 3.3 The MIC200 as DI-box Your MIC200 is excellently suited for this application. For example, you can connect an unbalanced acoustic guitar signal to the MIC200 to prevent hum or interference noise. What you get is a balanced, noise-free signal.

  • Page 16: Audio Connectors

    TUBE ULTRAGAIN MIC200 User Manual 4. Audio Connectors Balanced use with XLR connectors input output 1 = ground/shield For unbalanced use, 2 = hot (+ve) pin 1 and pin 3 3 = cold (-ve) have to be bridged Fig. 4.1: XLR connectors Unbalanced ¼"...
  • Page 17 TUBE ULTRAGAIN MIC200 User Manual Balanced ¼" TRS connector strain relief clamp sleeve ring sleeve ground/shield ring cold (-ve) hot (+ve) For connection of balanced and unbalanced plugs, ring and sleeve have to be bridged at the stereo plug. Fig. 4.3: ¼" TRS connector...

  • Page 18: Specifications

    TUBE ULTRAGAIN MIC200 User Manual 5. Specifications Audio Inputs XLR Input Connector balanced / unbalanced Type transformerless, DC-decoupled input Impedance approx. 2 kΩ Max. input level +7 dBu / -20 dB with pad ¼" TRS Input Connector balanced / unbalanced Type transformerless, DC-decoupled input Impedance approx.
  • Page 19 TUBE ULTRAGAIN MIC200 User Manual System Data Signal-to-noise ratio 90 dB A-weighted @ -28 dBu input level Frequency Response Mic input <10 Hz to 47 kHz (±3 dB) Line input <10 Hz to 55 kHz (±3 dB) Function Controls GAIN variable (+26 dB to +60 dB) OUTPUT variable (-∞ to +10 dB)

  • Page 20: Mains Voltage

    Weight (without power supply) approx. 1.0 kg Equivalent Input Noise BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance...
  • Page 21 We Hear You...
