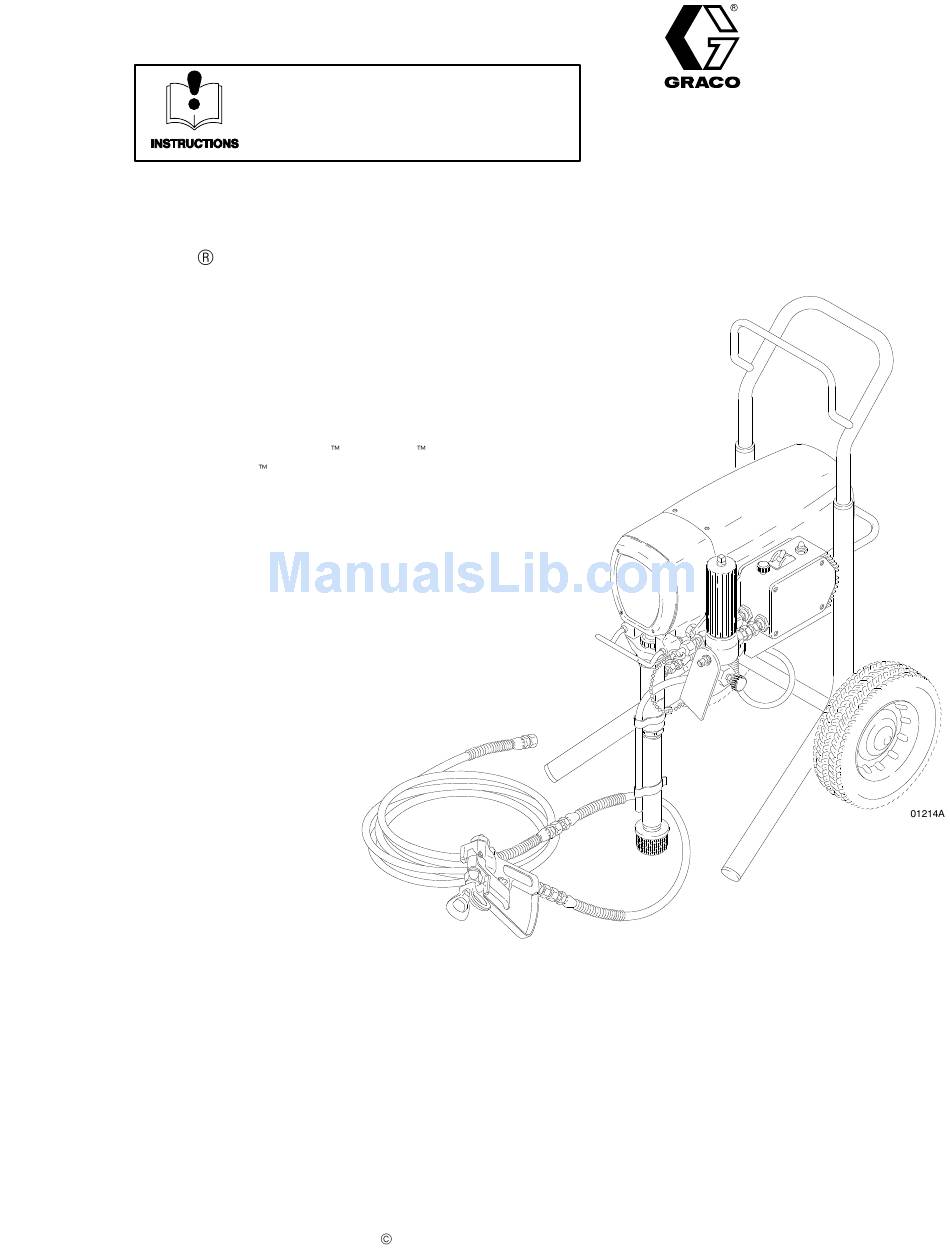

INSTRUCTIONS–PARTS LIST
120 VAC, 15 AMP
Ultra 1000 Airless Paint Sprayer
3000 psi (210 bar) Maximum Working Pressure
Model 231–034, Series D
This is a basic sprayer on an upright cart
and does not include a hose or a gun.
Model 231–043, Series B
This is a complete sprayer on an upright cart and
includes a hose, a gun, a RAC IV
Guard, and a SwitchTip .
U.S. PATENT NO. 4,323,741; 4,397,610
PATENTED 1983, CANADA
AND OTHER PATENTS PENDING
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
DripLess
Tip
COPYRIGHT 1986, GRACO INC.
307–785
Rev
J
Supersedes H
MODEL 231–043
