- Page 1 ® PERFORMANCE OWNER’S GUIDE ™ SERIES JBL BASS Q AUTOMATIC ROOM-MODE- CORRECTION PROCESSOR ™ ®...
-
Page 2: Table Of Contents
JBL BASSQ ™ AUTOMATIC ROOM-MODE-CORRECTION PROCESSOR Important Safety Instructions Introduction and Features Included Accessories Operation and Controls Connecting Your JBL Performance Series System Installing the JBL BassQ Processor Calibration and Room Mode Correction Troubleshooting JBL BassQ Specifications... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 4: Introduction And Features
INTRODUCTION AND FEATURES INTRODUCTION Congratulations on your purchase of this Performance ™ Series JBL BassQ processor! You have purchased a product that embodies the best of what ® engineers have learned about the emotional power of audio reproduction in more than fifty years of preeminence in the field. -
Page 5: Operation And Controls

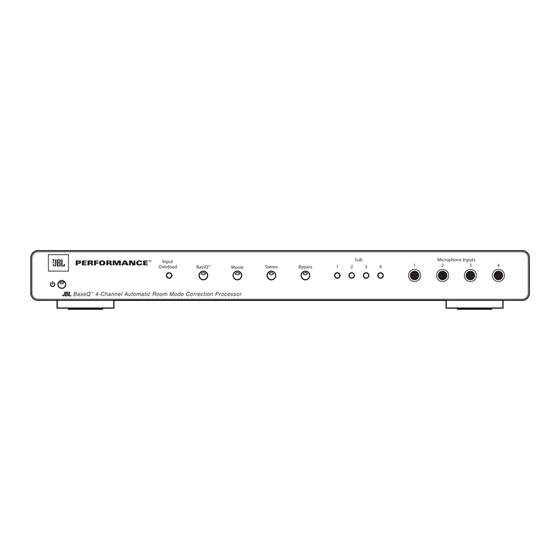

OPERATION AND CONTROLS 1. Power Switch Pushing this button is all that is required to turn on the unit if it is not part of a JBL Performance Series system and the Main Power Switch is in the On position. 2. - Page 6 11. Main Power Switch Place this switch in the On position at all times during normal use. 12. Power Trigger Input Jack When using the JBL BassQ processor in a JBL Performance Series system with the AV1 digital surround processor, you will need to use the trigger cable set included with the AV1.
-
Page 7: Remote Control Operation
REMOTE CONTROL OPERATION USING THE REMOTE REMOTE CONTROL BATTERY INSTALLATION The remote control requires one CR2032 battery. The battery should be replaced as needed. When battery power is low, the remote control enters a low-voltage con- dition, preventing it from operating the JBL BassQ unit. -
Page 8: Connecting Your Jbl Performance Series System
CONNECTING YOUR JBL PERFORMANCE SERIES SYSTEM GENERAL INFORMATION A JBL Performance Series system installation incorporates one preamp/ processor (AV1 or AV2), one power amplifier (AVA7) – in addition to the amplifier(s) used to power one or more subwoofers – and one JBL BassQ processor. -
Page 9: Installing The Jbl Bassq Processor
INSTALLING THE JBL BASSQ PROCESSOR PHYSICAL INSTALLATION Installation of the JBL BassQ unit is a straightforward process. IMPORTANT: The JBL BassQ unit must be installed following the directions below. Always put amplifiers on the bottom of a stack. Heavy equipment should not be supported solely by the front- mounting locations. -
Page 10: Calibration And Room Mode Correction
CALIBRATION AND ROOM MODE CORRECTION Once you have connected the sub- woofer input into the JBL BassQ unit and connected the outputs from the unit to all subwoofers in the system, you will need to run the BassQ test to finalize the room calibration and correction. -
Page 11: Troubleshooting
TROUBLESHOOTING Problem: The JBL BassQ unit does not turn on. Neither the red nor blue indicator lights are on. Make sure the JBL BassQ processor is plugged in, and verify that there is the proper voltage at the wall outlet. Make sure the Main Power Switch on the rear panel is in the On position. -
Page 12: Audio Characteristics
JBL BASSQ ™ SPECIFICATIONS GENERAL Power Requirements Power Consumption Operating Temperature Operating Humidity Dimensions (H x W x D) Net Weight Packaged Weight AUDIO CHARACTERISTICS Input Impedance System Gain (Bypass Mode) Frequency Response (at 1V) LP –3dB Point Bypass Mode S/N Ratio Dynamic Range Maximum Input Voltage...
