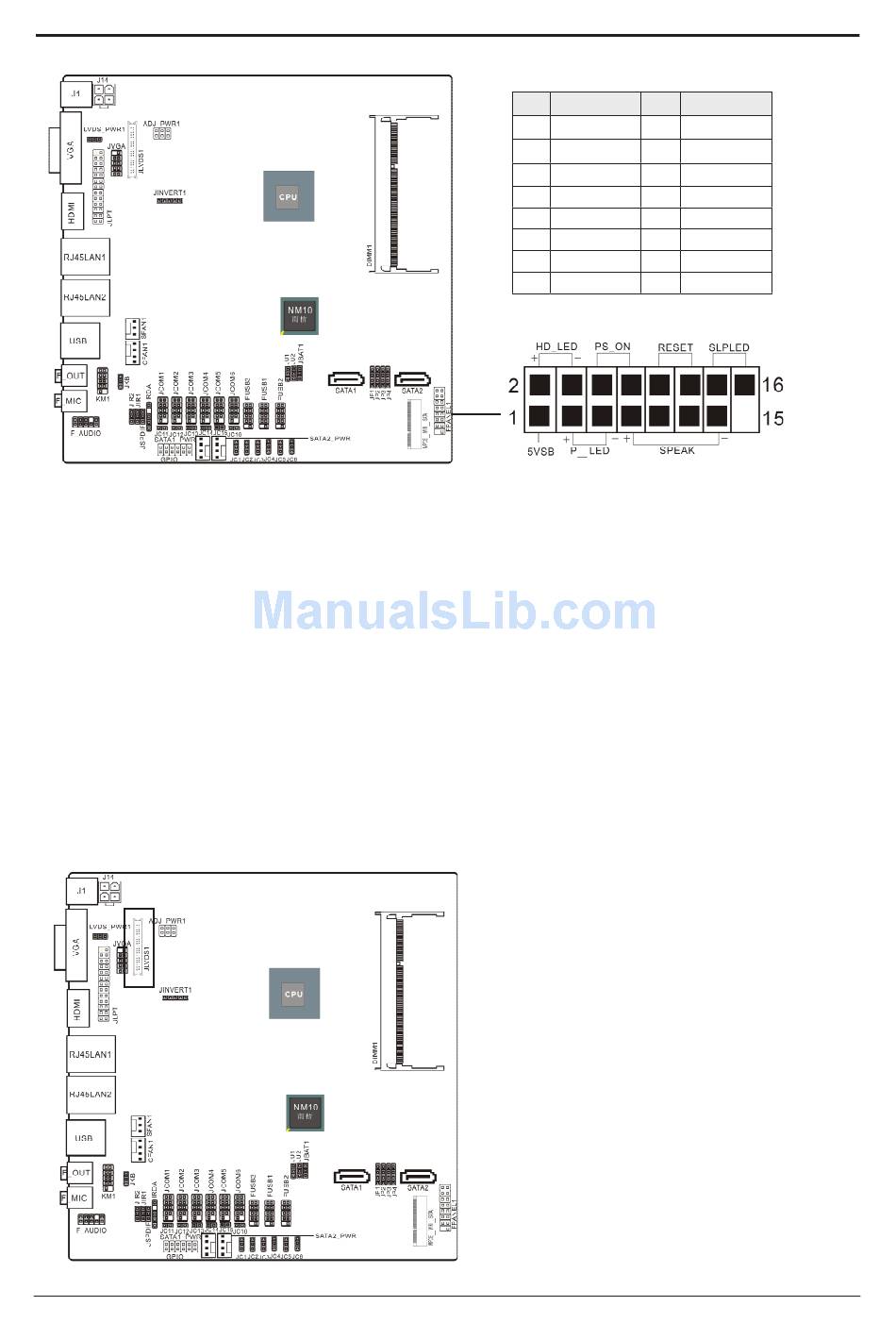

Front panel pin interface

HD_LED (Red): Hard Driver LED connector
This connector connects to the case-mounted HD LED cable,
and the LED will light when the
hard drive(s) is/are being accessed.
RST (Blue): Reset Switch
This connector connects to the case-mounted reset switch
which allows you to reboot without
having to power-off the system and thus prolonging
the life of the power supply or system.
PWR_ON (Black): Power Switch
Depending on the setting in the BIOS setup,
this switch serves two functions which will allow
you to power-on/off the system or to enter
the suspend mode.
PWR_LED (Green): Power/Standby LED
When the system's power is on, this LED will light.
When the system is in the S1 (POS - Power
on Suspend) or S3 (STR - Suspend to RAM, optional) state,
it will blink every second.
3.5 JLVDS1 pin interface（Display screen interface）
pin definition
1 VCC
3 VCC
5 -PLED_2
7 +5V
9 NC
11 NC
13 SPEAK
15 KEY
- 13 -
User's Manual
pin definition
2 HD_LED
+
4 HD_LED
-
6 PW_BN
8 GND
10 RST_SW
12 GND
14 +5V
16 -SLEEP_LED
