- Page 1 ® FMC 1000 FM STEREO MODULATOR (with Limiter and Compression) Instruction Manual ® is a registered trademark of the R.L. Drake Company P/N: 3852433E-2-2002 © Copyright 2002 R.L. Drake Co. Printed in the U.S.A.
-
Page 2: Caution Statements
Caution Statements WARNING: TO PREVENT FIRE OR A product and cart combination should be moved ELECTRICAL SHOCK DO NOT with care. Quick stops, excessive force and EXPOSE TO RAIN OR MOISTURE uneven surfaces may cause the product and cart combination to overturn. The lightning flash with arrow head symbol, within CAUTION an equilateral triangle, is intended to alert the user... -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read Instructions—All the safety and operating instructions should be read 14. Outdoor Antenna Grounding—If an outside antenna or cable system is before the product is operated. connected to the product, be sure the antenna or cable system is grounded 2. - Page 4 This page left intentionally blank...
-
Page 5: Table Of Contents
Table of Contents Thank you for purchasing a DRAKE® FMC 1000 FM STEREO MODULATOR. This product has been designed and manufactured to high quality standards, and will provide reliable operation for many years. Please carefully read the Instruction Manual for proper installation and usage. - Page 6 Specifications SPECIFICATIONS - Frequency Coverage: 88.1 to 107.9 MHz. Power Requirement: 12 VDC @ 250 mA, regulated by supplied wall Frequency Selection: Selectable by front panel AC Adapter. buttons and LCD frequency readout. Size: 19" W x 1.75" H x 6.25" D. Frequency Generation: PLL Synthesis.
-
Page 7: Introduction - General Description

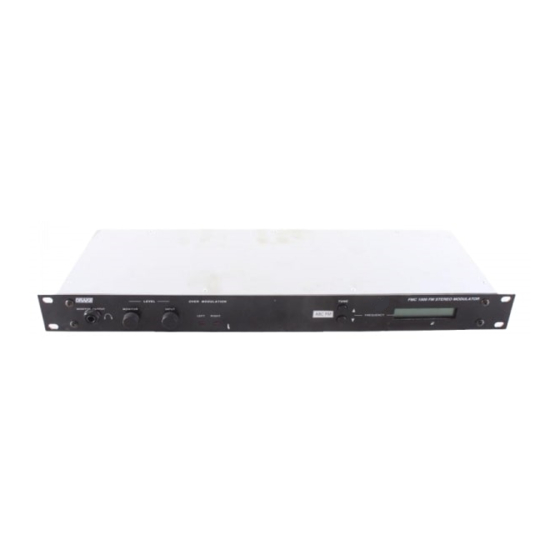

107.9 MHz Stereo LEFT RIGHT FREQUENCY The R.L. Drake FMC 1000 FM STEREO MODULATOR is a high quality cable FM broadcast band modulator. Synthesized operation permits setting the operating frequency in 100 kHz increments from 88.1 to 107.9 MHz. The operating frequency and mode of operation, Stereo or Mono, is programmable with front panel buttons and is indicated on an LCD display. -
Page 8: Front Panel Controls And Indicators
Front Panel Controls and Indicators FMC 1000 FM STEREO MODULATOR LEVEL OVER MODULATION TUNE MONITOR OUTPUT MONITOR INPUT 107.9 MHz Stereo LEFT RIGHT FREQUENCY 1. MONITOR OUTPUT - Connect headphones to listen 5. TUNE Buttons - Press to set the displayed to the audio that is supplied to the transmitter. -
Page 9: Rear Panel Controls And Connections
Use a small straight-slot type LEFT AUDIO INPUT connector. For monaural input, screwdriver to adjust the potentiometer, if adjustment is program the FMC 1000 to display ‘MONO’. See Item 5; necessary. Counterclockwise rotation of the potentiom- 'TUNE Buttons' in the ‘Front Panel Controls and... -
Page 10: Installation
2. Make audio connections The FMC 1000 will accept line level audio inputs. The Installation Notes best sources for a signal from a sound system are as Level adjustment provides optimum performance in follows: multichannel installations. - Page 11 DC INPUT connector on the rear panel of the FMC 1000 unit. Secure the DC power cord with the adjacently located strain relief. Plug the AC Adapter into a nominal 120 VAC, 60 Hz wall outlet. Set the rear...
-
Page 12: Service Information / If You Need To Call For Help
Inside the carton, enclose a note with your name, Typically, equipment is repaired in five to ten working days after it arrives at R.L. DRAKE if we have all the facts. address, daytime phone number, and a description of the unit’s problem. -
Page 13: Warranty
(c) A detailed description of the problem, including details on the electrical connection to associated equipment and the list of such equipment. (3) Deliver the product to the R.L. DRAKE COMPANY or the nearest authorized service facility, or ship the same in its original container or equivalent, fully insured and shipping charges prepaid. - Page 14 R.L. DRAKE COMPANY 230 INDUSTRIAL DRIVE FRANKLIN, OHIO 45005 U.S.A. CUSTOMER SERVICE AND PARTS TELEPHONE: +1 (937) 746-6990 TELEFAX: +1 (937) 743-4576 WORLD WIDE WEB SITE: http://www.rldrake.com...
