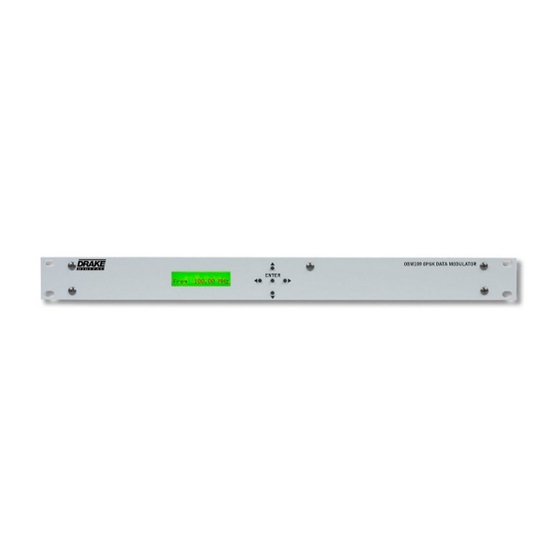

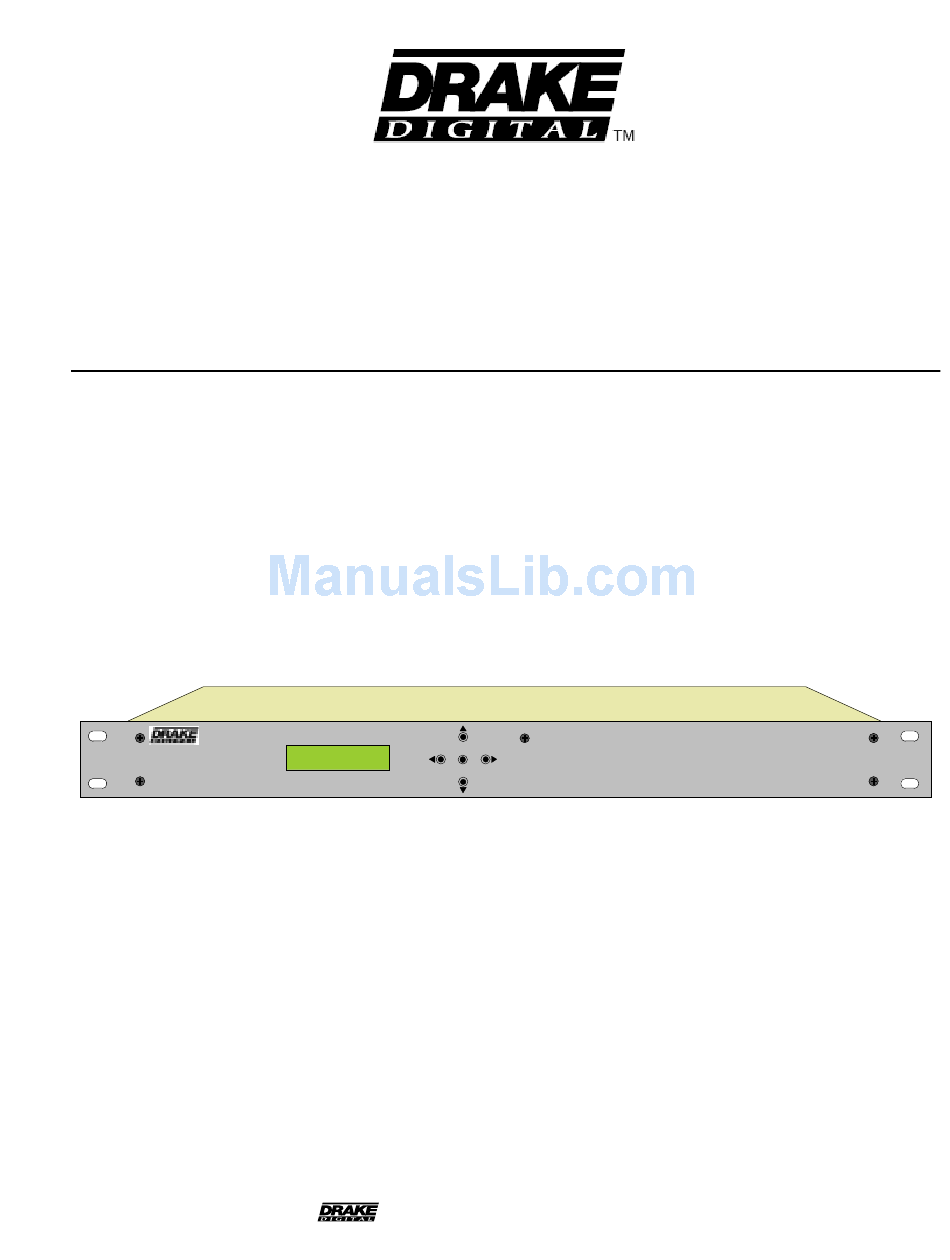

- Page 1 OBM100 QPSK Data Modulator Instruction Manual OBM100 QPSK DATA MODULATOR ENTER OBM100 1.4 DHCP.... is a registered trademark of the R.L. Drake Company © Copyright 2009 R.L. Drake LLC P/N: 3852496-01-2009 Printed in U.S.A.
- Page 2 Caution Statements WARNING: TO PREVENT FIRE OR A product and cart combination should be moved ELECTRICAL SHOCK DO NOT with care. Quick stops, excessive force and uneven EXPOSE TO RAIN OR MOISTURE surfaces may cause the product and cart combina- tion to overturn.
- Page 3 Important Safety Instructions 3 Consignes importantes de sécurité 3 1. Read Instructions—All the safety and operating Instructions should be 12. Grounding or Polarization—This product may be equipped with a read before the product is operated. polarized alternating-current line plug (a plug having one blade wider than the 1a.
- Page 4 Important Safety Instructions (cont.) Consignes importantes de sécurité 18. Object and Liquid Entry—Never push objects of any kind into this Ajuster seulement les commandes qui sont mentionnées dans le guide product through openings as they may touch dangerous voltage points or d'opération.
- Page 5 Table of Contents / Specifications TABLE OF CONTENTS SPECIFICATIONS Caution Statements QPSK OUTPUT Frequency Range: 70 MHz to 130 MHz, 50 kHz step Output Level: +50 dBmv minimum Important Safety Instructions Output Level Adjustment Range: 20 dB typical ± 2 dB Output Level Display Accuracy: Important Safety Instructions (cont) Output Level Stability:...
- Page 6 OUT OF BAND MODULATOR *0000000000000000* OBM100 DESCRIPTION The OBM100 is an out of band data modulator for use with After the headend PC constructs a complete data stream for the SCT2X4 headend satellite to cable transcoder. The the set tops, derived from the satellite delivered data and...
- Page 7 *0000000000000000* R1, RF OUTPUT – This type "F" connector is the high level If a network connection is used, the OBM100 must be (+52 dBmV), 70 to 129.95 MHz, output from the OBM100 connected to a firewall device that restricts the Ethernet upconverter section.
- Page 8 Note that depending upon certain settings, some screens are not The OBM100 has displays that show the number of frames needed and will be skipped. per second that are input from the ASI inputs and are being sent to the RF output.
- Page 9 “MAC” screen in normal mode. returned an ARP reply to the OBM 100. IP addr: This menu entry allows the user to set the OBM100 Dest addr: Set the IP address of the Headend Controller IP address if DHCP enable is turned off. This screen will not here.
- Page 10 12 CATV Channel Frequencies Service / If You Need To Call For Help SERVICE INFORMATION Should you want to return your unit for service, package You may contact the R.L. DRAKE Service Department for the unit carefully using the original carton or other suitable additional information or assistance by calling container.
- Page 11 Warranty Three Year Limited Warranty R.L. DRAKE LLC warrants to the original purchaser this product shall be free from defects in material or workmanship for three (3) years from the date of original purchase. During the warranty period the R.L. DRAKE LLC or an authorized Drake service facility will provide, free of charge, both parts and labor necessary to correct defects in material and workmanship.
- Page 12 R.L. Drake LLC 230 Industrial Drive Franklin, Ohio 45005 U.S.A. Customer Service and Parts Telephone: +1 (937) 746-6990 Telefax: +1 (937) 806-1576 World Wide Web Site: http://www.rldrake.com...
