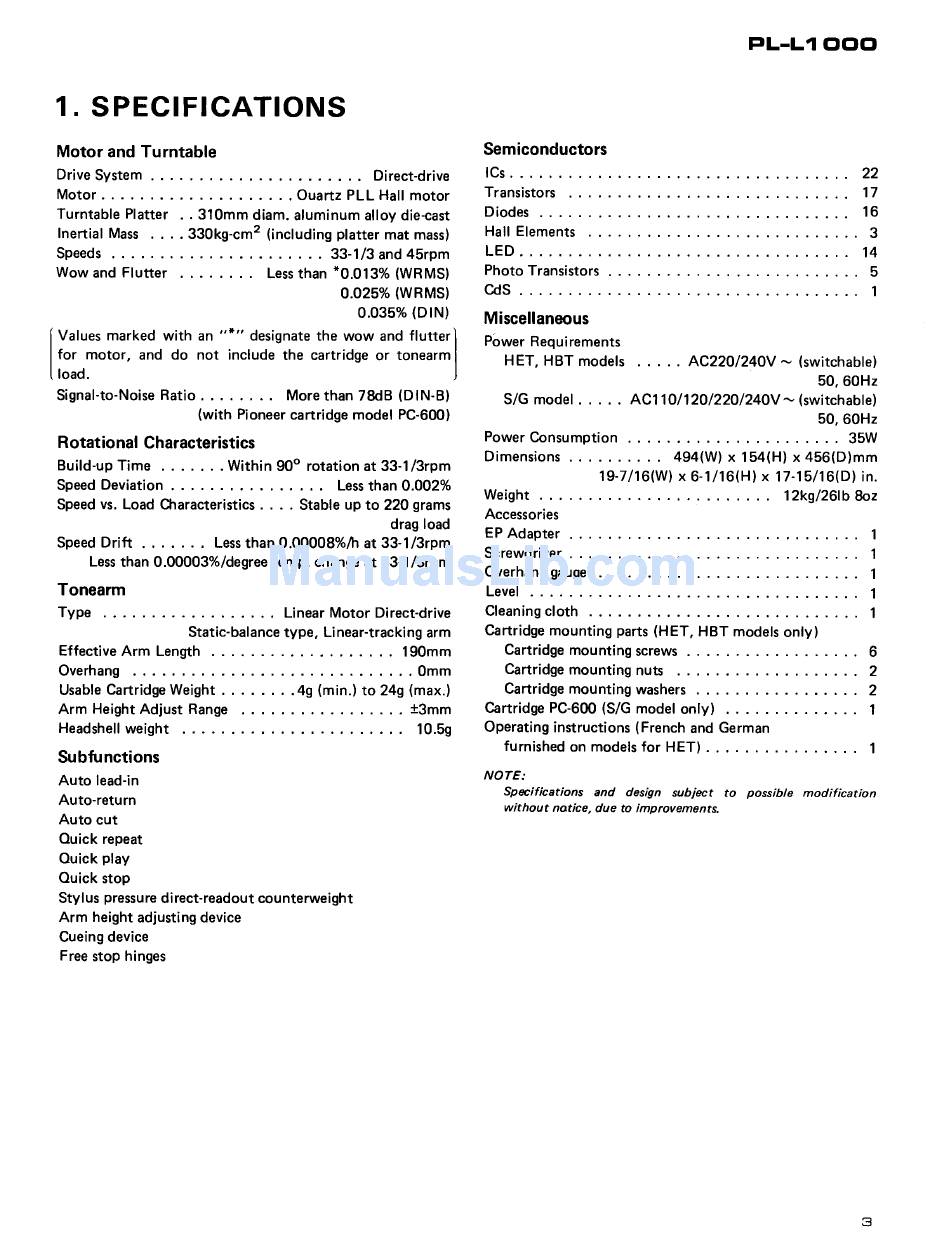

1 . S P E C I F I C A T I O N S
Motor and Turntable
D r i v e S y s t e m
. . D i r e c t - d r i v e
M o t o r .
. . . . O u a r t z P L L H a l l m o t o r
Turntable Platter . . 31Omm diam. aluminum alloy die-cast
Inertial Mass . . . . 330kg-cm2 (including platter mat mass)
Speeds
. 33-1/3 and 45rpm
Wow and Flutter
Less than
*0.013% (WRMS)
o.o25Yo (WRMS)
0 . 0 3 5 % ( D t N )
Values marked with an "*" designate the wow and flutter j
for motor, and do not include the cartridge or tonearm I
l o a d .
S i g n a l - t o - N o i s e R a t i o
M o r e t h a n 7 8 d B ( D l N - B )
(with Pioneer cartridge model PC-600)
Rotational Characteristics
Build-up Time . . Within 90o rotation at 33-1/3rpm
Speed Deviation . . .
Less than O.OO2TI
Speed vs. Load Characteristics . . . . Stable up to 220 grams
drag load
Speed Drift . . Less than 0.00008o/o/h at 33-1/3rpm
Less than 0.00003%/degree temp. change at 33-1/3rpm
Tonearm
T y p e . . . L i n e a r M o t o r D i r e c t - d r i v e
Static-balance type, Linear-tracking arm
E f f e c t i v e A r m L e n g t h
. . . . 1 9 0 m m
O v e r h a n g . . . . 0 m m
Usable Cartridge Weight
. . .49 (min.) to 249 (max,)
Arm Height Adjust Range . . t3mm
Headshell weight
10.5g
Subfunctions
Auto lead-in
Auto-return
Auto cut
Ouick repeat
Ouick play
Ouick stop
Styl us pressu re d i rect-readout counterwei ght
Arm height adjusting device
Cueing device
Free stop hinges
)
PL-L1 clclcl
Semiconductors
f C s . . . 2 2
Transistors 17
D i o d e s 1 6
H a l l E l e m e n t s . . .
. . . . 3
L E D . .
1 4
P h o t o T r a n s i s t o r s .
. . . . . 5
c d s . .
1
Miscellaneous
Power Requirements
H E T , H B T m o d e l s
. . . AC22O/24OV - (switchable)
5 0 , 6 0 H 2
S/G model
. . ACl 10/ 12O/22O/24OY - (switchable)
5 0 , 6 0 H 2
P o w e r C o n s u m p t i o n
. . 3 5 W
D i m e n s i o n s 4 9 4 ( W ) x 1 5 4 ( H ) x 4 5 6 ( D ) m m
1 9 - 7 1 1 6 ( W ) x 6 - 1 1 1 6 ( H l x 1 7 - 1 5 / 1 6 ( D ) i n .
Weight
12kg/261b fbz
Accessories
EP Adapter
1
Screwdriver 1
O v e r h a n g g a u g e .
. . . . . . 1
Level .
1
C l e a n i n g c l o t h .
. . . . . . .
1
Cartridge mounting parts (HET, HBT models only)
C a r t r i d g e m o u n t i n g s c r e w s
. . . 6
C a r t r i d g e m o u n t i n g n u t s
. . . 2
C a r t r i d g e m o u n t i n g w a s h e r s
. . . . . . .
2
Cartridge PC-600 (S/G model onty) .
1
Operating instructions (French and German
furnished on models for HET)
1
NOTE:
Specif ications
and design subject
to
possibte modif ication
without natice, due to improvements.
