TeleWell TW-5614UL V.92 & V.90 Modem
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TW-5614UL and is the answer not in the manual?

Questions and answers

Related Manuals for TeleWell TW-5614UL

Summary of Contents for TeleWell TW-5614UL

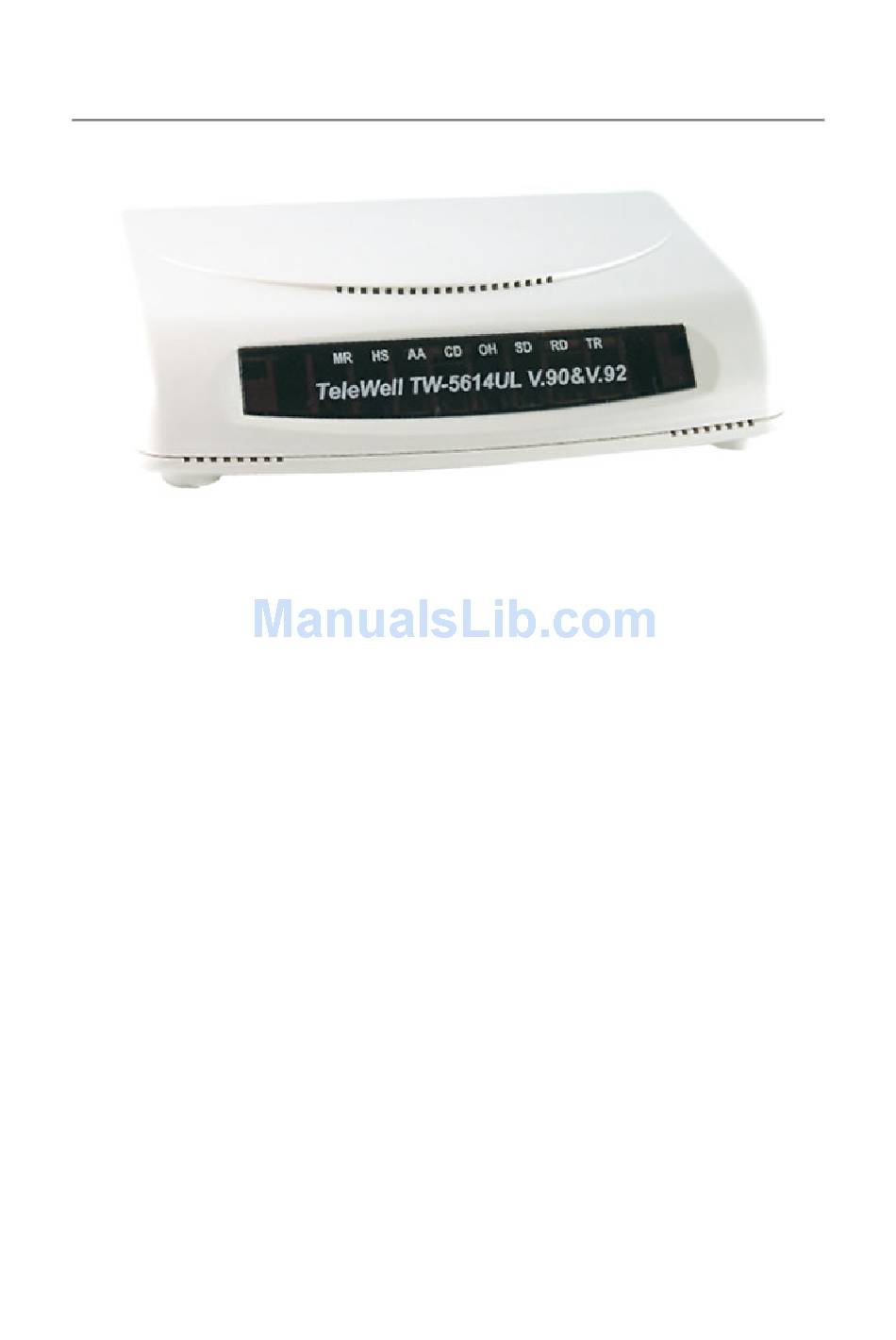

  • Page 1 TeleWell TW-5614UL V.92 & V.90 Modem User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction........................3 2. Features ........................... 3 3. The Appearance of External Modem ................4 3.1 External Modem Front Panel ................4 3.2 External Modem Back Panel ................5 4. Installing The External Modem ..................6 4.1 Checking Your Components ................. 6 4.2 What Else You Need .....................

  • Page 3: Introduction

    1. Introduction Congratulations on purchasing a state-of-the-art External Modem! Your External Modem incorporates the latest technological advancement for you to electronically communicate with other computers, information networks, fax machines or other External Modems. It embraces most of the industry and commercially popular standards to ensure compatibility with most equipment and application programs.

  • Page 4: The Appearance Of External Modem

    3. The Appearance of External Modem 3.1 External Modem Front Panel LED Character Indicators DESCRIPTION MR Modem Ready Lights when power is applied to the modem. Flashes when the modem is in test mode HS High Speed In Command mode, lights when DTE-to-modem speed is 4,800 bps or above.

  • Page 5: External Modem Back Panel

    3.2 External Modem Back Panel LINE Line RJ-11 jack PHONE Telephone RJ-11 jack Speaker mini-phone jack Microphone mini-phone jack SERIAL PORT Serial DB-9 female connector AC jack Power switch Power on/off...

  • Page 6: Installing The External Modem

    4. Installing The External Modem 4.1 Checking Your Components Unpack your External Modem and make sure you have the following items: The External Modem. A RS232C cable to connect your fax/modem to the serial port of Computer A modular telephone cable to connect your External Modem to the telephone line.

  • Page 7: Verifying Your Connection

    4.5 Verifying Your Connection Start a communication program and place the computer into terminal mode. Refer to your computer manual to find out the appropriate command to do so. Then use the following procedure to verify your installation: 1. Type AT[Enter] If your system is operating properly, your External Modem sends an OK response to your screen and waits for your next command.

  • Page 8: Configuring External Modem With Windows 95/98/Me/2000/Nt4.0

    1. Restart the computer after connecting the modem to PC. When Windows detects the modem, the message "This wizard searches for new drives for: TeleWell TW-5614UL V.92 Modem" is displayed. Click Next. 2. To search for the best drivers for your device, click Next.
  • Page 9 4. Windows will show the message ”Windows driver files search for the device “TeleWell TW-5614UL V.92 Modem” and the location of driver. Click Next. 5. Windows has finished installing the software. Click Finish to complete installation. 6. And then Windows will complete other installation automatically.
  • Page 10 Restart the computer after connecting modem to PC. When Windows detects the modem, the message "Windows has found the following new hardware: TeleWell TW-5614UL V.92 Modem" is displayed. Select “Automatic search for a better driver” or ”Specify the location of the driver”, then click Next.
  • Page 11 Windows 2000: 1. Restart the computer after connecting the modem to PC. When Windows detects the modem, the wizard will help you to install the new device. Click Next to begin installation. 2. Select “Search for a suitable driver for my device”. Then click Next. 3.
  • Page 12 4. Choose Browse to specify the location: F:\Drivers\Win2k. (F is your CD-ROM.) Then click OK. 5. Wizard found the correct driver for the new device. Then click Next. 6. To continue the installation, click Yes. 7. Windows has finished installing the software. Click Finish to complete installation.
  • Page 13 Windows NT4.0: Double click “Modems” from Start Setting Control Panel. Click Add to add a new modem. Check ”Don’t detect my modem; I will select it from a list” and then click Next. Click Have Disk.
  • Page 14 Indicating the path: F:\Drivers\WinNT (F is your CD-ROM) and then click OK. Select the model of your modem and then click Next. Select the COM port that you connect modem to your PC and then click Next. Windows has finished installing the software. Click Finish to complete installation.
  • Page 15 You can see the modem set up on your PC. Click Close to go into next step. 10. Click Yes to configure Dial-up Network. 11. Click Add to add the device you installed. 12. Select the correct device you want to use and then click OK. 13.
  • Page 16 14. Select the port usage and then click OK. 15. Click Network to select network configuration. 16. Select network configuration and then click OK. 17. Click Continue to go into next step 18. Click Yes to restart your PC.

  • Page 17: Tips On Configuring Your Communication Software

    4.8 Tips On Configuring Your Communication Software Your External Modem uses the most up-to-date industry and commercially popular standards to ensure functional compatibility with most communication software. During initial set-up of the communication software, it will normally prompt you to define the type of External Modem you are using. Following is a general guideline to the device type you should choose.

  • Page 18: Executing Commands

    5. Executing Commands If you will be using a communication software program to make data calls, you will probably not need to type commands, because your software program will handle these tasks for you. Similarly, you will probably not see the responses because your software program may intercept them.
  • Page 19 If a command requires a parameter such as 0 and 1, the parameter is identified as n in the left column and described in the right column. IMPORTANT: Each command, except for '+++' and 'A/', must be preceded by 'AT' and executed when you press the [Enter] key.

  • Page 20: S-Registers

    6. S-Registers Your External Modem has S-registers that affect various operating characteristics. The registers let you obtain information about the External Modem, and let you test the External Modem. Each S-Register has a factory-set value, which you can read or change to fit your particular requirements.
  • Page 21 Waiting Time before Carrier Detect The time to wait for a carrier from the remote modem before hanging up. Range 001-255 Default 060 (seconds,Country dependent) Pause Time For Dial Delay The time to pause for the pause dial modifier, "Comma". Range 000-255 Default 002 (seconds) Carrier Detect Response Time...

  • Page 22: Response Sets

    7. Response Sets When you send a command to your External Modem, it sends a response to your computer. For example, if you type AT[Enter], the External Modem should respond with OK. The External Modem gives out different responses for the different tasks that it performs. Communication software use these responses to control the flow of the program.
  • Page 23 CONNECT 7200 CONNECT 12000 CONNECT 14400 CONNECT 19200 CONNECT 38400 CONNECT 57600 CONNECT 115200 CONNECT 230400 CONNECT 75TX / 1200RX CONNECT 1200TX / 75RX DELAYED BLACKLISTED DATA CARRIER 300 CARRIER 1200/75 CARRIER 75/1200 CARRIER 1200 CARRIER 2400 CARRIER 4800 CARRIER 7200 CARRIER 9600 CARRIER 12000 CARRIER 14400...
  • Page 24 CARRIER 42000 CARRIER 44000 CARRIER 46000 CARRIER 48000 CARRIER 50000 CARRIER 52000 CARRIER 54000 CARRIER 56000 CONNECT 32000 CONNECT 34000 CONNECT 36000 CONNECT 38000 CONNECT 40000 CONNECT 42000 CONNECT 44000 CONNECT 46000 CONNECT 48000 CONNECT 50000 CONNECT 52000 CONNECT 54000 CONNECT 56000 FCERROR Following are descriptions of the different sets of External Modem...

  • Page 25: Specifications

    8. Specifications MODEM OPERATION Line Rate 0.3, 1.2, 2.4, 4.8, 7.2, 9.6, 12, 14.4, 16.8, 19.2, 21.6, 24, 26.4, 28.8, 31.2, 33.6, 56 Kbps DTE Rate 230.000 bps maximum Operation Half or full-duplex over 2-wire dial-up line, Asynchronous Linking Auto dial/answer, auto bauding, MNP10 auto fall-back/forward Flow Control RTS/CTS, XON/XOFF...

  • Page 26: Appendix A-1 Fcc Notice

    Appendix A-1 FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 27: Appendix A-2 Fcc Requirement

    Appendix A-2 FCC Requirement This equipment complies with Part 68 of the FCC Rules. On the base unit of this equipment is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. If requested, this information must be given to telephone company.

  • Page 28: Appendix A-3 Ce Mark Declaration

    Appendix A-3 CE Mark Declaration This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

  • Page 29: Appendix B: At Command

    Appendix B: AT Command Go off-hook and attempt to answer a call &Cn Control Carrier Detect (CD) Signal &C0 CD override &C1 Normal CD operations Dial DTMF digits 0 to 9 Pulse (rotary) dial Tone dial Wait for second dial tone Toggles calling tone enable/disable &Dn DTR Option &D0 Ignore an on-to-off transition of DTR...
