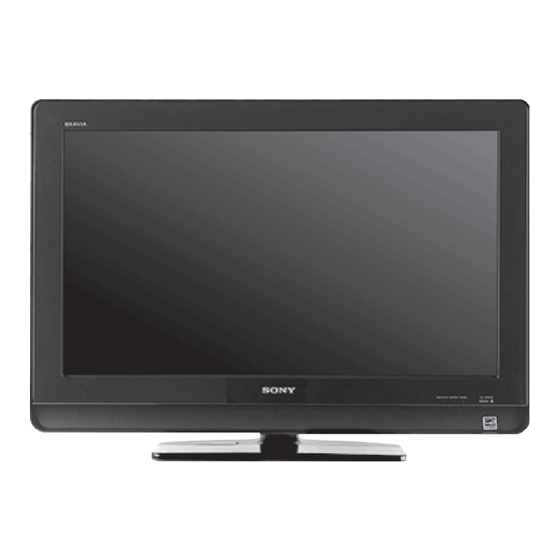

Sony KDL-32VL140 Service Manual

Lcd digital color television
Hide thumbs

Advertisement

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:

SERVICE MANUAL

MODEL NAME
KDL-32VL140
ORIGINAL MANUAL ISSUE DATE: 8/2008
:UPDATED ITEM
REVISION DATE
8/2008
8/2008
9-883-800-02
REMOTE COMMANDER
RM-YD023
SUBJECT
No revisions or updates are applicable at this time.
Updated reference to LCD Panels service manual. Replaced pages 52 & 53.
Removed Appendix B. Replaced page 3.
DESTINATION
US/CND
LCD DIGITAL COLOR TELEVISION
EX1
CHASSIS
