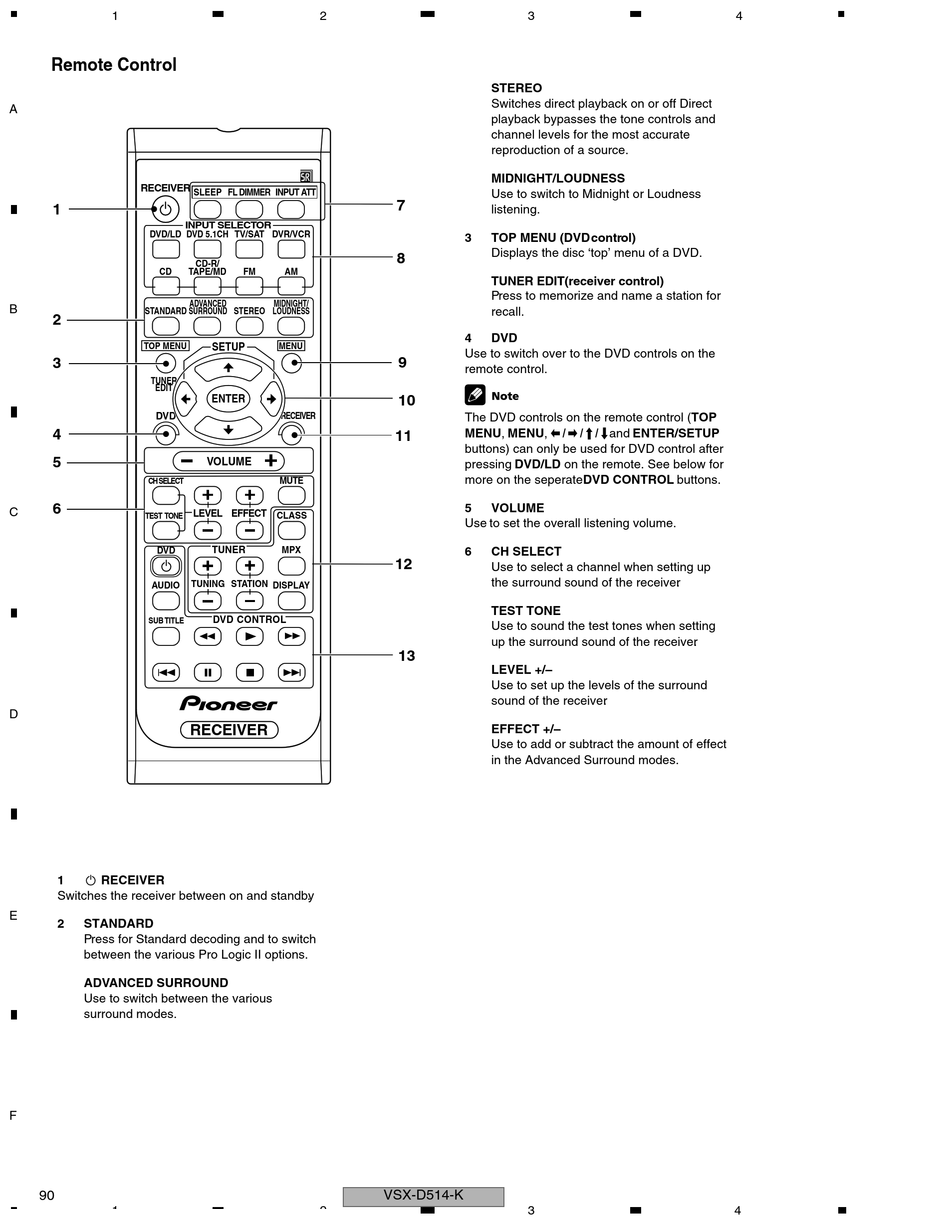

Remote Control

A
RECEIVER
1
INPUT SELECTOR
DVD/LD DVD 5.1CH
CD TAPE/MD
B
STANDARD SURROUND
2
TOP MENU
3
TUNER
EDIT
DVD
4
5
CH SELECT
6
C
TEST TONE
DVD
AUDIO
SUB TITLE
D
1 RECEIVER
Switches the receiver between on and standby .
E
2 STANDARD
Press for Standard decoding and to switch
between the various Pro Logic II options.
ADVANCED SURROUND
Use to switch between the various
surround modes.
F
90
1
2
SLEEP FL DIMMER INPUT ATT
TV/SAT DVR/VCR
CD-R/
FM AM
ADVANCED MIDNIGHT/
STEREO LOUDNESS
SETUP MENU
ENTER
RECEIVER
VOLUME
MUTE
LEVEL EFFECT
CLASS
TUNER
MPX
TUNING STATION
DISPLAY
DVD CONTROL
RECEIVER
2
3
STEREO
Switches direct playback on or off . Direct
playback bypasses the tone controls and
channel levels for the most accurate
reproduction of a source.
MIDNIGHT/LOUDNESS
Use to switch to Midnight or Loudness
7
listening.
3 TOP MENU (DVD control)
Displays the disc 'top' menu of a DVD.
8
TUNER EDIT(receiver control)
Press to memorize and name a station for
recall.
4 DVD
Use to switch over to the DVD controls on the
9
remote control.
10
The DVD controls on the remote control (TOP
MENU, MENU, | / \ / » / « and ENTER/SETUP
11
buttons) can only be used for DVD control after
pressing DVD/LD on the remote. See below for
more on the seperate DVD CONTROL buttons.
5 VOLUME
Use to set the overall listening volume.
6 CH SELECT
12
Use to select a channel when setting up
the surround sound of the receiver .
TEST TONE
Use to sound the test tones when setting
up the surround sound of the receiver .
13
LEVEL +/–
Use to set up the levels of the surround
sound of the receiver .
EFFECT +/–
Use to add or subtract the amount of effect
in the Advanced Surround modes.
VSX-D514-K
3
4
4
