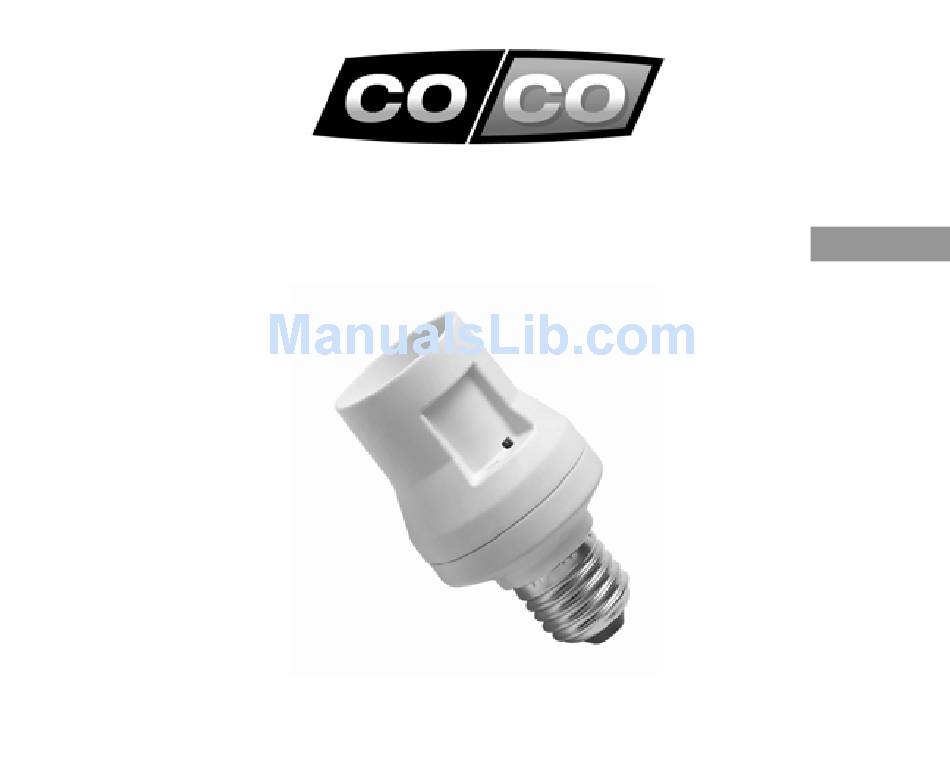

- Page 1 USER’S MANUAL version 1.1 English AFR-100 FITTING DIMMER/SWITCH...
- Page 2 AFR-100 FITTING DIMMER/SWITCH A: Fitting for incandescent lamp Picture of the AYCT-102 B: Search mode button C: Indicator (not included)
- Page 3 AFR-100 FITTING DIMMER/SWITCH [1] Screw the fitting receiver into the lamp holder. [2] Screw the incandescent bulb (type E27) into the fitting receiver. Not all types of incandescent bulbs and fittings are suitable for this product! Carefully read the Use an incandescent bulb with a maximum instructions under ‘Safety instructions’...
- Page 4 AFR-100 FITTING DIMMER/SWITCH [3] Press the search mode button with a pointed [4] Send an ‘on’ signal with the transmitter. The object. The indicator begins to flash. indicator stops flashing as soon as the connection is made. The search mode is activated for 15 seconds.
- Page 5 AFR-100 FITTING DIMMER/SWITCH [5] Press the ‘on’ button of the remote control 3 times to dim the light: (1) Press one time: The mains socket switch switches on. (2) Press again: The light intensity changes continuously. (3) Press a third time as soon as the desired light intensity is reached.
- Page 6 • The wireless system can be indefinitely expanded with other COCO remote controls and/or receivers. • Your COCO transmitter may have a special ‘group’ button with which multiple receivers can be switched on and off simultaneously. Repeat [3 - 4] and press the ‘group’ on button of the transmitter in step [4].
- Page 7 AFR-100 FITTING DIMMER/SWITCH B. Hanging lamp with open top and bottom: Use only low-energy light bulbs (max. 30 Watts). C. Standing lamp with closed top and bottom: Use incandescent or low-energy light bulbs (max. 60 Watts). D. Standing lamp with open top and bottom: Use incandescent bulbs rated at max. 100 Watts or low- energy bulbs rated at max.
- Page 8 If possible, submit this product for recycling after use. Do not dispose of the product with household trash. Warranty and copyright This device is covered by a 2-year warranty that begins on the day of purchase. Visit www.coco- technology.com/warranty for additional information. Reprinting of (portions of) this manual without...
- Page 9 P.O. BOX 126 4760 AC ZEVENBERGEN THE NETHERLANDS www.coco-technology.com Declaration of Conformity Pan-Trade International BV declares that the COCO product, model: type designation AFR-100 FITTING DIMMER/SWITCH item number 74028 is in compliance with the essential requirements and other relevant provisions of directives R&TTE 1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC, and is compatible with the standards EN 300 220- 1/3, EN 55015, EN 301 489-1/3 and EN 60950.
