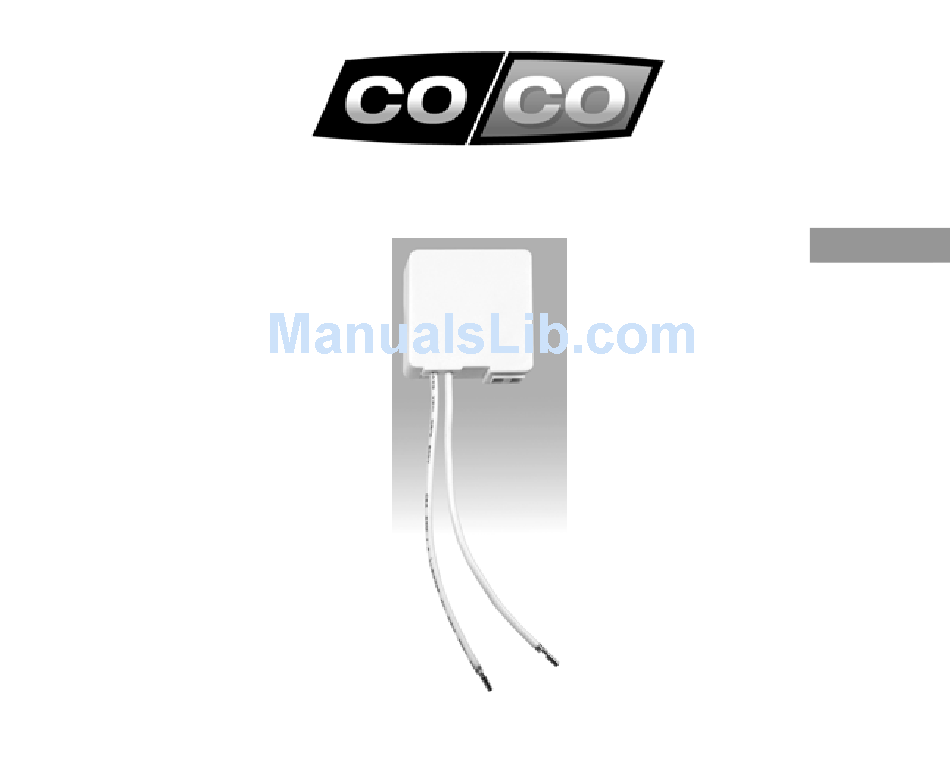

- Page 1 USER’S MANUAL version 1.1 English AWMR-210 MINI BUILT-IN DIMMER/SWITCH...
- Page 2 AWMR-210 MINI BUILT-IN DIMMER/SWITCH A: Search mode button B: Wall switch connector C: Lighting connector Picture of the AYCT-102 (not D: Indicator (voltage and connection status) included)
- Page 3 AWMR-210 MINI BUILT-IN DIMMER/SWITCH [1] Switch off the mains power. [2] Remove the existing switch from the wall.
- Page 4 AWMR-210 MINI BUILT-IN DIMMER/SWITCH 230 VAC [3] Disconnect the two power wires (brown and [4] Connect the 2 switch wires from the built-in black) from the wall switch. dimmer to the terminals of the wall switch. It does not matter which wire is connected to which terminal on the wall switch.
- Page 5 AWMR-210 MINI BUILT-IN DIMMER/SWITCH 230 VAC [5] Connect the wires you disconnected earlier to [6] Switch on the mains power. the built-in dimmer: [1] L: “hot wire" (brown, coming from the central junction box), [2] : “Switch The indicator of the built-in dimmer remains lit wire”...
- Page 6 AWMR-210 MINI BUILT-IN DIMMER/SWITCH [7] Briefly press the search mode button with a [8] Send an "on" signal with your transmitter; for pointed object. The indicator will begin to flash. example: press the desired on button of a remote control or wall switch. The indicator on the built-in dimmer stops flashing as soon as the connection There is now voltage on the wires.
- Page 7 AWMR-210 MINI BUILT-IN DIMMER/SWITCH [9] To confirm, the built-in dimmer switches on and [10] Re-install the wall switch in the wall box (in off two times. The code of the transmitter is stored which the dimmer is located). in the memory of the built-in dimmer.
- Page 8 AWMR-210 MINI BUILT-IN DIMMER/SWITCH [11] Press the on or off button on the transmitter to [12] Dimming: (1) Press once: light switches on. operate the switch. (2) Press again: The light intensity changes continuously. (3) Press a third time as soon as the desired light intensity has been reached.
- Page 9 • The wireless system can be expanded indefinitely with other COCO remote controls and/or receivers. • Your COCO transmitter may have a special "group" button with which you can simultaneously control multiple receivers with different numeric codes. Repeat [7 - 8] and press the "group" button on the transmitter during step [8].
- Page 10 Safety instructions • Wa rning: Even if the product is switched off, voltage may still be present at the switched socket! • Never use COCO products for life support systems or other applications in which equipment malfunctions can have life-threatening consequences.
- Page 11 If possible, submit this product for recycling after use. Do not dispose of the product with household trash. Warranty and copyright This device is covered by a two-year warranty that begins on the day of purchase. Visit www.coco- technology.com/warranty for additional information. Reprinting of (portions of) this manual without...
- Page 12 P.O. BOX 126 4760 AC ZEVENBERGEN THE NETHERLANDS www.coco-technology.com Declaration of Conformity Pan-Trade International BV declares that the COCO product, model: type designation AWMR-210 MINI BUILT-IN DIMMER/SWITCH item number 74009 is in compliance with the essential requirements and other relevant provisions of directives R&TTE 1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC and is compatible with the standards EN 300 220- 1/3, EN 55015, EN 301 489-1/3 and EN 60950.
