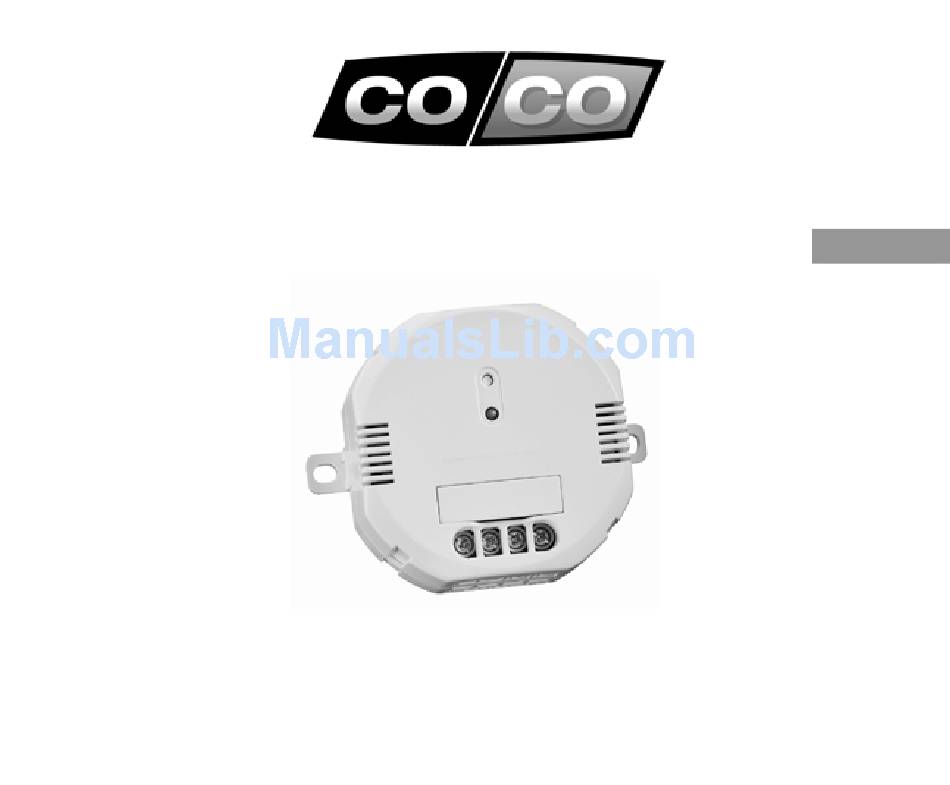

- Page 1 USER’S MANUAL version 1.1 English ACM-300 BUILT-IN DIMMER/SWITCH...
- Page 2 ACM-300 BUILT-IN DIMMER/SWITCH A: Search mode button B: Indicator (voltage and connection status) C: Fuse holder D: Terminal screws Picture of the AYCT-102 E: Mounting tabs (not included) F: Power connection...
- Page 3 ACM-300 BUILT-IN DIMMER/SWITCH [1] Switch off the mains power (in meter [2A] Wall installation: Remove the wires connected cupboard). to the existing simplex switch. Continue with step [3]. The existing wall switch is replaced by this product and is no longer used!
- Page 4 ACM-300 BUILT-IN DIMMER/SWITCH [3] Connect the two disconnected wires to the two [4] Connect a (blue) neutral wire from the wall to leftmost terminals: [1] the (brown) “hot wire”, [2] one of the two rightmost terminals [3] or [4]. It does the (black) “switch wire”.
- Page 5 ACM-300 BUILT-IN DIMMER/SWITCH [5] Attach the disconnected wires from the ceiling [6] Attach the two wires from the lighting to the two to the two outermost terminals (IN): [1] the (brown) innermost connections (OUT) [2] and [3]. Tighten “hot wire”, [4] the (blue) “neutral wire”. Tighten the the clamping screws.
- Page 6 ACM-300 BUILT-IN DIMMER/SWITCH [7] Switch on the mains power (in the meter [8] Briefly press the search mode button with a cupboard). The indicator on the dimmer remains lit pointed object. The indicator will begin to flash. as long as there is power on the circuit.
- Page 7 [9] Send an "on" signal with the transmitter; for [10] To confirm, the built-in dimmer switches on example: Press the desired on button of a COCO and off two times. The code of the transmitter is remote control or wall switch, or activate a COCO stored in the memory of the receiver.
- Page 8 ACM-300 BUILT-IN DIMMER/SWITCH [11A] Save the two screws so the built-in dimmer [12A] Cover the junction box with a blind cover can be mounted in the junction box if there is (available from your electrical retailer) once the enough room.
- Page 9 ACM-300 BUILT-IN DIMMER/SWITCH [13] Press the on button on a remote control 3 times to dim the connected light: (1) Press one time: The dimmer switches on. (2) Press again: The light intensity changes continuously. (3) Press a third time once the desired light intensity is reached.
- Page 10 • The wireless system can be expanded indefinitely with other COCO remote controls and/or receivers. • Your COCO transmitter may have a special "group" button with which multiple receivers with different settings can nonetheless be controlled simultaneously. Repeat [8 - 10] and press the "group" button on the transmitter during step [9].
- Page 11 If the transformer hums, this means that it is not suitable for use with the COCO dimmer. If in doubt, consult your lighting supplier or installer. • This product is protected with a 20 mm fuse rated at 1.6 A (T1.6A, H250V). An equivalent fuse must be used during replacement.
- Page 12 ACM-300 BUILT-IN DIMMER/SWITCH Warranty and copyright This device is covered by a 2-year warranty that begins on the day of purchase. Visit www.coco- technology.com/warranty for additional information. Reprinting of (portions of) this manual without permission from Pan-Trade International B.V. is expressly prohibited.
- Page 13 P.O. BOX 126 4760 AC ZEVENBERGEN THE NETHERLANDS www.coco-technology.com Declaration of Conformity Pan-Trade International BV declares that the COCO product, model: type designation AC-300 BUILT-IN DIMMER/SWITCH item number 74014 is in compliance with the essential requirements and other relevant provisions of directives R&TTE 1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC and is compatible with the standards EN 300 220- 1/3, EN 55015, EN 301 489-1/3 and EN 60950.
