PRO SOUND
COMES HOME
®
Thank you for purchasing a JBL AVR580. This Quick-Start Guide will help
you with a basic system installation. For detailed information on any step,
please refer to the Owner's Manual pages referenced in this guide. We
strongly recommend that you read the Owner's Manual for complete details
on how to install, configure and operate the AVR580, as well as for the
important safety information it contains.

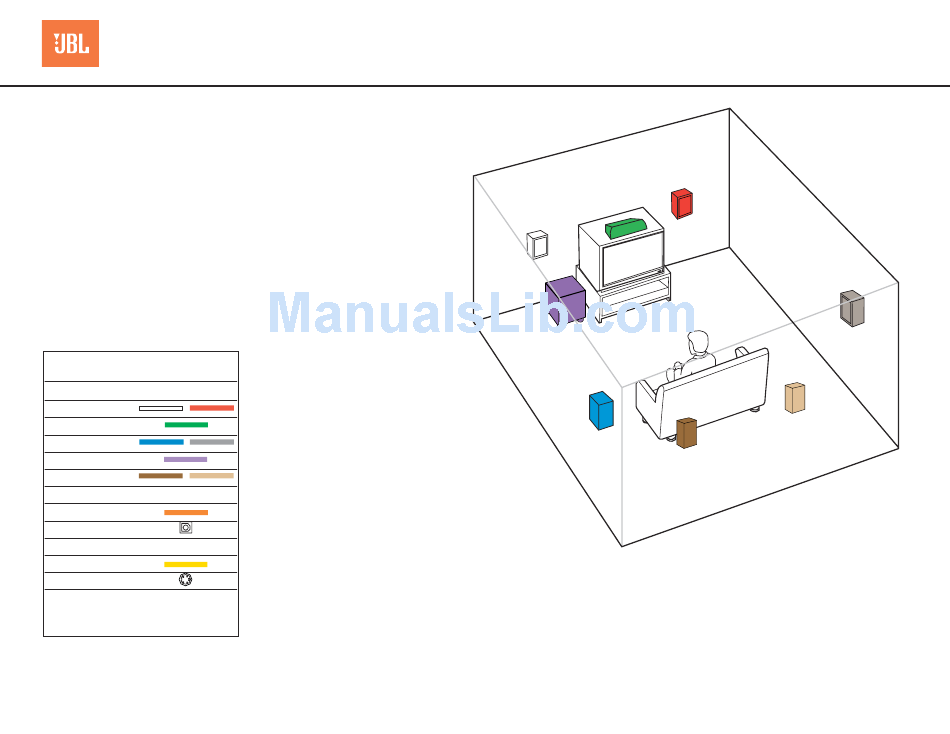

FIGURE 1 – SPEAKER
PLACEMENT
The colors shown for each speaker correspond to
the matching output terminal connection on the
back of the AVR580 (see page 9).
CONNECTIONS COLOR
GUIDE
Audio Connections
Left
Right
Front
Center
Surround
Subwoofer
Surround Back
Digital Audio Connections
Coax
Optical
Composite
S-Video
Match the colored jacks on the AVR580 to the appropriate
jacks on your source equipment or speakers. The colors are
standardized, but not all equipment or connectors use them.
™
AVR580 QUICK-START GUIDE
FRONT
RIGHT
SPEAKER
CENTER
SPEAKER
(Green)
FRONT
LEFT
SPEAKER
(Red)
(White)
SUBWOOFER
(Purple)
SURROUND
LEFT
SPEAKER
(Blue)
SURROUND
BACK
LEFT
SPEAKER
(Brown)
SURROUND
RIGHT
SPEAKER
(Gray)
SURROUND
BACK
RIGHT
SPEAKER
(Tan)
Step 1. Place your speakers in the listening room
(see page 20).
SPEAKER PLACEMENT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JBL AVR525
Summary of Contents for JBL AVR525
- Page 1 ™ COMES HOME ® Thank you for purchasing a JBL AVR580. This Quick-Start Guide will help you with a basic system installation. For detailed information on any step, please refer to the Owner’s Manual pages referenced in this guide. We strongly recommend that you read the Owner’s Manual for complete details...
- Page 2 SUBWOOFER LEFT SPEAKER Step 2. Connect the speakers to the receiver: red (+) on speaker to colored (+) on receiver and black (–) to black (–) (see page 17). Step 3. Connect the Subwoofer Pre-Out jack to the Line-In jack on your subwoofer.
- Page 3 (see page 35). Step 7. Depending on the electrical requirements in your area, you may need to contact your JBL dealer to obtain the correct power cord. Plug all components into AC power outlets. Basic Receiver Configuration Step 8.
- Page 4 VCR (Video 1) Video In/Rec Out/Play Component Video Video S-Video Optical Coax Device Connection Options : Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Video 4, Coax 3 and Optical 3 inputs are on the front panel of the receiver. Device Input Name Audio Input Connections...
