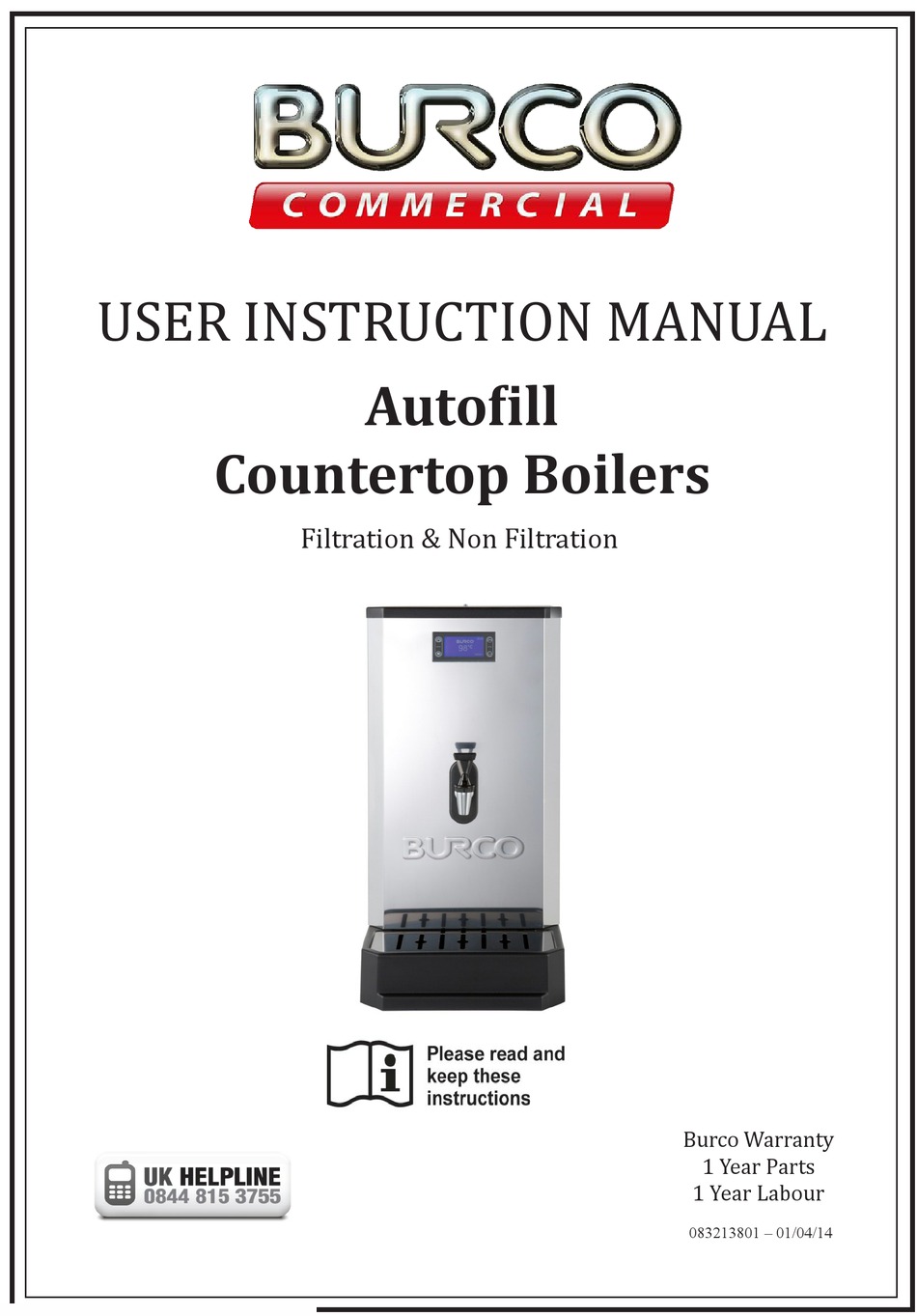

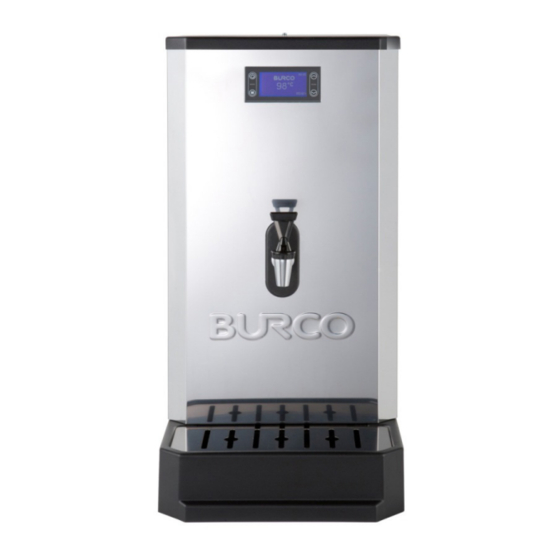

- Page 1 USER INSTRUCTION MANUAL Autofill Countertop Boilers Filtration & Non Filtration Burco Warranty 1 Year Parts 1 Year Labour 083213801 – 01/04/14...
-
Page 3: Table Of Contents
Contents About your Product My Product (please complete this section) page 3 Introduction page 4 Warranty page 4 Important Information page 5 Installation page 5 Before Connection to the Power Supply page 7 Water Connection page 7 Electrical Connection page 7 Overflow & Drainage page 8 Other Safety Considerations... -
Page 4: My Product (Please Complete This Section)
1.0 - About your Product My Product We strongly recommend that you spend some time to fill in the information below and keep it in a safe Please complete the form below: place. This will save you time if you need to contact our After Sales team. Important: The serial number can be found on the back of your appliance. Model Number: Product Code: Serial Number: Date of Purchase: Purchased from: .................... -
Page 5: Introduction
To ensure you obtain full benefits from your new appliance: • If you are unsure of any aspect of the installation, use or performance of your appliance, please contact our After Sales team on 0844 815 3755. Warranty Your Burco water boiler comes with a 1 year parts and 1 year labour warranty from the date of pur- How to activate your Warranty: chase. Registering your product and activating your Burco warranty couldn’t be easier. Do not hesitate to call 0844 815 3755, and after choosing the After Sales option, one of our advisors will be happy to assist you with this. -
Page 6: Important Information
WARNING: Danger of personal injury. Important: Damage to the appliance. Burco products are intended for commercial use as detailed in these instructions. Burco has a policy of continuous improvement in product quality and design. The Company, therefore, reserves the right to change the specification of its models at any time. - Page 7 • Do not let the lead run across an open space e.g. between a low socket and table. • Do not place the auto fill water boiler where the mains lead could fall into a sink. • Do not continue to use the water boiler if a fault is indicated. Refer to Fault codes section of the handbook. • Do not use the boiler if it has been damaged in any way. • Do not use accessories or attachments which Burco have not recommended as they can cause hazards. • Always switch off, empty and disconnect the auto fill water boiler before moving the unit. keep hands away from any steam. Be particularly careful not to touch any hot surfaces, especially WARNING: To avoid being scalded when the water boiler is in operation or has been switched off, when descaling the product. • The water boiler is only to be installed in locations where it is overseen and maintenance is Product Safety: restricted to trained personnel.
-
Page 8: Before Connection To The Power Supply
EARTH - E BLUE wire NEUTRAL - N BROWN wire LIVE - L cord must be used. The supply cord may become warm when the appliance is in use. Important: The supply cord on the 3kW appliance is of a special type. If replaced, only a Burco supply If you are unsure of any aspect of the installation, use or performance of your appliance, please contact the after sales number shown on page 23. 6kW appliances are supplied with an internal terminal block for connection to the main power supply. This must be connected using suitable flexible cable. The supply end of the cord must be fitted with an easily accessible, all pole disconnection isolator switch, with a minimum 3mm contact separation. For safety regulations the means of disconnection must be accessible after installation. -
Page 9: Overflow & Drainage
Note: There may be some steam emissions from the vent at the base of the appliance during the initial fill stages but the steam emissions will lessen as the volume of water increases in the tank. As an alter- native the internal flexible hose may be redirected. See notes on Overflow and Drainage in the Installa- tion section. no circumstances should this flexible hose become blocked or restricted in any way. WARNING: The flexible hose connected from the over flow also acts as a vent for the appliance. Under Other Safety Considerations • Disconnect the appliance from the mains supply when cleaning or for maintenance. • Keep the exterior surfaces of the boiler clean and dry at all times. • Do not touch hot surfaces. Always use handles or knobs. • Do not immerse the appliance in water or other liquid and always ensure the electrical connec- tions are kept dry. • Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Ring the helpline number for advice on examination and repair. • The use of non-Burco attachments or tools may cause fire, electric shock or injury and will invalidate warranty. • Do not use abrasive cleaners on the outside of the appliance, as they may scratch the surface. Only clean with a soft damp cloth. • Do not use the appliance for anything other than its intended purpose. www.gdpacatering.com... - Page 10 • Scale formation within hot water appliances is problematic and more so in hard water areas. Damage to the appliance caused by excessive scale build up, may invalidate the warranty - see notes on de-scaling. • Use only the supplied parts with the appliance. Introducing foreign components not approved by the Manufacturer may cause tainting of the water and may also invalidate your warranty. • Do not place foreign objects in the tank of the appliance.
-
Page 11: Product Specification
Capacity (Litres) Weight (Kg) 11.4 11.6 Ambient Temp 5°C – 30°C Water Inlet Pressure 0.1 – 0.8(Mpa) Voltage 220-240V (50/60Hz) Power Rating Burco automatic fill water boilers are designed for continuous operation and should only be switched Parts Diagram off for the purpose of maintenance or emergency. The 3kW models is supplied with a BS 1363 type plug and lead fitted with a 13Amp fuse as standard. Removable lid for descaling On/Off switch Dispensing Screen Hose for connection to... -
Page 12: User Guide
2.0 - User Guide Screen Control (filtration models) Temperature indicator - Showing the set temperature Clock / Time Power button Scroll buttons Menu / Move on button Filter life Status information - Status indicator - Described fault, indicates when t o change lter Fault, Heating, Ready, ECO Screen Control (non-filtration models) Power button... -
Page 13: Connections & Overflow
INVALIDATE YOUR WARRANTY. WARNING: FAILURE TO CLEAN & DESCALE YOUR BURCO WATER BOILER ON A REGLAR BASIS WILL Connections & Overflow Connection to a water supply: The blue pipe connects to the grey fitting which can be found underneath the appliance. The grey fit- ting can be unscrewed, and the blue pipe slots into it. Then screws back onto the appliance. The other end of the blue pipe can be fitted with the same type of grey fitting, which is connected to Connection to mains water supply: your main water supply. Overflow: If the appliance has an overflow, the water will be placed into the drip tray. The water in the drip tray can then be emptied out into a drain. Check and empty the drip tray on a regular basis. www.gdpacatering.com... -
Page 14: Operating The Appliance
To start the boiler, plug it in and turn on the mains power then hold the Power button for 10 seconds. Ensure boiler is connected to the mains water supply. Operating the Appliance The LCD screen will illuminate with the Burco Screen Display(filtration models): brand logo. The default temperature and the time will flash waiting to be set. The hour figure will flash. Use the scroll buttons and press MENU to set when the correct time is shown. To change default temperature, press UP/DOWN arrows to adjust to required temp. - Page 15 ESPAÑOL LANGUAGE HOLANDÈS ECO MODE ITALIANO When no water is drawn from the boiler in 2 hours, the eco mode is engaged. The backlight turns Eco Mode (Auto Fill Only): off and the only data displayed is the Burco logo along with the time and the status indicator. Water should be drawn off to resume normal operation. To set the Eco mode timer, simply scroll down to ‘ON’ to set the desired time. Once you are happy with the time that has been set, press the menu button to confirm this. This will then take you to ‘OFF’, where you can then set the time that you want the Eco mode to finish. If you want to turn the Eco mode off altogether, simply scroll down and select ‘OFF’. SET CLOCK SCREEN SETTINGS LANGUAGE...
- Page 16 HEATING will flash. At temperature – READY is shown. Heating up: Once the INITIAL SET UP is complete, the filling Filling: process will start. The LCD Screen will show the word FILLING. After the filling is complete, the heating will start until it reaches the set temperature. The LCD Screen will show the word HEATING. During operation, the bars fill to represent filter usage. Once exhausted, all the bars are solid and the Filter Life (Auto Fill Only): fault code for changing the filter is displayed. The unit should be powered down. Filters replaced and filter counter reset (refer to replacement parts). To power down the product, the STANDBY button should Power Down: be held when on the normal operation screen for 10 seconds. The shutdown screen will appear and using the scroll buttons, ‘Yes’ should be selected by pressing MENU. The unit will then shutdown. www.gdpacatering.com...
-
Page 17: After Use
When tilting the tap towards you, the tap holds into a locked Tap function: Hold to position and you will receive water from the tap until the receive hot tap is moved back into its original position. When tilting the water tap the opposite way, the water will flow out the same as in Locked the lock position but the user will have to hold the tap to receive any water. This will not put the tap in the locked position. To dispense water on the 10L push button model, place cup under the plastic housing, press and hold Push Button Dispense: the Black button on the front of appliance. Water will be dispensed whilst the button is pressed. www.gdpacatering.com... -
Page 18: Cleaning Instructions
3.0 - Maintenance & Spare Parts before replacing any parts. WARNING: Turn off the power supply and remove the plug when not in use, cleaning, descaling or This appliance shall be operated in ambient temperatures between 5-30°C. Do not allow your appliance to freeze. If this happens, do not operate the appliance and contact the manufacturer. Cleaning Instructions We recommend cleaning your water boiler on a regular basis. Failure to do this may result in the appli- ance not operating to its full potential and could invalidate your warranty. cool. -
Page 19: Descaling
Descaling The descaling procedure must be performed by trained personnel as it requires the removal of pan- els from the boiler and access to live electrical components. Always use a descaling agent suitable for stainless steel. 1. Isolate the boiler from electrical supply. 2. Allow the water to cool approximately 60 3. -
Page 20: Disposal
At the end of the electrical products useful life it should not be disposed of with household waste. Disposal Please recycle where facilities exist. Check with your local authority for recycling advice in your coun- try. Please dispose of appliance in accordance with the WEEE Directive. Replacement Parts When the change filter warning is displayed, power down the unit and remove the drip tray. Twist the filter anti-clockwise and remove. A small amount of water may be released. Insert a new filter and twist clockwise to lock in place. Replace drip tray and power up unit. . To reset the filter life, hold and press the up/down arrows for 5 seconds until the appliance beeps Important: Genuine replacement Burco parts must be fitted. If generic non-Burco parts are fitted, you may prevent your appliance from operating safely and in the most efficient manner and also invalidate your warranty. A few examples include: • Element • Solenoid Valve •... - Page 21 4.0 – Troubleshooting Fault Codes Your boiler is fitted with a fault system that is able to detect fault conditions. Some of the conditions are less serious and the boiler will continue to operate normally, while other faults are more serious and will disable the appliance. Before calling the service line, make sure that the appliance is switched off at the main supply. Draw off a small amount of after and then switch back on after 10 minutes. If the fault continues, please call the service line for advice. QR codes that appear on the screen can be scanned using an iPhone, Android and Windows device, which will take you to the GDPA website. DESCALE is displayed when the water Descale the boiler with a commercial des- Causes Action boiler detects that it has scaled up. caler that is suitable for stainless steel (see descale section). The boiler could have also overfilled. Check the mains water solenoid. NOT HEATING is displayed when the water If the problem persists, call the service is not reaching the required temperature, line.
-
Page 22: Faq's
All new appliances must be heated and drained to sanitise. 6. The water in my appliance has a strange taste? a. Your Burco appliance comes with a 1 year parts and 1 year labour warranty. Please see 7. What Warranty does my water boiler have? the ‘Warranty’ section on page 4 for details. -
Page 23: Notes & Comments
Notes & Comments www.gdpacatering.com... -
Page 24: Contact Information
Sales Orders: email: sales@gdpa.co.uk tel: 0844 815 3755 (opt. 1) fax: 0844 248 4123 • After Sales: email: info@gdpa.co.uk tel: 0844 815 3755 (opt. 2) fax: 0844 248 4123 Spare Parts: email: info@gdpa.co.uk tel: 0844 815 3755 (Opt. 3) fax: 0844 248 4123 Marketing Enquiries: email: marketing@gdpa.co.uk tel: 0844 815 3755 (Opt. 5) fax: 0844 248 4123 For all International (Non-UK) Enquiries: email: info@gdpa.co.uk tel: +44 151 493 3281 fax:...
